HMC7992

RECOMMENDED FOR NEW DESIGNS

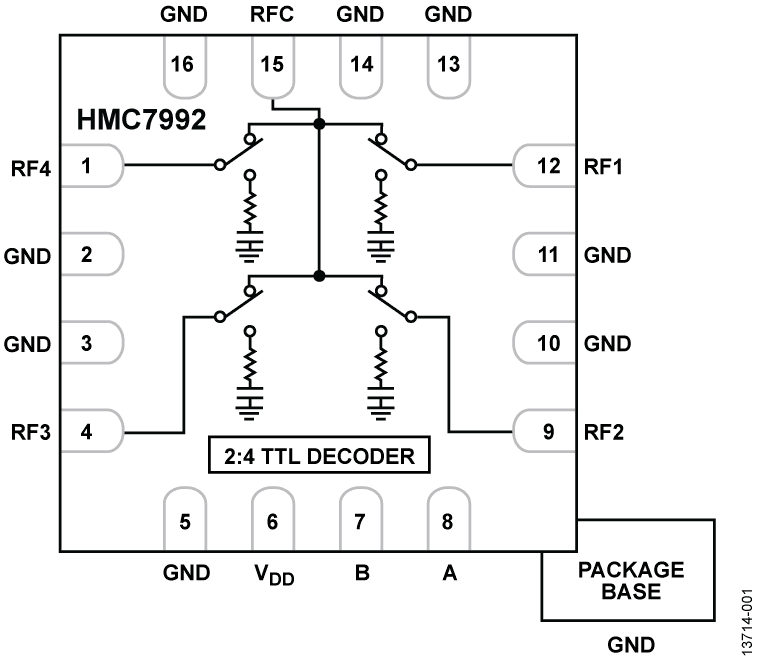

Nonreflective, Silicon SP4T Switch, 0.1 GHz to 6.0 GHz

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

Nonreflective, 50 Ω design
High isolation: 45 dB typical at 2 GHz
Low insertion loss: 0.6 dB at 2 GHz
High power handling
- 33 dBm through path
- 27 dBm terminated path
High linearity
- 1 dB compression (P1dB): 35 dBm typical
- Input third-order intercept (IIP3): 58 dBm typical

ESD rating: 2 kV human body model (HBM), Class 2
Single positive supply: 3.3 V to 5.0 V

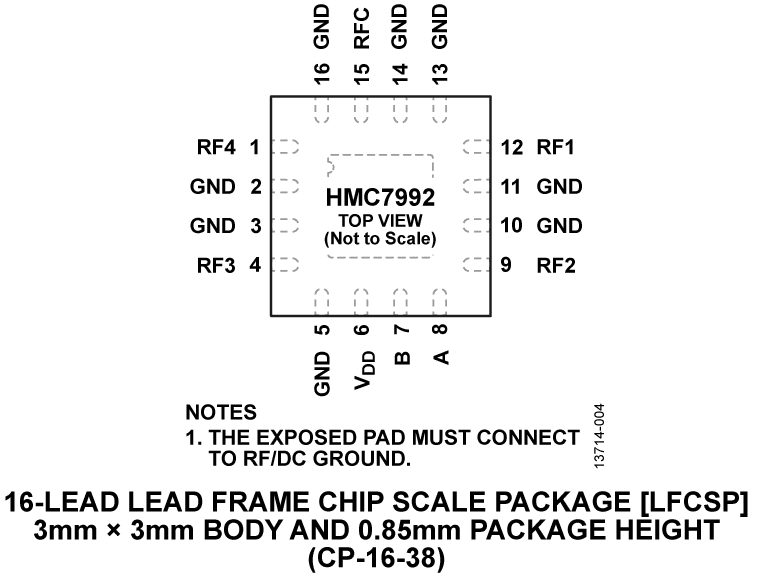

Standard TTL-, CMOS-, and 1.8 V-compatible control 16-lead, 3 mm × 3 mm LFCSP package (9 mm²)
Pin compatible with the HMC241ALP3E

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC7992: Nonreflective, Silicon SP4T Switch, 0.1 GHz to 6.0 GHz Data Sheet (Rev.A) 01/19/2016

Technical Articles 2

Design the Best Front End for UHF Partial Discharge Online Monitoring Systems 10/01/2021

RF and MW Control Products in Silicon 03/01/2016

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC7992LP3DE	16-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC7992LP3DETR	16-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 19, 2022 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products
		PCN22_0048_Form Material_Report Qualification Results Summary Detailed Change Description
HMC7992LP3DE	PRODUCTION
HMC7992LP3DETR	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
