HMC598

RECOMMENDED FOR NEW DESIGNS

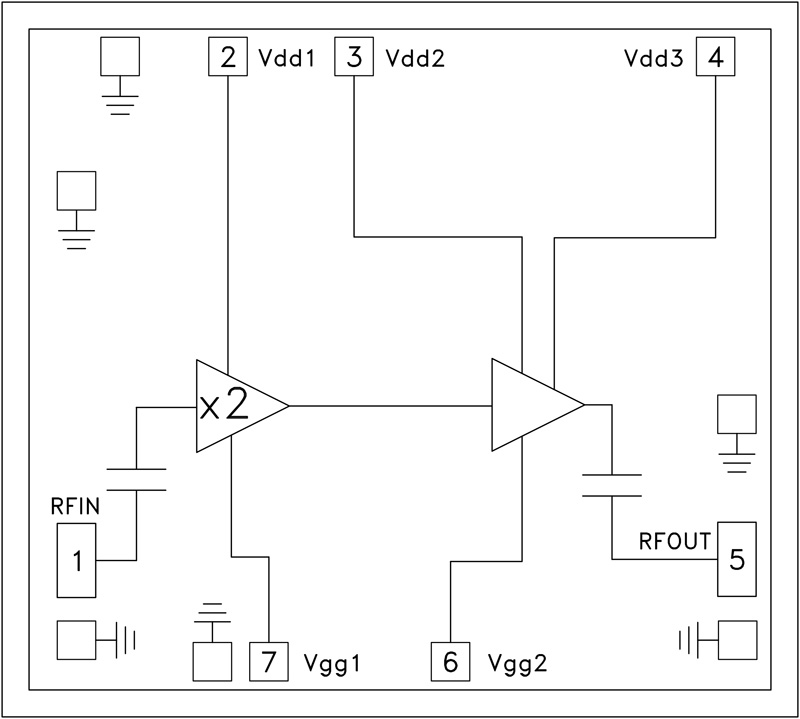

x2 Active Multiplier Chip, 22 - 46 GHz Fout

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

High Output Power: +15 dBm
Low Input Power Drive: 0 to +6 dBm

Fo Isolation: 25 dBc @ Fout = 30 GHz
Die Size: 2.07 × 1.86 × 0.1 mm

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC598 Data Sheet 04/22/2015

Application Note 2

MMIC Amplifier Biasing Procedure Application Note 11/11/2015

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020
