HMC1118
RECOMMENDED FOR NEW DESIGNSHigh Isolation, Silicon SPDT, Nonreflective Switch, 9 kHz to 13.0 GHz
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- Nonreflective 50 Ω design
- Positive control: 0 V/3.3 V
- Low insertion loss: 0.68 dB at 8.0 GHz
- High isolation: 48 dB at 8.0 GHz
- High power handling:
- 35 dBm through path
- 27 dBm terminated path
- High linearity:
- 1 dB compression (P1dB): 37 dBm typical
- Input third-order intercept (IIP3): 62 dBm typical
- ESD rating: 2kV human body model (HBM)

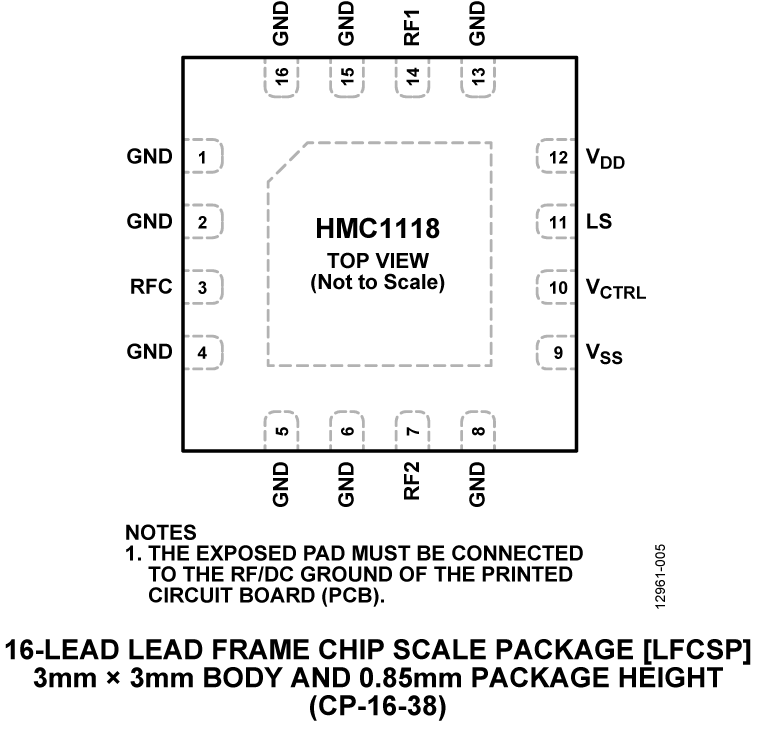

- 3 x 3 mm, 16-Lead LFCSP Package
- No low frequency spurious
- Settling time (0.05 dB margin of final RFOUT): 7.5 μs
The HMC1118 is a general-purpose, broadband, nonreflective single-pole, double-throw (SPDT) switch in a LFCSP surface mount package. Covering the 9 kHz to 13.0 GHz range, the switch offers high isolation and low insertion loss. The switch features >48 dB isolation, 0.68 dB insertion loss up to 8.0 GHz, and a 7.5 μs settling time of 0.05 dB margin of final RFOUT. The switch operates using positive control voltage logic lines of +3.3 V and 0 V and requires +3.3 V and −2.5 V supplies. The HMC1118 can cover the same operating frequency range with a single positive supply voltage applied and the negative supply voltage (VSS) tied to ground and still maintaining good power handling performance. The HMC1118 is packaged in a 3 mm × 3 mm, surface mount LFCSP package.
Applications
- Test instrumentation
- Microwave radios and very small aperture terminals (VSATs)
- Military radios, radars, and electronic counter measures (ECMs)
- Fiber optics and broadband telecommunications
Documentation
Data Sheet 1
Application Note 1
Technical Articles 1
Product Highlight 1
Video 4
Product Selection Guide 1
Product Highlight 1
Webcast 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC1118LP3DE | 16-Lead LFCSP (3mm x 3mm w/ EP) | ||
| HMC1118LP3DETR | 16-Lead LFCSP (3mm x 3mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Apr 19, 2022 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products |
||
| HMC1118LP3DE | PRODUCTION | |
| HMC1118LP3DETR | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| ADRF5019 | RECOMMENDED FOR NEW DESIGNS | Silicon, SPDT Switch, Nonreflective, 100 MHz to 13 GHz |
Tools & Simulations
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Open ToolS-Parameter 1
Evaluation Kits
HMC1118 Evaluation Board
