EVAL-ADUM540X

Obsolete

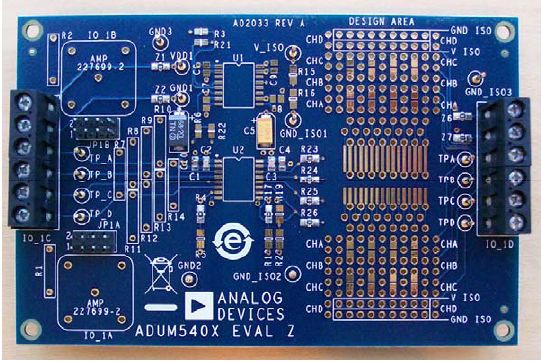

Evaluation Board for the ADuM5401-ADuM5404 Quad Isolators with isoPower

Viewing:

Part Details

Convenient connections for power through screw terminal blocks
Add-on BNC connector for 50 Ω signal sources
On-board signal routing
Support for signal wrap back

Simple signal paths to reduce transmission line effects
Pull-up and pull-down provided for control lines
Support for isoPower
Project area that supports surface-mount and through hole devices

Suggested Replacement Parts

Documentation

Application Note 7

AN-770: iCoupler^® Isolation in CAN Bus Applications (Rev.0) 11/01/2006

AN-740: iCoupler^® Isolation in RS-232 Applications (Rev.A) 11/01/2006

AN-793: ESD/Latch-Up Considerations with iCoupler^® Isolation Products (Rev.A) 11/01/2006

AN-825: Power Supply Considerations in iCoupler^® Isolation Products (Rev.0) 11/01/2006

AN-727: iCoupler® Isolation in RS-485 Applications 11/03/2020

Technical Articles 2

NAppkin Note: Lowering the Power of the ADuM524x 12/10/2010

Inside iCoupler^® Technology:ADuM347x PWM Controller and Transformer Driver with Quad-Channel Isolators Design Summary 12/10/2010

Frequently Asked Question 1

FAQ 05/17/2017
