DS1870

LDMOS RF Power-Amplifier Bias Controller

Industry's First Integrated LDMOS Power-Amplifier Controller Monitor

Viewing:

Part Details

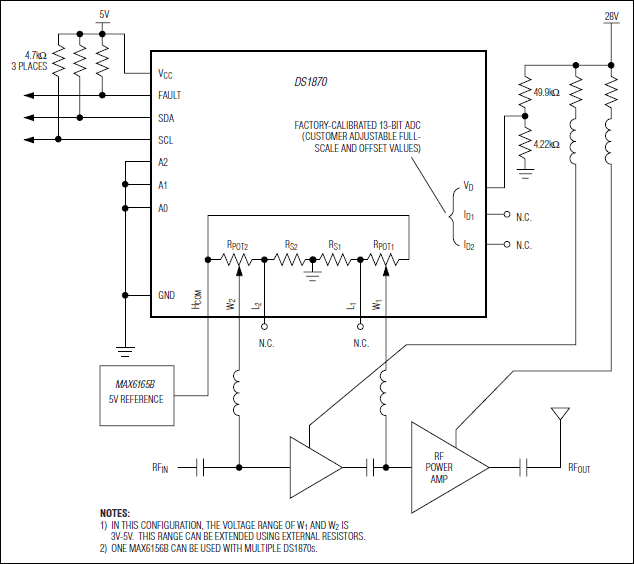

Two-Channel Solution for Programmable RF Bias Control
The Potentiometer's Position is Automatically Updated to Compensate for the Ambient Temperature and the Drain Voltage or Current
A Five-Channel, 13-Bit ADC Continuously Monitors the Ambient Temperature, V_CC, V_D, I_D1, and I_D2
Hi/Lo Alarms for Each ADC Channel can Trigger a Fault Output
Nonvolatile Memory for the Device Settings, Lookup Tables, and 32-Bytes of User Memory
I²C-Compatible Serial Interface with Up to Eight Devices on the Same Serial Bus
Single 5V Power Supply
Small 16-Pin TSSOP Package
-40°C to +95°C Operational Temperature Range
