ADV7402

Obsolete

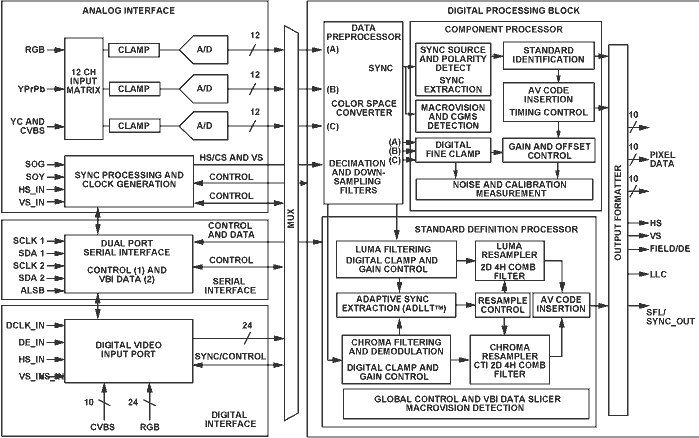

Integrated Multi-Format SDTV / HDTV Video Decoder and RGB Graphics Digitizer

Viewing:

Part Details

Three 12-bit 110MHz Noise Shaped
Video® ADCs
Support for all NTSC, PAL and
SECAM variants
Support for Analog Component
YPrPb/RGB Inputs
Full HDTV Support for 525p, 625p, 720p
& 1080i
RGB Graphics Support from VGA to
SXGA @ 60Hz
12 Analog Input Channels

Super Adaptive 2D 5-Line Comb
Filters for NTSC/PAL
Full Automatic Video Standard
Detection
Adaptive Digital Line Length Tracking
(ADLLT™)
Chroma Transient Improvement (CTI)
Certified Macrovision® Copy
Protection
100-pin 14mm x 14mm
Lead(Pb)-Free LQFP Package

Documentation

Application Note 4

AN-1260: Crystal Design Considerations for Video Decoders, HDMI Receivers, and Transceivers (Rev.0) 10/18/2013

AN-330: Animation Using the Pixel Read Mask Register of the ADV47X Series of Video RAM-DACs 01/01/2000

AN-1050: A Method for Compressing I2C Scripts for the ADV74xx/ADV75xx/ADV76xx/ADV78XX 03/08/2024

AN-1260: Crystal Design Considerations for Video Decoders, HDMI Receivers, and Transceivers 08/04/2020

Technical Articles 3

Analog Video Time Base Correction and Processing for Nonstandard TV Signals 06/08/2007

Optimizing standard-definition video on high-definition displays 02/05/2009

Designing Power Supplies for High Speed ADC 02/01/2012
