ADuM152N

RECOMMENDED FOR NEW DESIGNS

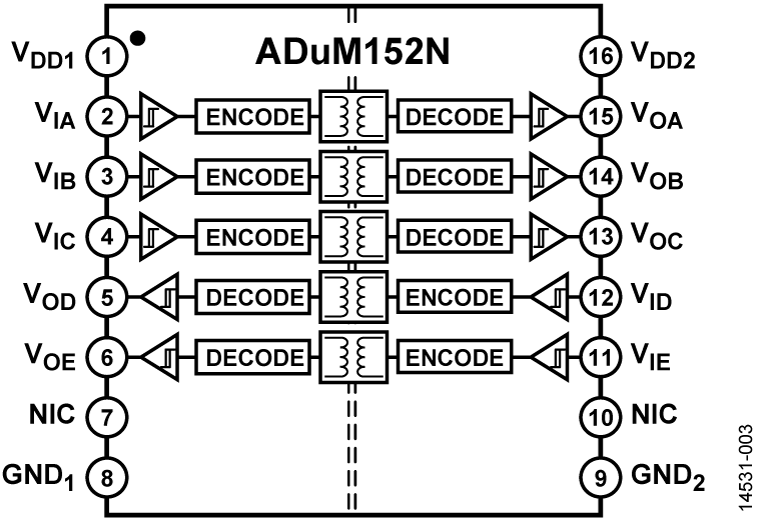

Robust 3.0 kV rms Five Channel Digital Isolators w/ Fail-Safe & 2 Reverse Channels

Data Sheet (Rev. A) Product Selection Table

Part Models: 4
1ku List Price: Starting From $1.90

Viewing:

Part Details

High common-mode transient immunity: 100 kV/μs
High robustness to radiated and conducted noise
Low propagation delay
- 13 ns maximum for 5 V operation
- 15 ns maximum for 1.8 V operation
150 Mbps maximum guaranteed data rate
Safety and regulatory approvals (pending)
- UL recognition: 3000 V rms for 1 minute per UL 1577
- CSA Component Acceptance Notice 5A
- VDE certificate of conformity
  - DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
  - V_IORM = 565 V peak
- CQC certification per GB4943.1-2011

Low dynamic power consumption
1.8 V to 5 V level translation
High temperature operation: 125°C
Fail-safe high or low options
16-lead, RoHS compliant, narrow-body SOIC package

Part Models: 4
1ku List Price: Starting From $1.90

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM152N0BRZ	16-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM152N0BRZ-RL7	16-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM152N1BRZ	16-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM152N1BRZ-RL7	16-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

IBIS Model 1

ADuM152N IBIS Model

Evaluation Kits

Evaluation Board for Five and Six Channel Standard Data Isolators in 8 lead SOIC

Buy Now View Details

Features and Benefits

Access to 6 data channels
Multiple connection options
Support for active probes
Provisions for cable terminations
Support for printed circuit board (PCB) edge mounted coaxial connectors
Easy configuration

Product Details

The EVAL-5CH6CHSOICEBZ supports 5-channel and 6-channel iCoupler^® standard data isolators in a 16-lead SOIC package. The evaluation board provides a JEDEC standard, 16-lead SOIC_N and SOIC_W pad layout. This layout supports signal distribution, loopback, and loads referenced to the VDDx or GNDx planes, as well as optimal bypass capacitance. Signal sources can be conducted to the evaluation board through header pins or through edge mounted SMA connectors (SMA connectors must be ordered separately). Screw terminal blocks on the evaluation board provide power connections.

The evaluation board includes 0.2 inch header positions for compatibility with active probes (probe header pins must be ordered separately).

The evaluation board follows best PCB design practices for 4-layer boards, including a full power plane and ground plane on each side of the isolation barrier. No other electromagnetic interference (EMI) or noise mitigation design features are included on the evaluation board. In cases of high speed operation, or when ultralow emissions are required, refer to the AN-1109 Application Note for additional evaluation board layout techniques.

Resources

UG-936: Using the EVAL-5CH6CHSOICEBZ iCoupler Standard Data Isolator Evaluation Board (Rev.B)
432.02 K

Single-Channel, Fully Isolated, Low Latency Data Acquisition System (DAQ)

Buy Now View Details

Features and Benefits

Fully Isolated PMOD-to-FMC interposer board
Software programmable bipolar input ranges (±1.1 V to ±11.0 V)
- Allows single-ended and differential signals
GΩ input impedance allows direct interface with sensors
On-board 5 V reference and buffer
Complete power management solution
SPI-/QSPI-/MICROWIRE-/DSP-compatible serial interface
PC software for control and data analysis of time and frequency domain

Product Details

The ADSKPMB10-EV-FMCZ signal chain kit is a two-board solution, which consists of a Precision Medium Bandwidth Data Acquisition Solution on a PMOD form factor and a Fully Isolated PMOD-to-FMC interposer board.

The Precision Medium Bandwidth Data Acquisition Solution features a discrete programmable gain instrumentation amplifier (PGIA) that was built using a 30V, High Speed, Low Noise, Low Bias Current, JFET Operational Amplifier, the ADA4627-1, a Precision Quad Matched Resistor Network, the LT5400, a Low Capacitance, 4-Channel, ±15 V/+12 V iCMOS^™ Multiplexer, the ADG1209 and the internal Fully Differential Amplifier (FDA) ADC driver of the ADAQ4003. The PGIA in thru front-end offers high input impedance that allows direct interface with a variety of sensors. A programmable gain is often needed to adapt the circuit to different input signal amplitudes—unipolar or bipolar and single-ended or differential with varying common-mode voltages. The PGIA works with the ADAQ4003, an 18-Bit, 2 MSPS, µModule^® Data Acquisition Solution.

The Fully Isolated PMOD-to-FMC interposer board was designed using a Low Noise, 1A, 1MHz Push-Pull DC/DC Driver with Duty Cycle Control, the LT3999, a Robust 3.0kVrms Digital Isolators w/ Fail-Safe for the SPI lines and PGIA gain control pins, the ADuM152N and the ADuM120N, and a Low noise and ultra-low noise LDO regulators the ADP7105 and the ADP150N respectively.
