ADRF6650

RECOMMENDED FOR NEW DESIGNS

Dual Downconverter with DVGA and PLL/VCO, 450 MHz to 2700 MHz

Part Models
2
1ku List Price
Starting From $22.92

Part Details

  • Dual down-converter with integrated fractional-N PLL/VCO
  • RF: 450 MHz to 2700 MHz continuous
  • LO frequency: 450 MHz to 2900 MHz, high-side or low-side injection
  • 43 dB gain control range
  • Gain control with up/down and SPI
  • Integrated RF balun for single-ended 50 Ω inputs
  • Power supply: 3.3 and 5 V

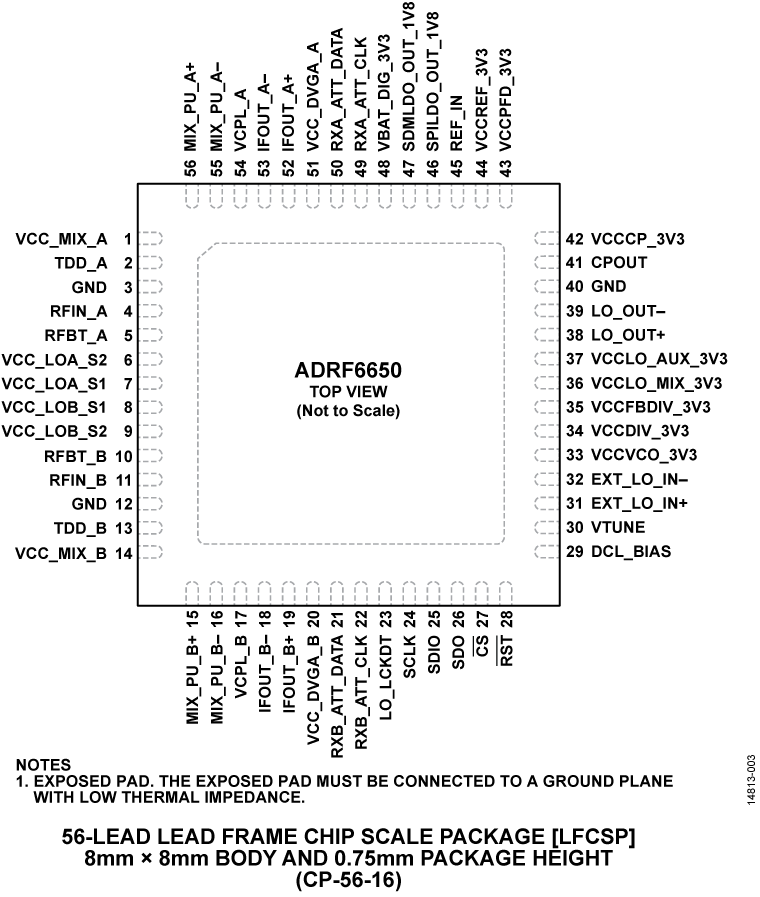

  • 8 mm × 8 mm, 56-lead LFCSP package
ADRF6650
Dual Downconverter with DVGA and PLL/VCO, 450 MHz to 2700 MHz
Ask a Question

Documentation

Learn More

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Evaluation Kits

eval board
ADRF6650-EVALZ

ADRF6650 Evaluation Board

Features and Benefits

  • Full featured evaluation board for the ADRF6650
  • Single supply: 5.6 V (1 A capability required)
  • ACE software for control

Product Details

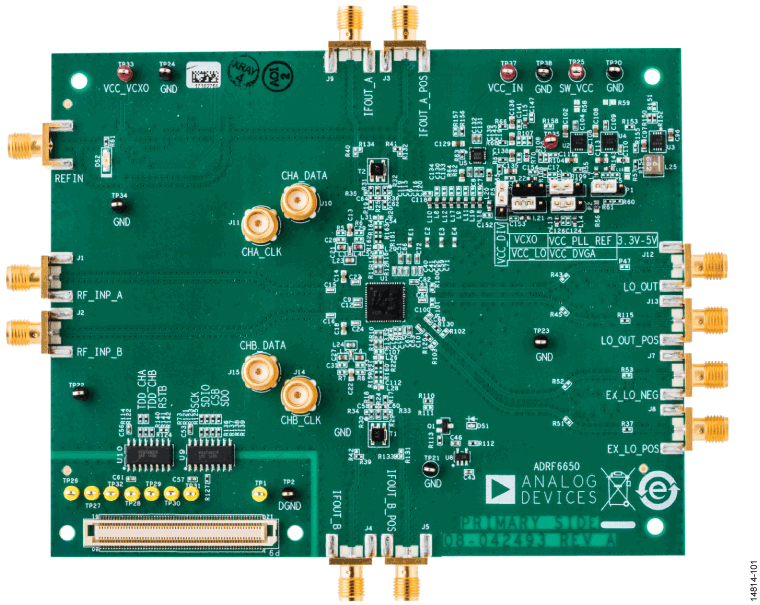

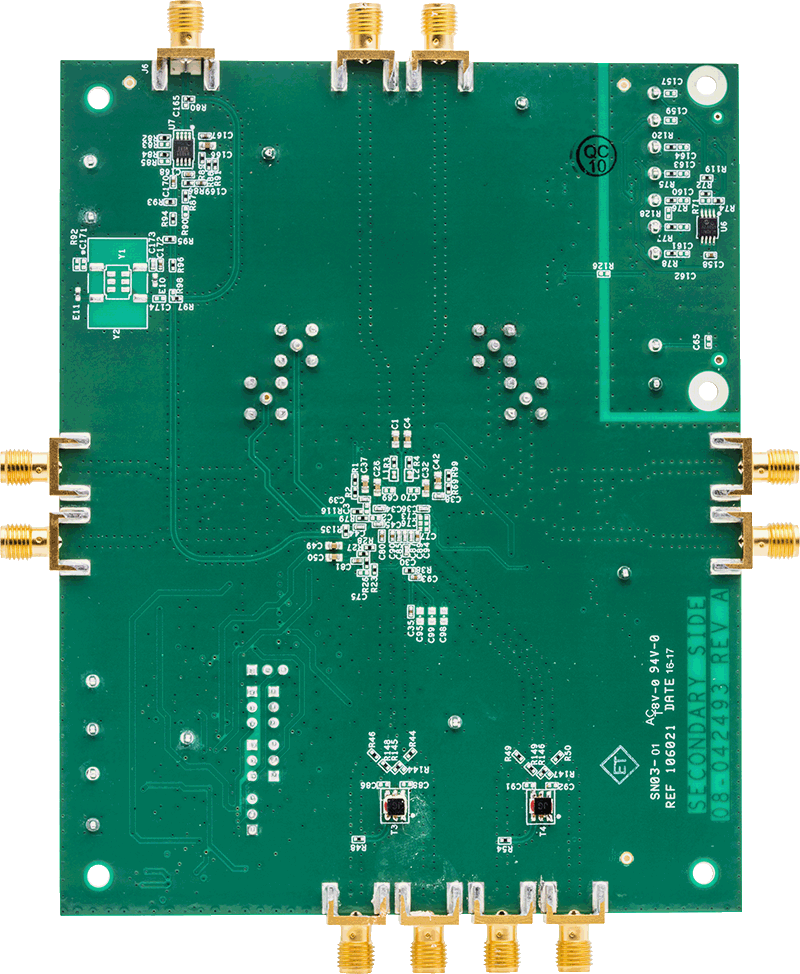

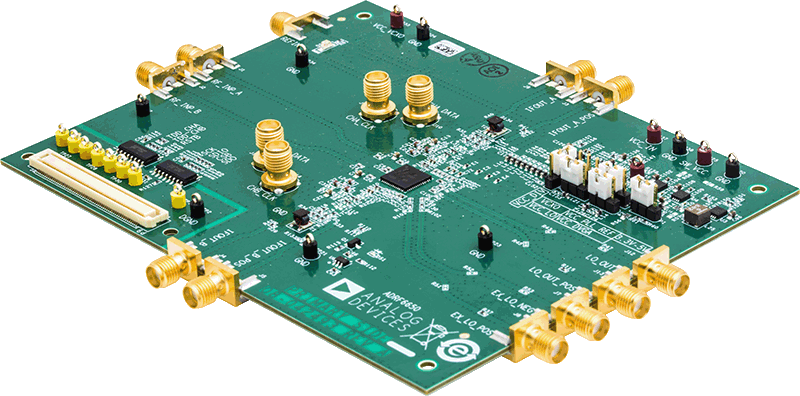

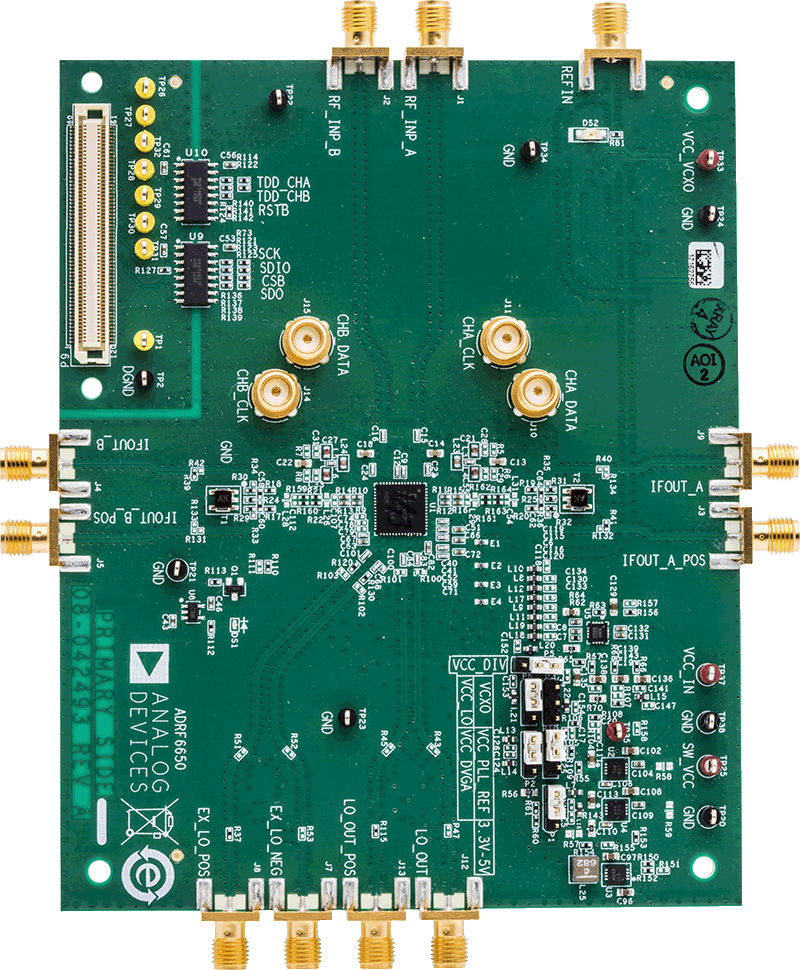

The ADRF6650-EVALZ is a 4-layer Rogers printed circuit board (PCB) and evaluates the performance of the ADRF6650. A photograph of the evaluation board is shown in Figure 1. The evaluation board contains the ADRF6650, a connector suited for a SDP-S controller board, power supply connectors, regulators, and subminiature Version A (SMA) connectors. The evaluation board requires an SDP-S controller board to allow software programming of the device.

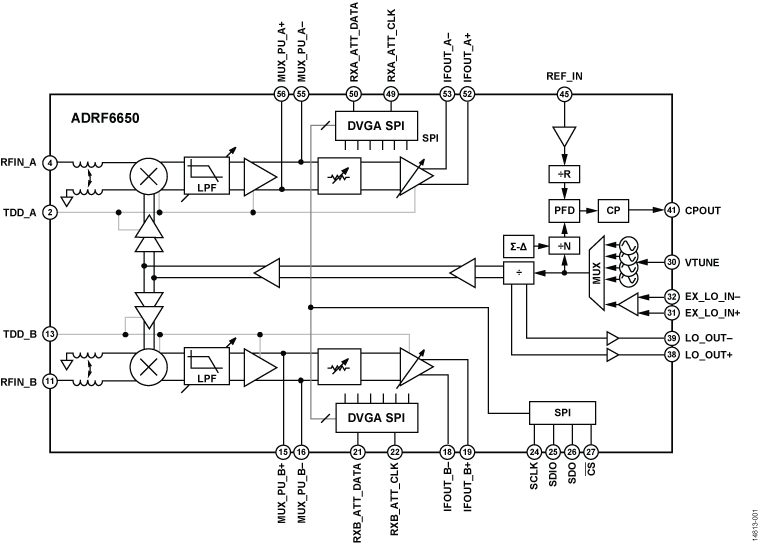

The ADRF6650 is a high performance, dual downconverter that integrates mixers, digital switched attenuators, digital variable gain amplifiers (DVGAs), a phase-locked loop (PLL), and a voltage controlled oscillator (VCO). The device uses broadband, square wave limiting, local oscillator (LO) amplifiers to achieve an RF bandwidth of 450 MHz to 2700 MHz. Unlike conventional, narrow-band, sine wave LO amplifier solutions, the ADRF6650 allows the application of the LO either above or below the RF input, over a bandwidth of 450 MHz to 2900 MHz.

This user guide describes the ADRF6650-EVALZ evaluation board and software. For full details, see the ADRF6650 data sheet, which must be consulted in conjunction with this user guide when using the evaluation board.

ADRF6650-EVALZ
ADRF6650 Evaluation Board
