ADRF5250
RECOMMENDED FOR NEW DESIGNS0.1 GHz to 6 GHz Silicon SP5T Switch
- Part Models
- 3
- 1ku List Price
- Starting From $3.52
Part Details
- Nonreflective 50 Ω design
- Low insertion loss: 1.5 dB at 4 GHz
- High isolation: 50 dB at 4 GHz
- High input linearity
- 0.1 dB compression (P0.1dB): 34 dBm typical
- Third-order intercept (IP3): 57 dBm typical
- High power handling at 85°C
- 33 dBm through path
- 27 dBm terminated path
- ESD rating
- 3.5 kV HBM, Class 2
- Single-supply or dual-supply operation
- Optional internal negative voltage generator (NVG)
- 1.8 V logic-compatible control

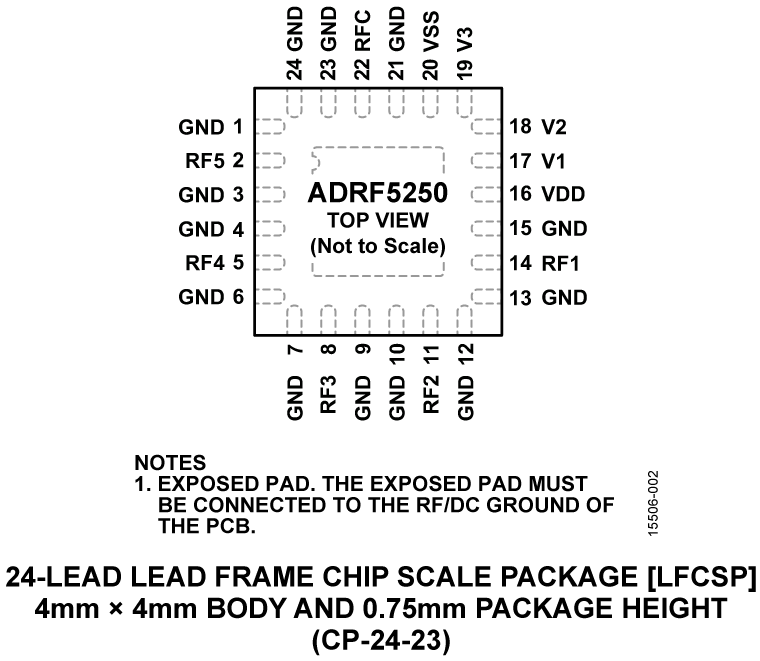

- 4 mm × 4 mm, 24-lead LFCSP

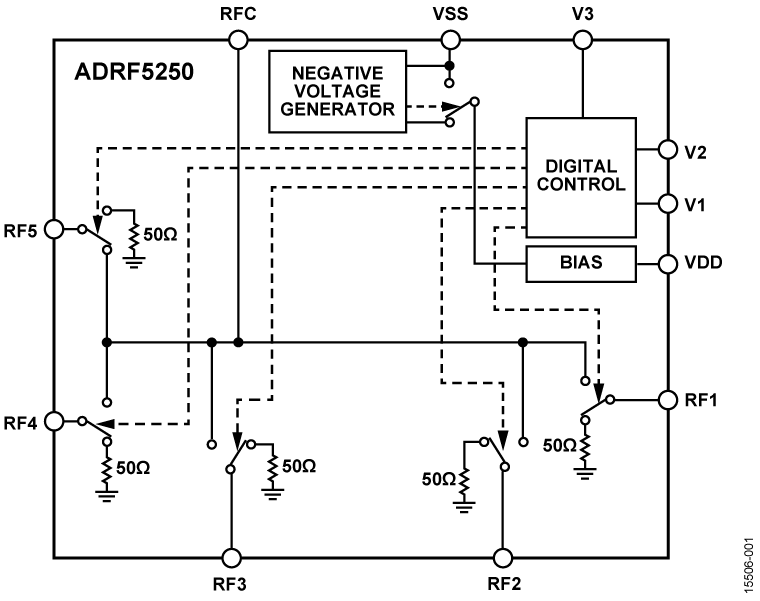

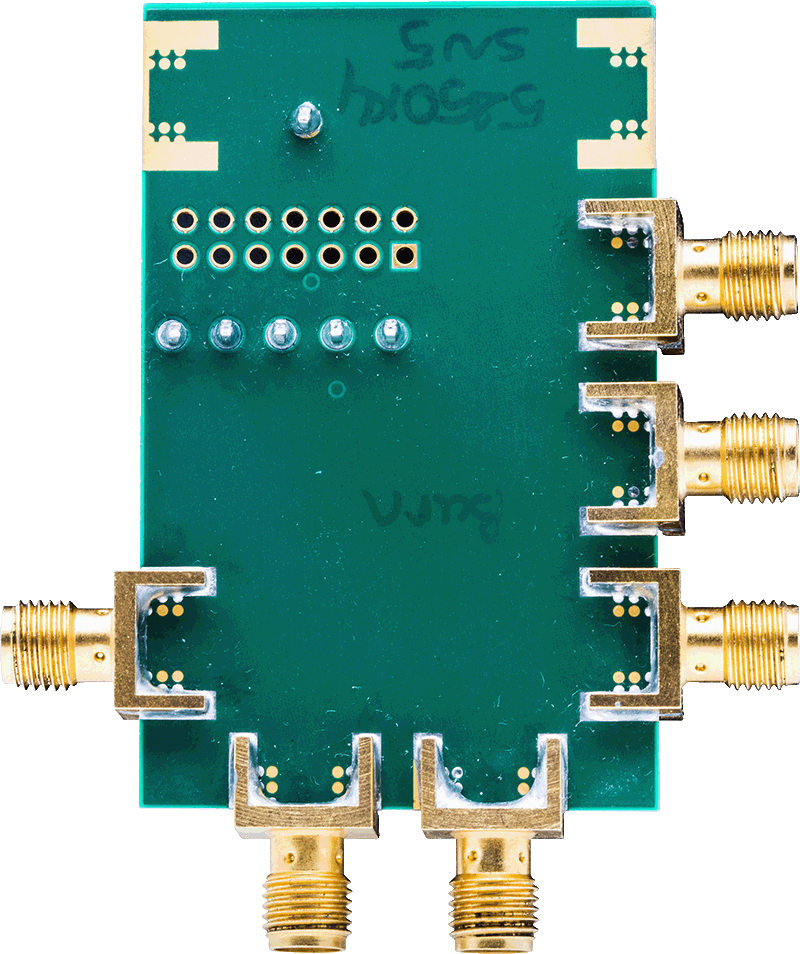

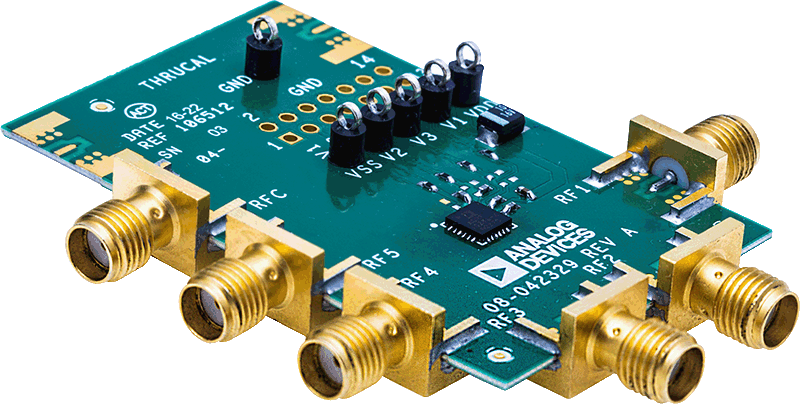

The ADRF5250 is a general-purpose, single-pole, five-throw (SP5T), nonreflective switch manufactured using a silicon process. The ADRF5250 is available in a 4 mm × 4 mm, 24-lead lead frame chip scale package (LFCSP) and provides high isolation and low insertion loss from 100 MHz to 6 GHz.
The ADRF5250 incorporates a negative voltage generator to operate with a single positive supply voltage from 3.3 V to 5 V applied to the VDD pin when the VSS pin is connected to ground. The negative voltage generator can be disabled when an external negative supply voltage of −3.3 V is applied to the VSS pin. The ADRF5250 provides a 1.8 V logic-compatible, 3-pin control interface.
Applications
- Cellular/4G infrastructure
- Wireless infrastructure
- Mobile radios
- Test equipment
Documentation
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADRF5250BCPZ | 20-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP) | ||
| ADRF5250BCPZ-R7 | 20-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP) | ||
| ADRF5250BCPZRL | 20-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP) |
