ADRF5203
PRE-RELEASEDC to 12 GHz, Differential, Nonreflective, Silicon SPDT Switch
- Part Models
- 2
- 1ku List Price
- Starting From $25.26
Part Details
- Frequency range: DC to 12 GHz
- DC voltage range: ±8 V
- On resistance (RON): <2.5 Ω
- Fully differential 100 Ω design
- Low insertion loss
- <0.8 dB at 8 GHz
- <1 dB at 12 GHz
- High isolation
- >45 dB at 8 GHz
- >38 dB at 12 GHz
- High input linearity
- P0.1dB: 31 dBm typical
- P1dB: 32 dBm typical
- IP3: 55 dBm typical
- High power handling
- 31 dBm through path
- 24 dBm terminated path
- RF switching time: 1.5 μs
- All off state control
- Termination control
- 100 Ω differential or high-Z (reflective)

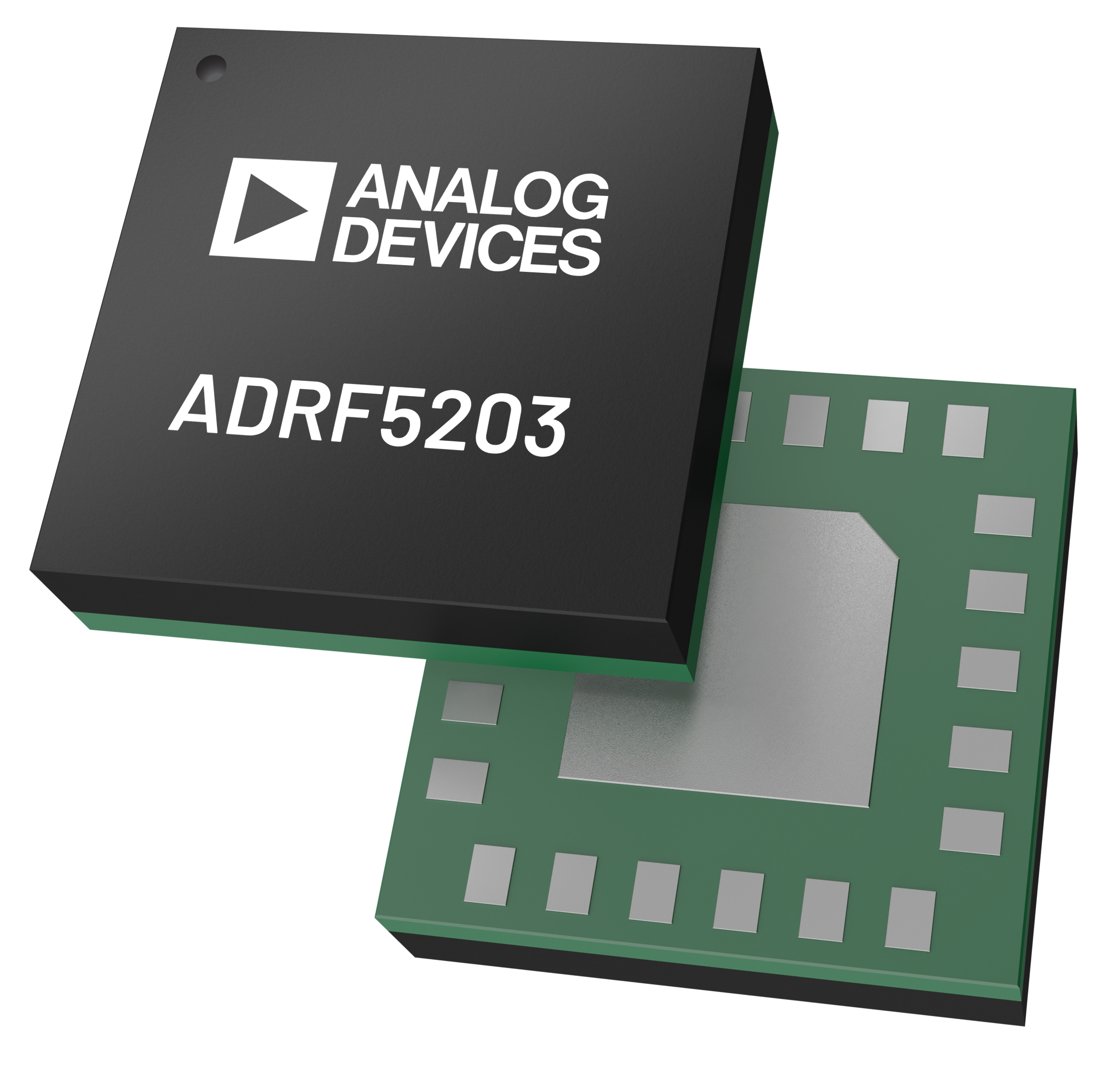

- 22 terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package
The ADRF5203 is a silicon, differential, single-pole double-throw (SPDT) switch. The ADRF5203 operates from DC to 12 GHz with an insertion loss of better than 1 dB and an isolation higher than 38 dB. The device has a DC voltage input range of ±8 V and RF input power handling of differential 31 dBm for through paths and 24 dBm for terminated paths.
The ADRF5203 operates with dual-supply voltages of ±12 V. The ADRF5203 employs complementary metal-oxide semiconductor (CMOS)- and low voltage transistor logic (LVTTL)-compatible controls. The ADRF5203 has an enable control to feature all off state function. The High-Z control selects the termination on the unselected RF channel.
The ADRF5203 comes in a 22-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.
APPLICATIONS
Documentation
Data Sheet 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADRF5203BCCZN | LGA/CASON/CH ARRY SO NO LD | ||
| ADRF5203BCCZN-R7 | LGA/CASON/CH ARRY SO NO LD |
This is the most up-to-date revision of the Data Sheet.
