ADRF5160
RECOMMENDED FOR NEW DESIGNSHigh Power, 88 W Peak, Silicon SPDT, Reflective Switch, 0.7 GHz to 4.0 GHz
- Part Models
- 2
- 1ku List Price
- Starting From $17.40
Part Details
- Reflective, 50 Ω design
- Low insertion loss: 0.7 dB typical to 2.0 GHz
- High power handling at TCASE = 105°C
- Long term (>10 years) average
- CW power: 43 dBm
- Peak power: 49 dBm
- LTE average power (8 dB PAR): 41 dBm
- Single event (<10 sec) average
- LTE average power (8 dB PAR): 44 dBm
- Long term (>10 years) average
- High linearity
- P0.1dB: 47 dBm typical
- IP3: 70 dBm typical
- ESD ratings
- HBM: 4 kV, (Class 3A)
- CDM: 1.25 kV
- Single positive supply: 5 V
- Positive control, CMOS/TTL compatible

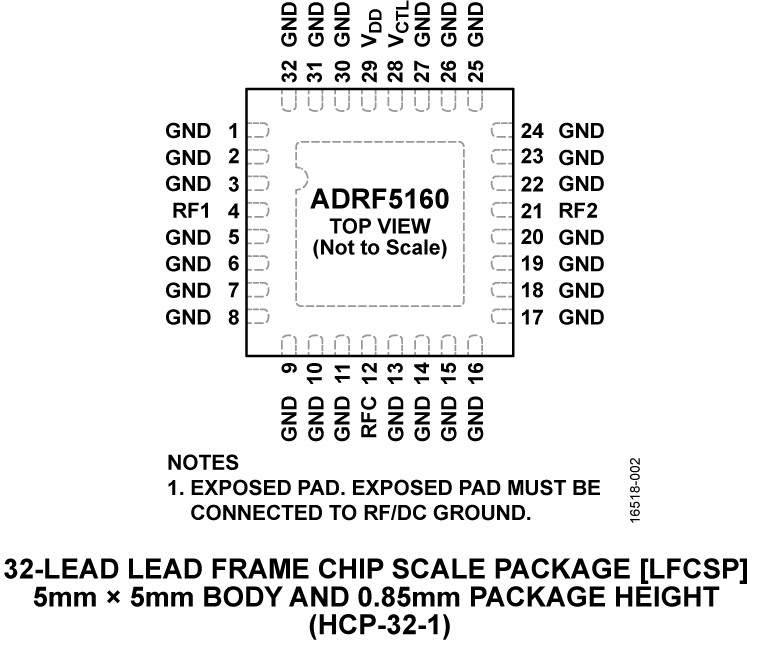

- 32-lead, 5 mm × 5 mm LFCSP package

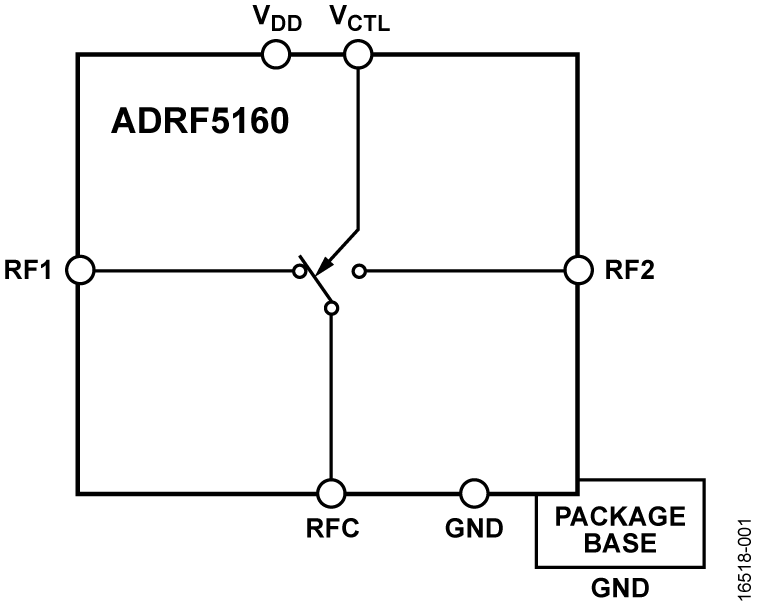

The ADRF5160 is a silicon-based, high power, 0.7 GHz to 4.0 GHz, silicon, single-pole, double-throw (SPDT) reflective switch in a leadless, surface-mount package. The switch is ideal for high power and cellular infrastructure applications, such as long-term evolution (LTE) base stations. The ADRF5160 has high power handling of 41 dBm (8 dB PAR LTE, long-term (>10 years) average typical), a low insertion loss of 0.7 dB typical to 2.0 GHz, an input third-order intercept (IP3) of 70 dBm (typical), and a 0.1 dB compression point (P0.1dB) of 47 dBm. On-chip circuitry operates at a single positive supply voltage of 5 V at a typical supply current of 1.1 mA, making the ADRF5160 an ideal alternative to pin diode-based switches.
The ADRF5160 comes in a RoHS compliant, compact 32-lead, 5 mm × 5 mm LFCSP.
Applications
- Wireless infrastructure
- Military and high reliability applications
- Test equipment
- Pin diode replacement
Documentation
Data Sheet 1
Application Note 1
Design Note 1
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADRF5160BCPZ | 32-Lead QFN (5mm x 5mm w/ EP) | ||
| ADRF5160BCPZ-R7 | 32-Lead QFN (5mm x 5mm w/ EP) |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareTools & Simulations
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Open ToolS-Parameter 1
Evaluation Kits

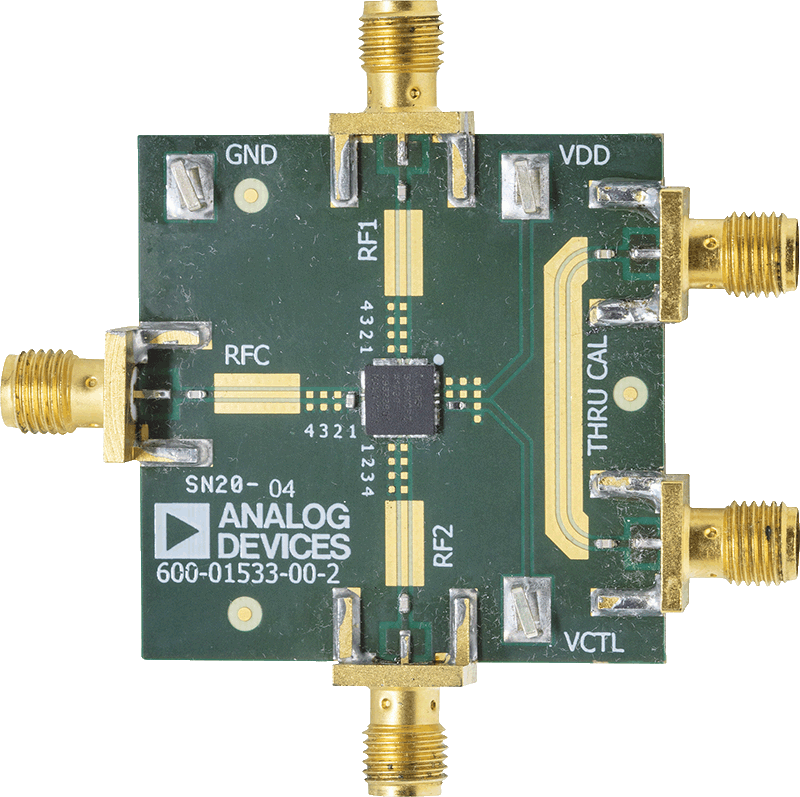

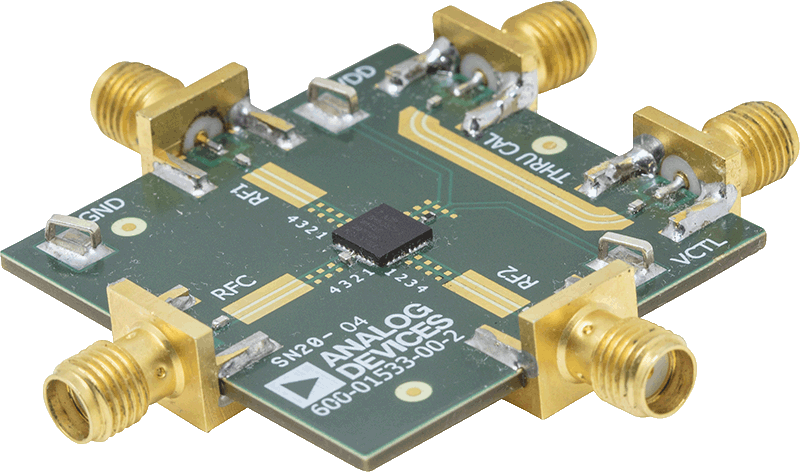

ADRF5160 Evaluation Board
