ADRF5130
RECOMMENDED FOR NEW DESIGNSHigh Power, 44 W Peak, Silicon SPDT, Reflective Switch, 0.7 GHz to 3.5 GHz
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- Reflective, 50 Ω design
- Low insertion loss:
- 0.6 dB typical to 2.0 GHz
- 0.7 dB typical to 3.5 GHz
- High isolation
- 50 dB typical to 2.0 GHz
- 46 dB typical to 3.5 GHz
- High power handling
- RF input power, continuous wave (CW) at TCASE = 85°C
- 43 dBm maximum operating
- 46.5 dBm absolute maximum rating
- RF input power, continuous wave (CW) at TCASE = 85°C
- High linearity
- 0.1 dB compression (P0.1dB): 46 dBm typical
- Input third-order intercept (IP3)
- 68 dBm typical to 2 GHz
- 65 dBm typical to 3.5 GHz
- ESD ratings
- Human body model (HBM): 2 kV, Class 2
- Charged device model (CDM): 1.25 kV
- Single positive supply: VDD = 5 V
- Positive control, TTL-compatible: VCTL = 0 V or VDD

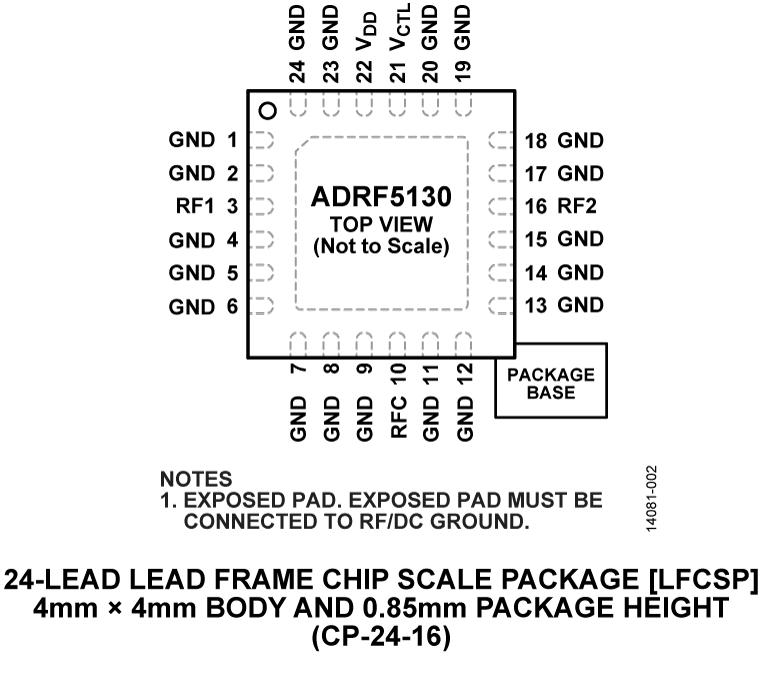

- 24-lead, 4 mm × 4 mm LFCSP package (16 mm2)

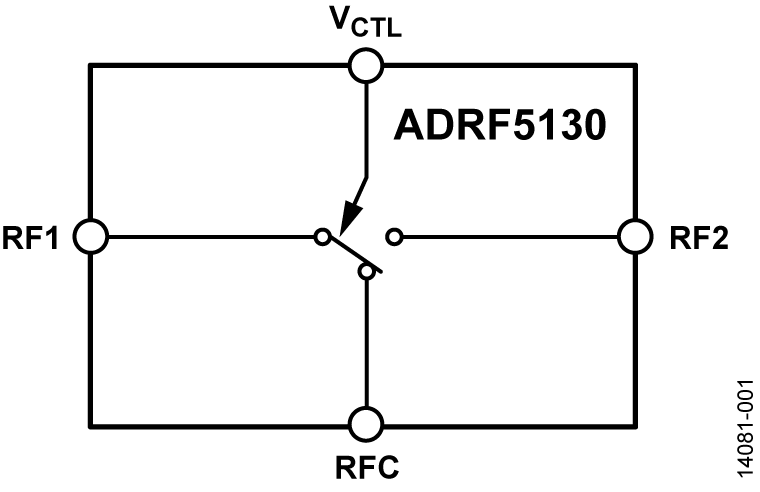

The ADRF5130 is a high power, reflective, 0.7 GHz to 3.8 GHz, silicon, single-pole, double-throw (SPDT) switch in a leadless, surface-mount package. The switch is ideal for high power and cellular infrastructure applications, like long-term evolution (LTE) base stations.
The ADRF5130 has high power handling of 43 dBm (maximum) and 0.1 dB compression (P0.1dB) of 46 dBm, with a low insertion loss of 0.6 dB at 2 GHz and 0.7 dB at 3.5 GHz. On-chip circuitry operates at a single, positive supply voltage of 5 V and typical supply current of 1.06 mA, making the ADRF5130 an ideal alternative to pin diode-based switches.
The device comes in a RoHS compliant, compact, 24-lead, 4 mm × 4 mm LFCSP package.
Applications
- Cellular/4G infrastructure
- Wireless infrastructure
- Military and high reliability applications
- Test equipment
- Pin diode replacement
Documentation
Data Sheet 1
Design Note 1
Product Highlight 1
Video 2
Product Selection Guide 1
Product Highlight 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADRF5130BCPZ | 24-Lead LFCSP (4mm x 4mm w/ EP) | ||
| ADRF5130BCPZ-R7 | 24-Lead LFCSP (4mm x 4mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Apr 19, 2022 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products |
||
| ADRF5130BCPZ | PRODUCTION | |
| ADRF5130BCPZ-R7 | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareTools & Simulations
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Open ToolS-Parameter 1
Evaluation Kits

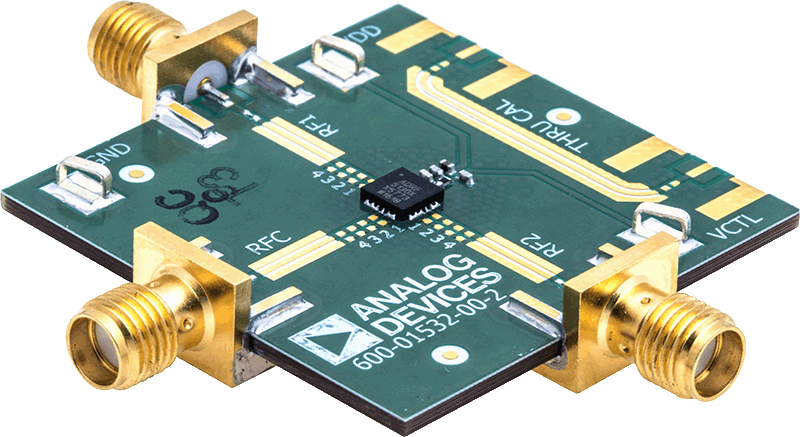

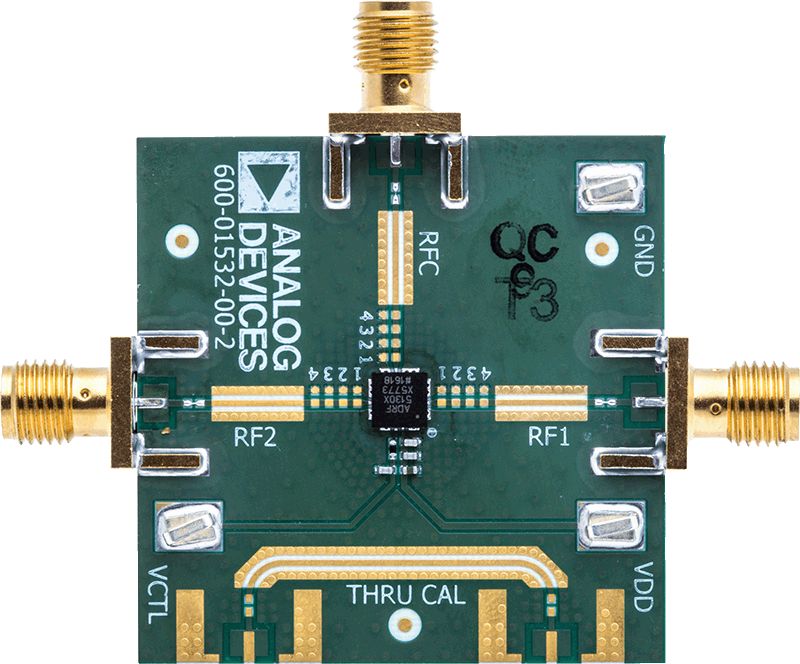

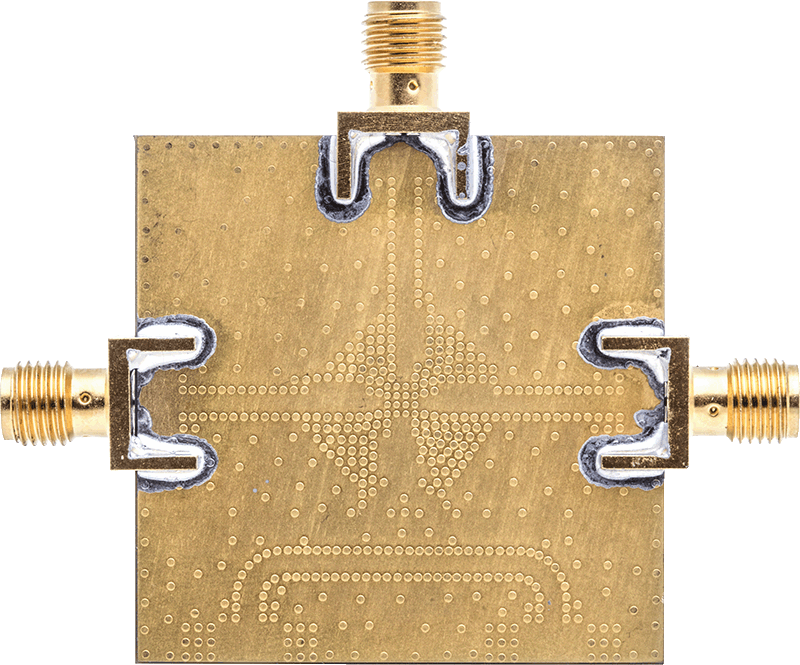

ADRF5130 Evaluation Board
