ADRF5054
RECOMMENDED FOR NEW DESIGNS1 GHz to 60 GHz, Reflective, Silicon SP4T Switch
- Part Models
- 2
- 1ku List Price
- Starting From $97.34
Part Details
- Ultrawideband frequency range: 1 GHz to 60 GHz
- Low insertion loss
- 2.2 dB typical up to 40 GHz
- 2.8 dB typical up to 55 GHz
- 3.2 dB typical up to 60 GHz
- High isolation
- 33 dB typical up to 40 GHz
- 28 dB typical up to 55 GHz
- 28 dB typical up to 60 GHz
- High input linearity
- P0.1dB: 25 dBm typical
- IP3: 47 dBm typical
- High RF power handling
- Through path: 24 dBm
- Hot switching path: 24 dBm
- CMOS-/LVTTL-compatible
- No low frequency spur
- Fast RF switching time: 25 ns
- RF settling time (50% VCTRL to 0.1 dB of RFOUT): 35 ns
- Single-supply operation capability (VDD = 3.3 V, VSS = 0 V)

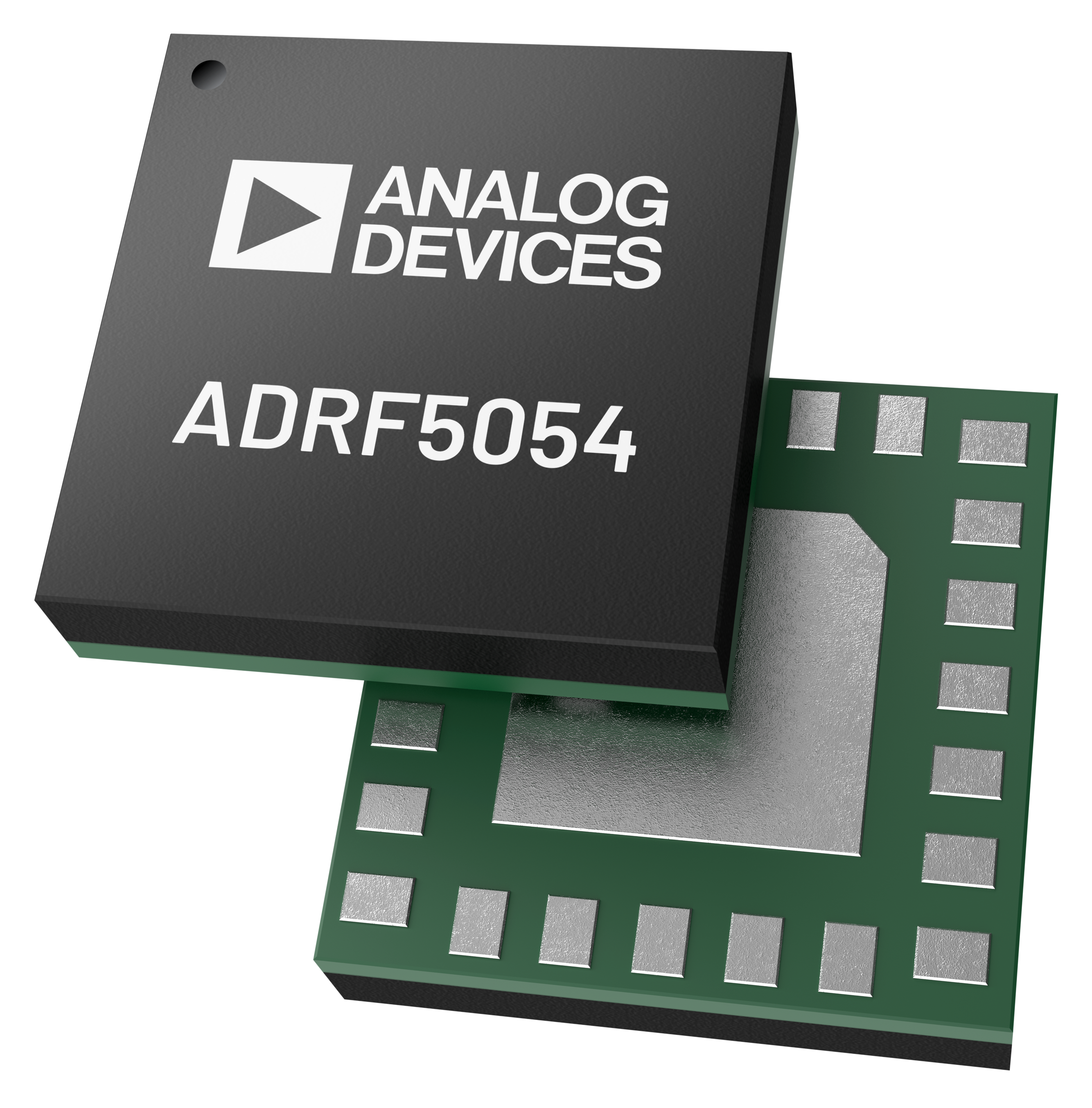

- 24-terminal, 3 mm × 3 mm, RoHS-compliant, LGA package
The ADRF5054 is a reflective, SP4T switch manufactured in a silicon process. The ADRF5054 operates from 1 GHz to 60 GHz. The switch has a low insertion loss of 2.2 dB and 3.2 dB with 33 dB and 28 dB isolation at 40 GHz and 60 GHz, respectively. The ADRF5054 has an RF input power handling capability of 24 dBm for the through and hot switching paths. The ADRF5054 requires dual-supply voltages of ±3.3 V. The ADRF5054 employs complementary metal-oxide semiconductor (CMOS)- and low voltage transistor logic (LVTTL)-compatible control.
The ADRF5054 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is tied to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance are derated (see Table 2 in the data sheet for more details).
The ADRF5054 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.
APPLICATIONS
Documentation
Video 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADRF5054BCCZN | 24-Terminal LGA (3.0 mm x 3.0 mm x 0.71 mm) | ||
| ADRF5054BCCZN-R7 | 24-Terminal LGA (3.0 mm x 3.0 mm x 0.71 mm) |
