ADP1712

PRODUCTION

300 mA, Low Dropout CMOS Linear Regulator

Data Sheet (Rev. A)

Part Models: 8
1ku List Price: Starting From $0.57

Viewing:

Part Details

Maximum output current: 300 mA
Input voltage range: 2.5 V to 5.5 V
Light load efficient I_GND = 75 μA with 100 μA load
Low shutdown current: <1 μA
Very low dropout voltage: 170 mV @ 300 mA load
Initial accuracy: ±1%
Accuracy over line, load, and temperature: ±2%

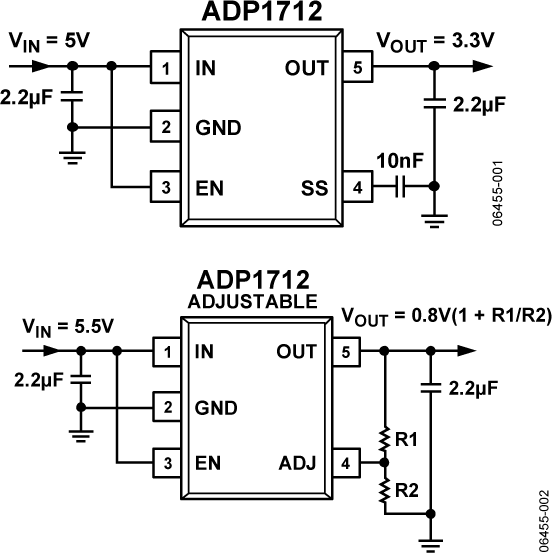

16 fixed output voltage options with soft start: 0.75 V to 3.3 V (ADP1712)
Adjustable output voltage option: 0.8 V to 5.0 V (ADP1712 Adjustable)

16 fixed output voltage options with reference bypass: 0.75 V to 3.3 V (ADP1713)
16 fixed output voltage options with tracking: 0.75 V to 3.3 V (ADP1714)
Low output noise: 40 μV rms
High PSRR: 72 dB @ 1 kHz
Stable with small 2.2 μF ceramic output capacitor
Excellent load/line transient response
Current limit and thermal overload protection
Logic controlled enable
5-lead TSOT package

Part Models: 8
1ku List Price: Starting From $0.57

Documentation

Frequently Asked Question 1

FAQ 05/19/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADP1712AUJZ-1.0-R7	5-Lead TSOT	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADP1712AUJZ-1.2-R7	5-Lead TSOT	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADP1712AUJZ-1.5-R7	5-Lead TSOT	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADP1712AUJZ-1.8-R7	5-Lead TSOT	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADP1712AUJZ-2.5-R7	5-Lead TSOT	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADP1712AUJZ-3.0-R7	5-Lead TSOT	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADP1712AUJZ-3.3-R7	5-Lead TSOT	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADP1712AUJZ-R7	5-Lead TSOT	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
ADP1712AUJZ-1.0-R7	PRODUCTION
ADP1712AUJZ-1.2-R7	PRODUCTION
ADP1712AUJZ-1.5-R7	PRODUCTION
ADP1712AUJZ-1.8-R7	PRODUCTION
ADP1712AUJZ-2.5-R7	PRODUCTION
ADP1712AUJZ-3.0-R7	PRODUCTION
ADP1712AUJZ-3.3-R7	PRODUCTION
ADP1712AUJZ-R7	PRODUCTION
Jan 26, 2010 - 10_0007 Halogen Free Material Change for TSOT Products
		Material_Report PCN10_0007_Form TSOT Qualification Data
ADP1712AUJZ-1.0-R7	PRODUCTION
ADP1712AUJZ-1.2-R7	PRODUCTION
ADP1712AUJZ-1.5-R7	PRODUCTION
ADP1712AUJZ-1.8-R7	PRODUCTION
ADP1712AUJZ-2.5-R7	PRODUCTION
ADP1712AUJZ-3.0-R7	PRODUCTION
ADP1712AUJZ-3.3-R7	PRODUCTION
ADP1712AUJZ-R7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

ADI Linear Regulator Design Tool and Parametric Search

Microsoft Excel download tool from ADIsimPower to generate a power supply design complete with a schematic, bill of materials, and performance specifications.

Open Tool

Evaluation Kits

ADP1712 Evaluation Board

Buy Now View Details

Product Details

These evaluation boards are used to demonstrate the functionality of the ADP1712/ADP1713/ADP1714 linear regulators.

Simple device measurements such as line and load regulation, dropout, and ground current can be demonstrated with just a single voltage supply, a voltmeter, a current meter, and load resistors.

Resources

ADP1712/ADP1713/ADP1714: Evaluation Board (EVAL-ADP1712/ADP1713/ADP1714)
3/15/2007
