ADMV4530

RECOMMENDED FOR NEW DESIGNS

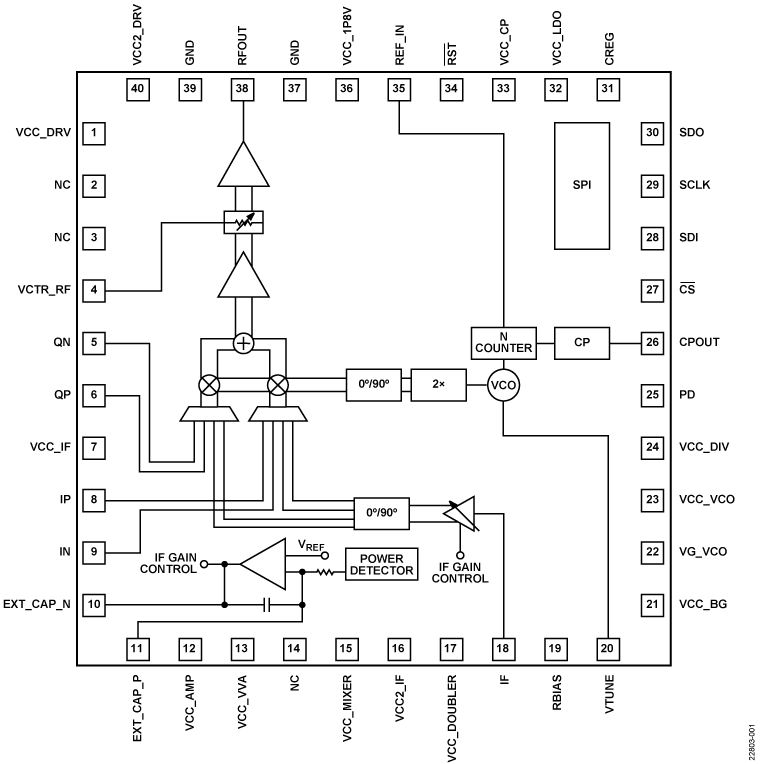

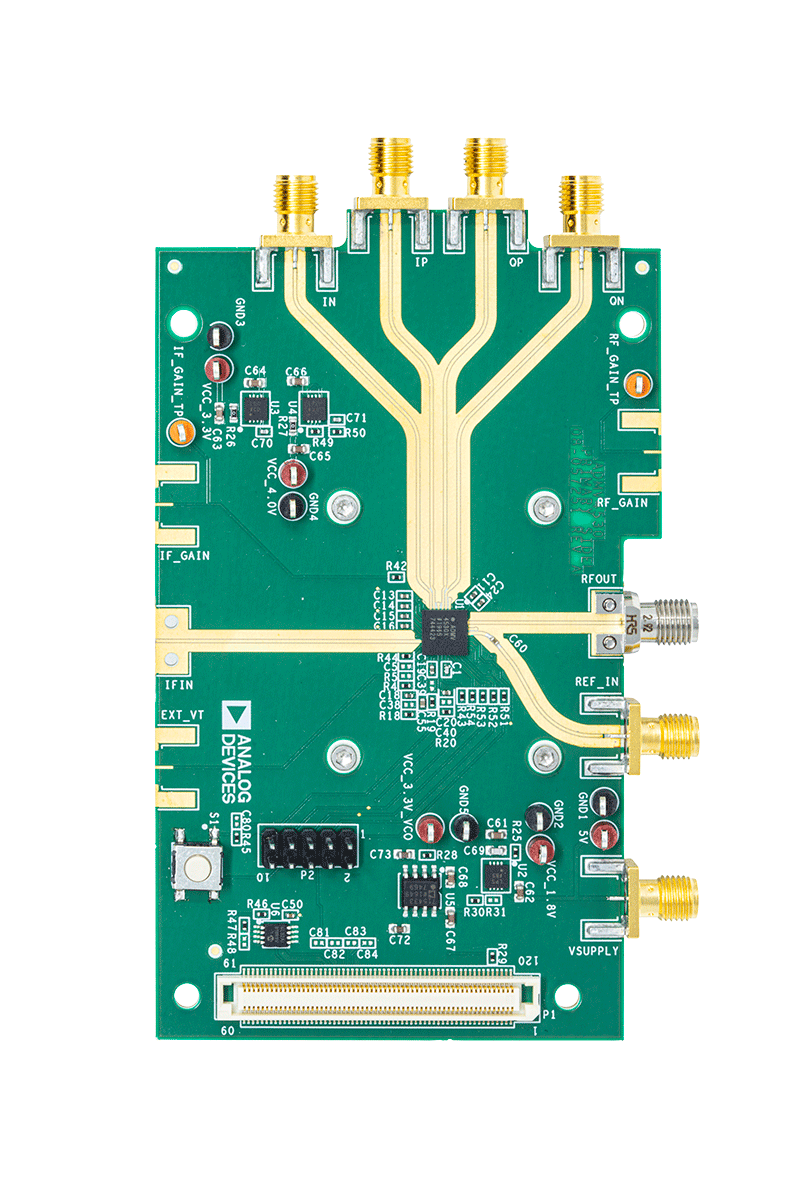

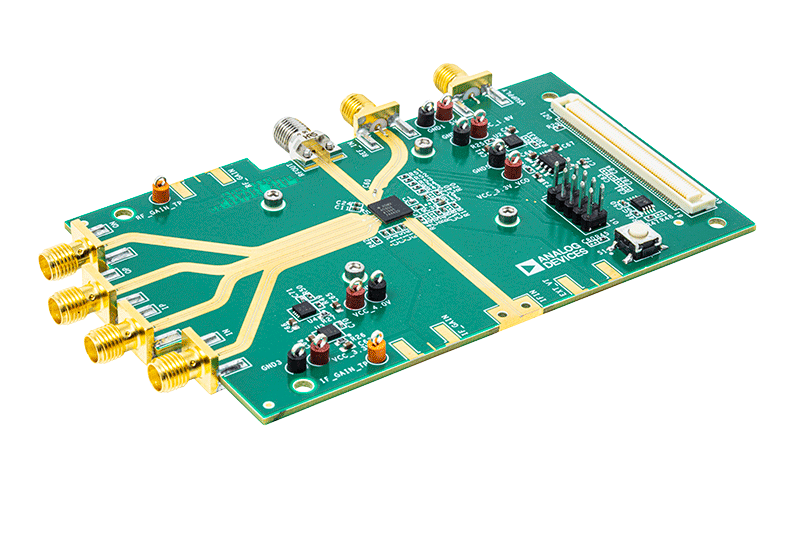

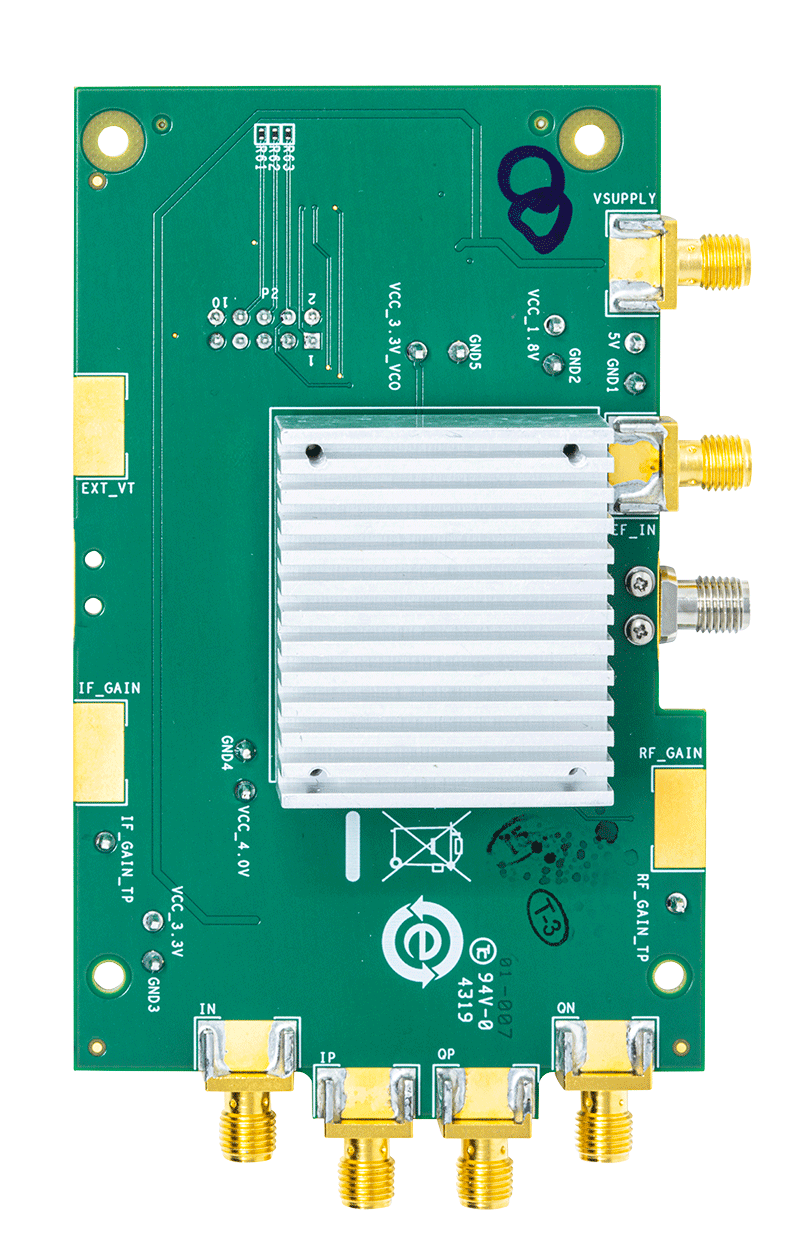

Dual-mode, Ka Band Upconverter with Integrated Fractional-N PLL and VCO

Part Models
2
1ku List Price
Starting From $42.52

Part Details

  • RF output frequency range: 27 GHz to 31 GHz
  • Two upconversion modes
    • Direct upconversion from differential baseband I/Q (I/Q mode)
    • Single upper sideband upconversion (IF mode)
  • 1 dB bandwidth: 500 MHz (I/Q mode)
  • Input frequency range: 2 GHz to 3 GHz (IF mode)
  • Matched, 50 Ω, single-ended RF output
  • Matched, 50 Ω, single-ended IF input
  • Programmable baseband I/Q common mode-voltage
  • Sideband rejection and carrier feedthrough optimization
  • Combined RF and IF gain dynamic range: 70 dB
  • Programmable automatic IF gain control
  • Programmable via 3-wire or 4-wire SPI

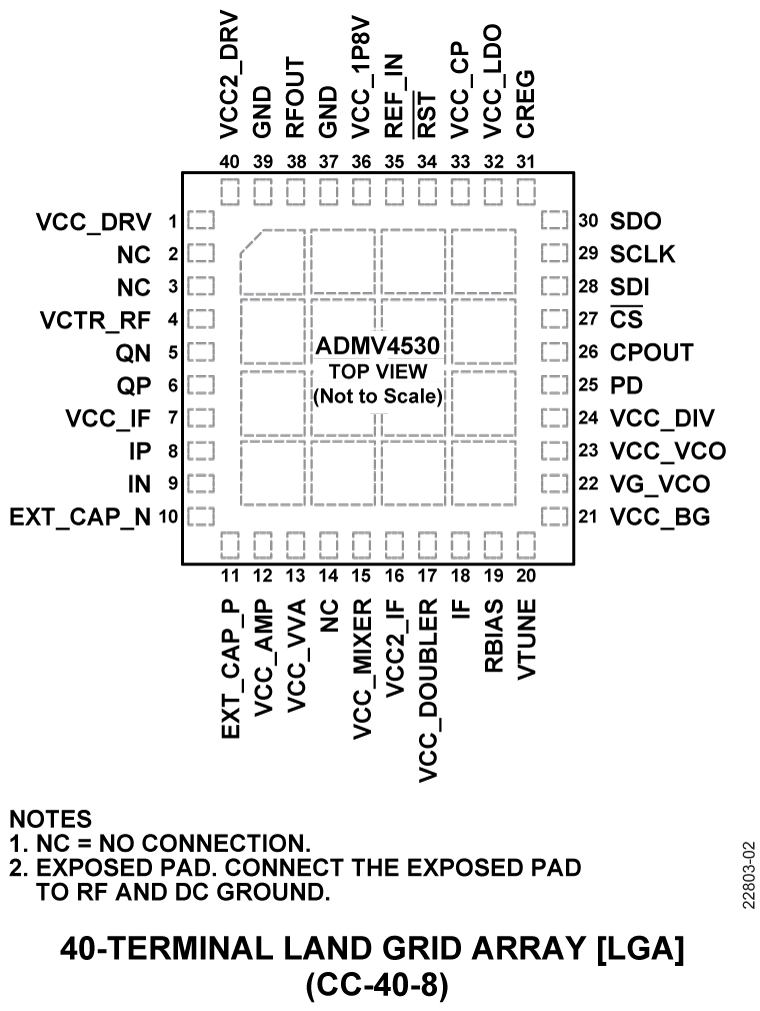

  • 40-terminal, 6 mm × 6 mm, RoHS compliant LGA
