ADM6820

PRODUCTION

FET Drive Simple Sequencer™ w/Capacitor Adjustable Delay

Data Sheet (Rev. 0) Product Selection Table

Part Models: 1
1ku List Price: Starting From $1.34

Viewing:

Part Details

Single Chip Enables Power Supply Sequencing of Two Supplies
On Board Charge Pump Fully Enhances N Channel FET
Adjustable Primary Supply Monitor Monitors Down to 0.62V
Enabled Capacitor Adjustable Delay

Delay From Primary Supply Good to Secondary Supply
-40°C to +85°C Operating Range

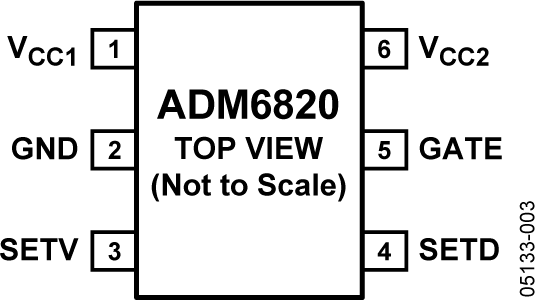

Packaged in Small 6 Lead SOT-23 Package
Pin for Pin Compatible with MAX6819/MAX6820

Part Models: 1
1ku List Price: Starting From $1.34

Documentation

Data Sheet 1

ADM6819/ADM6820: FET Drive Simple Sequencers^® Data Sheet (Rev.0) 07/01/2006

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM6820ARJZ-REEL7	6-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 4, 2010 - 10_0009 Halogen Free Material Change for SOT_23 Products
		Material_Report PCN10_0009_Form SOT23 Qualification Data
ADM6820ARJZ-REEL7	PRODUCTION	Material_Report PCN10_0009_Form SOT23 Qualification Data
Nov 16, 2009 - 06_0157 Qualification of the 8" H6 Thin Film BiPolar Wafer Fab Process at Analog Devices, Limerick, Ireland
		Material_Report PCN06_0157_Form RQR03599A
ADM6820ARJZ-REEL7	PRODUCTION	Material_Report PCN06_0157_Form RQR03599A

This is the most up-to-date revision of the Data Sheet.
