ADM1385

PRODUCTION

High-Speed, 2-Channel RS232/V.28 Interface Devices

Data Sheet (Rev. E)

Part Models: 4
1ku List Price: Starting From $2.21

Viewing:

Part Details

Meets EIA-232E Specifications
0.1 µF Charge Pump Capacitors
Low Power Shutdown (ADM3222E and ADM1385)
DIP, SO, SOIC, SSOP and TSSOP Package Options
460 kbps Data Rate

Specified at 3.3 V
Upgrade for MAX3222/32 and LTC1385
ESD Protection to IEC1000-4-2 (801.2) on RS-232 Pins (ADM3202 Only) ±8 kV: Contact Discharge ±15 kV: Air-Gap Discharge

Part Models: 4
1ku List Price: Starting From $2.21

Documentation

Data Sheet 1

ADM3202/ADM3222/ADM1385: Low Power, 3.3 V, RS-232 Line Drivers/Receivers Data Sheet (Rev.E) 11/13/2006

Technical Articles 1

Interface Primer 12/22/2010

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

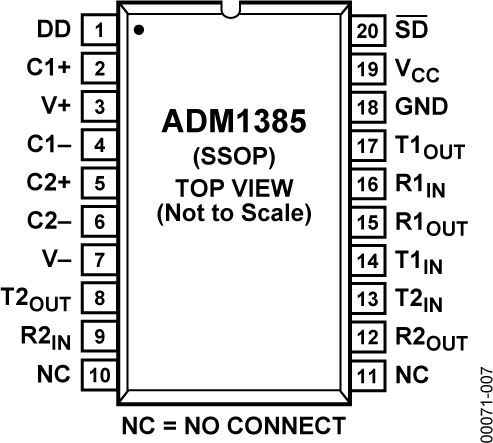

ADM1385ARS	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADM1385ARSZ	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADM1385ARSZ-REEL	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADM1385ARSZ-REEL7	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 25, 2010 - 10_0065 Halogen Free Material Change for SSOP Products at Carsem
		PCN10_0065_Form Material_Report Reliability Report
ADM1385ARS	Obsolete
ADM1385ARSZ	PRODUCTION
ADM1385ARSZ-REEL	PRODUCTION
ADM1385ARSZ-REEL7	PRODUCTION
Feb 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
ADM1385ARS	Obsolete
Jan 29, 2014 - 14_0014 ADI Corporate Obsolescence Notice-January 2014 (Standard Products)
		PDN14_0014_Form Material_Report
ADM1385ARS	Obsolete	PDN14_0014_Form Material_Report

This is the most up-to-date revision of the Data Sheet.
