ADH987S

RECOMMENDED FOR NEW DESIGNS

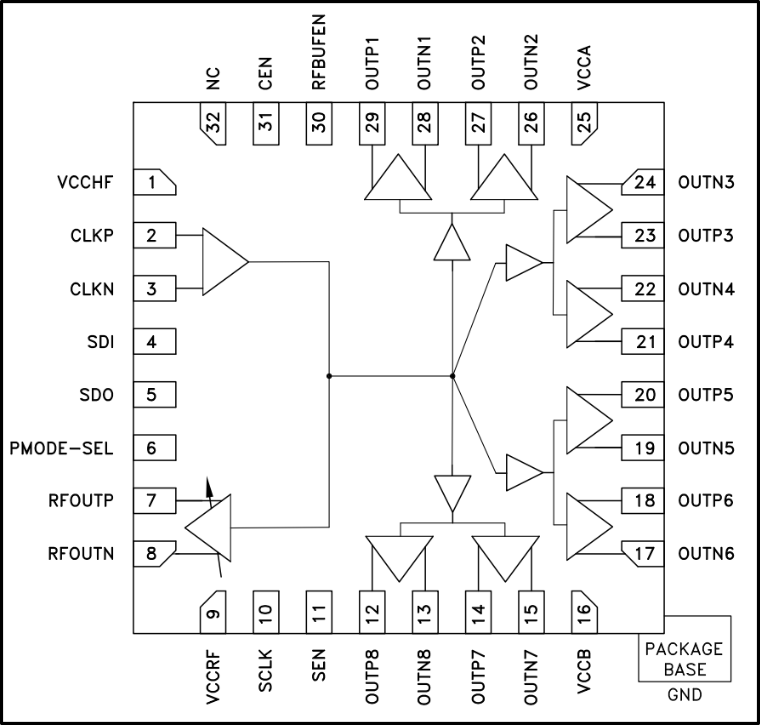

Aerospace, 3.3 V Low Noise 1:9 Fanout Buffer, DC to 8 GHz

Part Details

  • SiGe BiCMOS Process
  • Operating Frequency:
    • HMC8626LP5E: DC - 8 GHz
    • ADH987R701G32: DC - 4.5 GHz
  • Ultra Low Noise Floor:
    • HMC8626LP5E: -166 dBc/Hz @ 2 GHz
    • ADH987R701G32: -155 dBc/Hz @ 2 GHz
  • Flexible Input Interface: LVPECL, LVDS, CML, CMOS Compatible AC or DC Coupling On-Chip Termination 50 or 150 Ω (100/300 Ω Diff.)
  • Multiple Output Drivers: Up to 8 Differential or 16 Single-Ended LVPECL Outputs
  • One Adjustable Power CML/RF Output
  • Serial or Parallel Control, Hardware Chip-Enable
  • Power-Down Current < 1 uA
  • Space Qualification & Testing:
    • HMC8626LP5E: Screened with guidelines to NASA/EEE-INST-002, Section M4, Level 1 applications
    • ADH987R701G32: Screened with accordance with MIL-PRF-38535 Level V (Class Level S)
