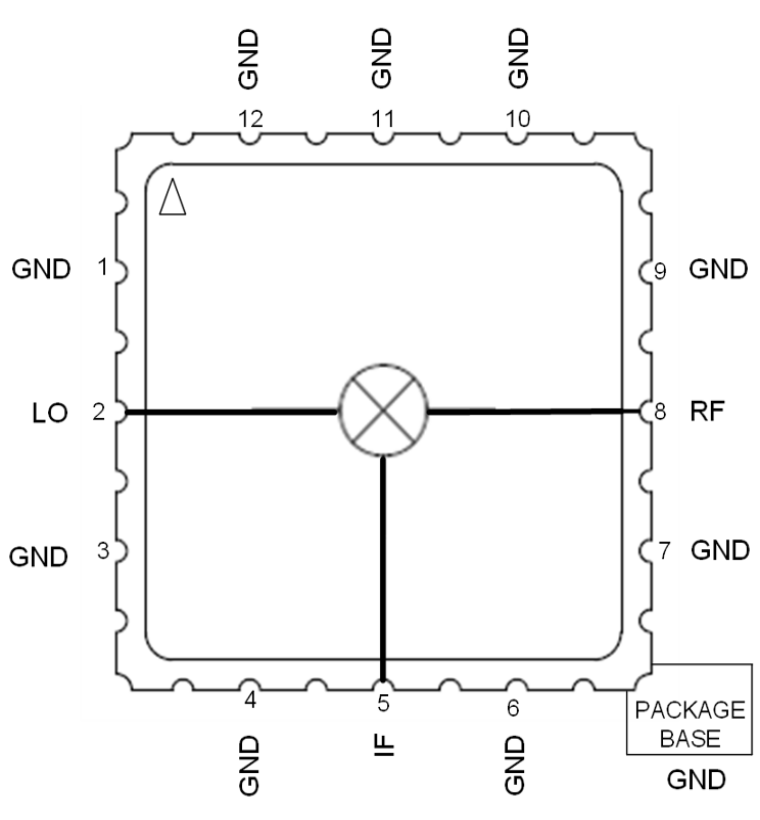

ADH1048S

2 GHz to 18 GHz Double-Balanced Mixer

Viewing:

Part Details

  • Passive: No DC Bias Required
  • High Input IP3: 23 dBm
  • LO/RF Isolation: 38 dB
  • LO/IF Isolation: 28 dB
  • RF/IF Isolation: 15 dB
  • IF Bandwidth: DC – 4 GHz
  • 12-Lead Ceramic Hermetic SMT
  • Screened in accordance with MIL-PRF-38535, Class Level S
ADH1048S
2 GHz to 18 GHz Double-Balanced Mixer
