ADG5462F

RECOMMENDED FOR NEW DESIGNS

User Defined Fault Protection and Detection, 10 Ω RON, Quad Channel Protector

Data Sheet (Rev. C)
Part Models
3
1ku List Price
Starting From $4.55
Viewing:

Part Details

  • User defined secondary supplies set overvoltage level
    • Overvoltage protection up to −55 V and +55 V
    • Power-off protection up to −55 V and +55 V
    • Overvoltage detection on source pins
    • Minimum secondary supply level: 4.5 V single-supply
    • Interrupt flag indicates fault status
  • Low on resistance: 10 Ω typical
    • On-resistance flatness: 0.5 Ω maximum
  • 4 kV human body model (HBM) ESD rating
  • Latch-up immune under any circumstance
  • VSS to VDD analog signal range
    • ±5 V to ±22 V dual supply operation
    • 8 V to 44 V single-supply operation
    • Fully specified at ±15 V, ±20 V, +12 V, and +36 V

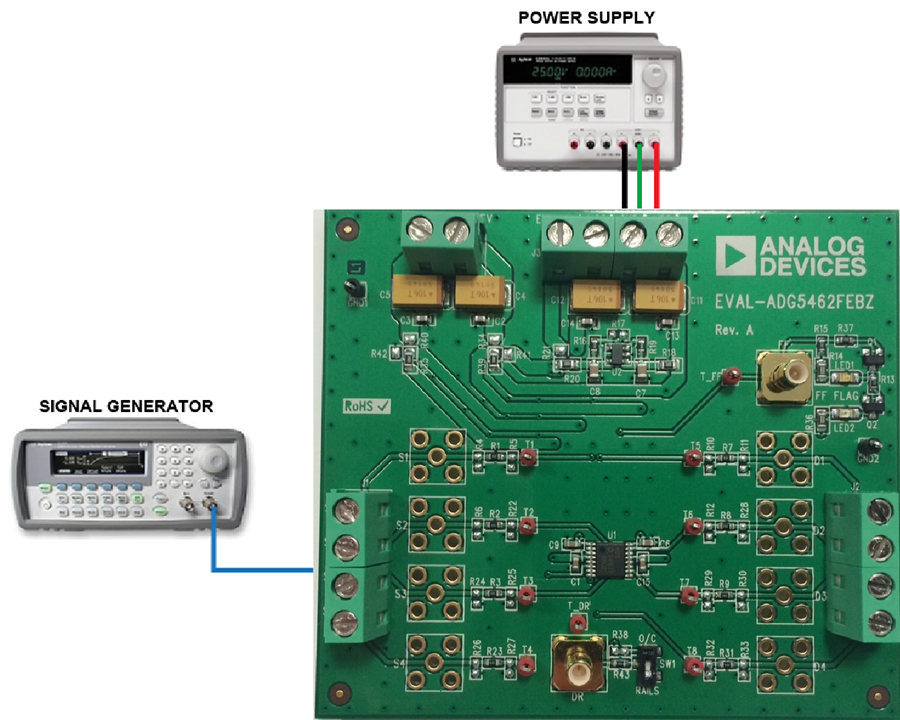

ADG5462F
User Defined Fault Protection and Detection, 10 Ω RON, Quad Channel Protector

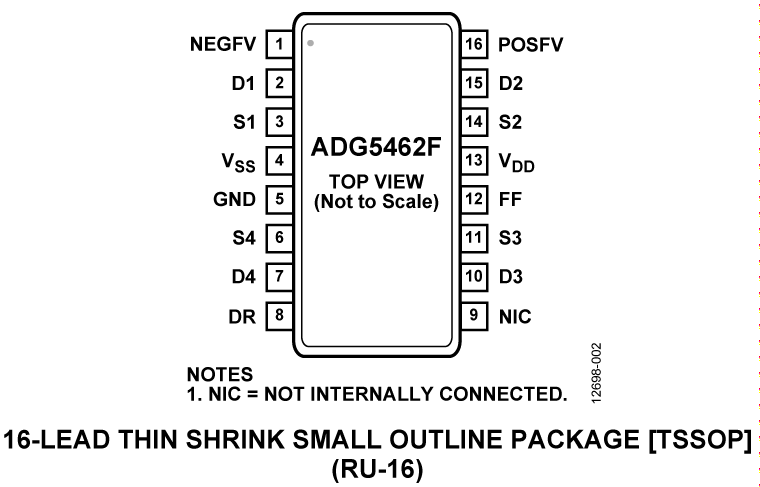

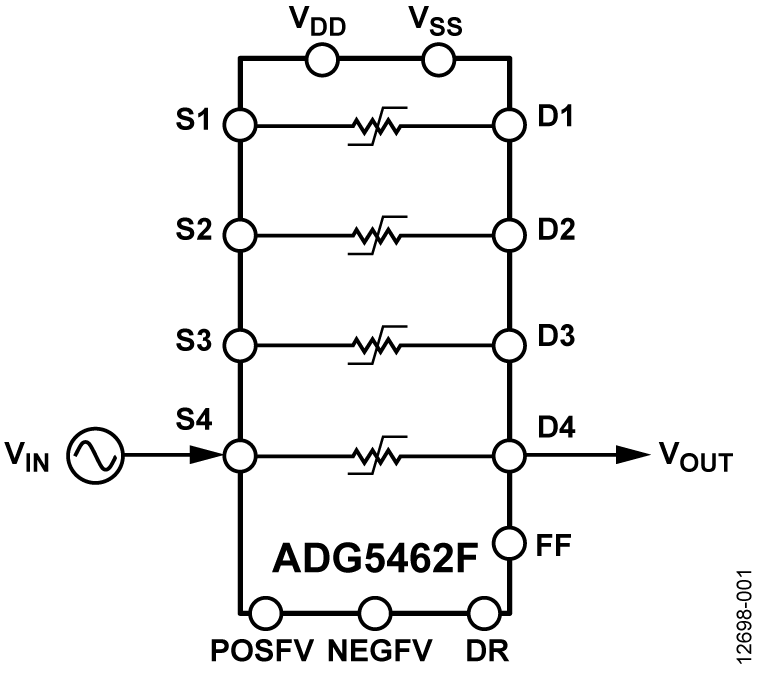

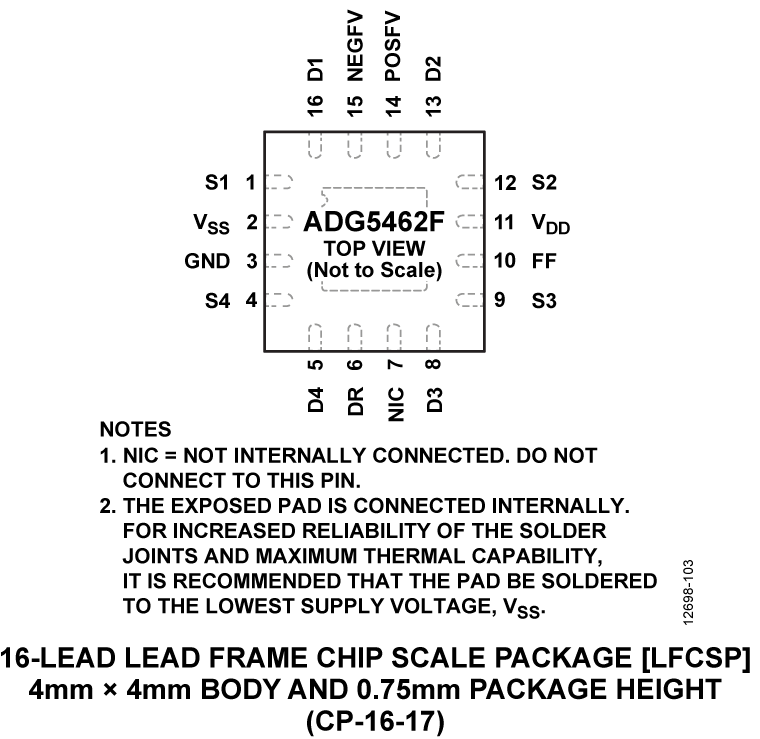

ADG5462F Functional Block Diagram ADG5462F Pin Configuration ADG5462F Pin Configuration
