ADF4107

PRODUCTION

7 GHz integer-N PLL

Data Sheet (Rev. D) Product Selection Table

Part Models: 6
1ku List Price: Starting From $3.61

Viewing:

Part Details

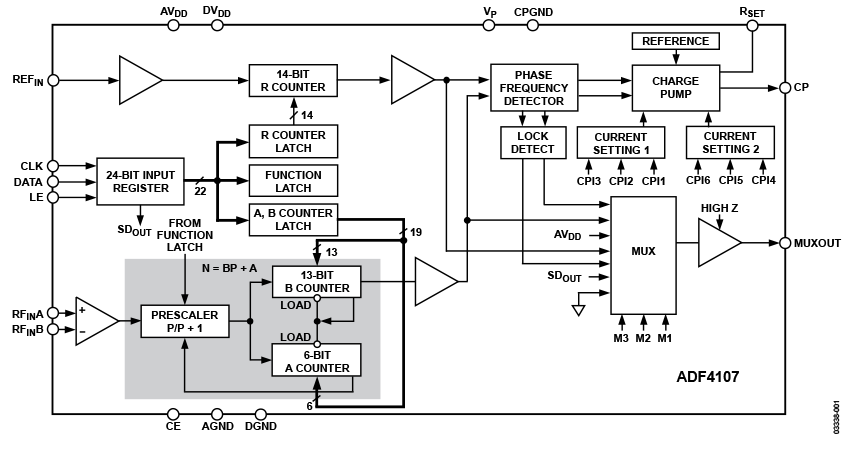

7.0 GHz bandwidth
2.7 V to 3.3 V power supply
Separate charge pump supply (VP) allows extended tuning voltage in 3 V systems
Programmable dual-modulus prescaler 8/9, 16/17, 32/33, 64/65
Programmable charge pump currents
Programmable antibacklash pulsewidth
3-wire serial interface
Analog and digital lock detect
Hardware and software power-down mode

Part Models: 6
1ku List Price: Starting From $3.61

Documentation

Frequently Asked Question 1

FAQ 05/19/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

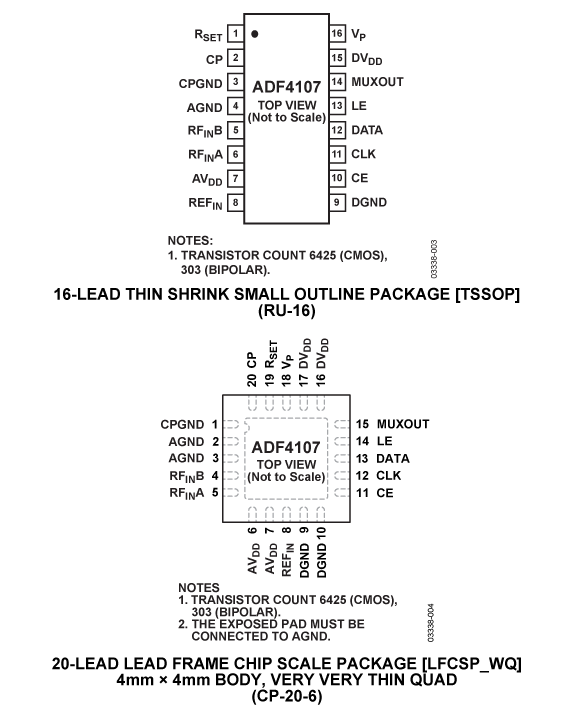

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4107BCPZ	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4107BCPZ-REEL	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4107BCPZ-REEL7	20-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4107BRUZ	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4107BRUZ-REEL	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4107BRUZ-REEL7	16-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 5, 2022 - 21_0271 Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
		PCN21_0271_Form Material_Report Detailed Change Description Qualification Results Summary
ADF4107BCPZ	PRODUCTION
ADF4107BCPZ-REEL	PRODUCTION
ADF4107BCPZ-REEL7	PRODUCTION
Oct 18, 2016 - 16_0036 Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products
		PCN16_0036_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report
ADF4107BCPZ	PRODUCTION
ADF4107BCPZ-REEL	PRODUCTION
ADF4107BCPZ-REEL7	PRODUCTION
Aug 6, 2014 - 13_0230 Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China
		PCN13_0230_Form Material_Report Detailed Change Description Qualification Results Summary Test Correlation Report
ADF4107BCPZ	PRODUCTION
ADF4107BCPZ-REEL	PRODUCTION
ADF4107BCPZ-REEL7	PRODUCTION
Nov 9, 2011 - 11_0241 Conversion of Select LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to STATS ChipPAC Malaysia.
		PCN11_0241_Form Material_Report Detailed Change Description Marking Comparison Package Outline Drawing Qualification Report Summary
ADF4107BCPZ	PRODUCTION
ADF4107BCPZ-REEL	PRODUCTION
ADF4107BCPZ-REEL7	PRODUCTION
Oct 26, 2011 - 11_0020 Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to StatsChippac Malaysia.
		PCN11_0020_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
ADF4107BCPZ	PRODUCTION
ADF4107BCPZ-REEL	PRODUCTION
ADF4107BCPZ-REEL7	PRODUCTION
Mar 14, 2011 - 11_0045 Addition of STATSChipPAC Malaysia as an Alternate Test Site for LFCSP packages.
		PCN11_0045_Form Material_Report
ADF4107BCPZ	PRODUCTION
ADF4107BCPZ-REEL	PRODUCTION
ADF4107BCPZ-REEL7	PRODUCTION
Feb 15, 2010 - 07_0061 LFCSP Package Manufacturing Line Transfer from Amkor Korea to Amkor PRC
		Material_Report Material_Report PCN_07_0061_RevB_China PCN_07_0061_RevB_Korea PCN07_0061_Form
ADF4107BCPZ	PRODUCTION
ADF4107BCPZ-REEL	PRODUCTION
ADF4107BCPZ-REEL7	PRODUCTION
Feb 11, 2011 - 10_0005 Halogen Free Material Change for TSSOP Products Assembled at Amkor
		PCN10_0005_Form Material_Report Reliability Report
ADF4107BRUZ	PRODUCTION
ADF4107BRUZ-REEL	PRODUCTION
ADF4107BRUZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Frequency Dividers & Multipliers 1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
LDO Linear Regulators 3
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator

Operational Amplifiers 1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier
Switching Regulators & Controllers 1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit

Tools & Simulations

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

Evaluation Kits

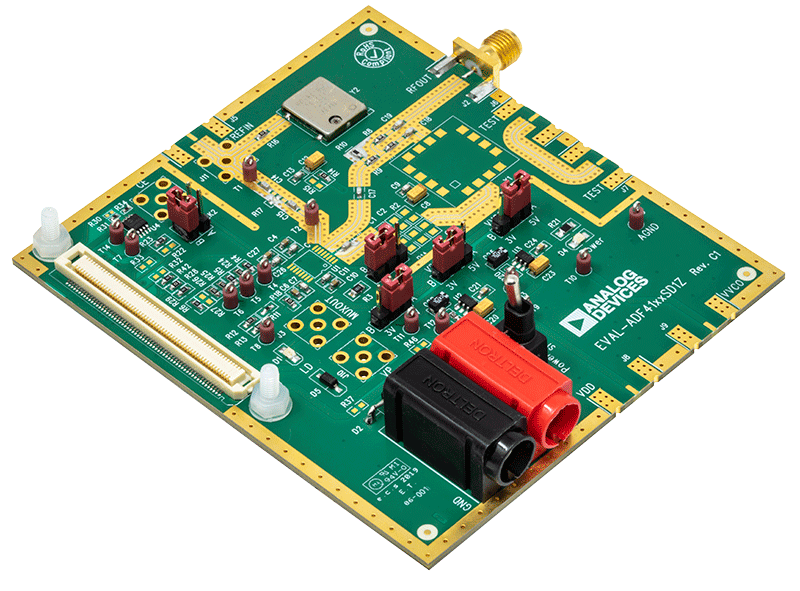

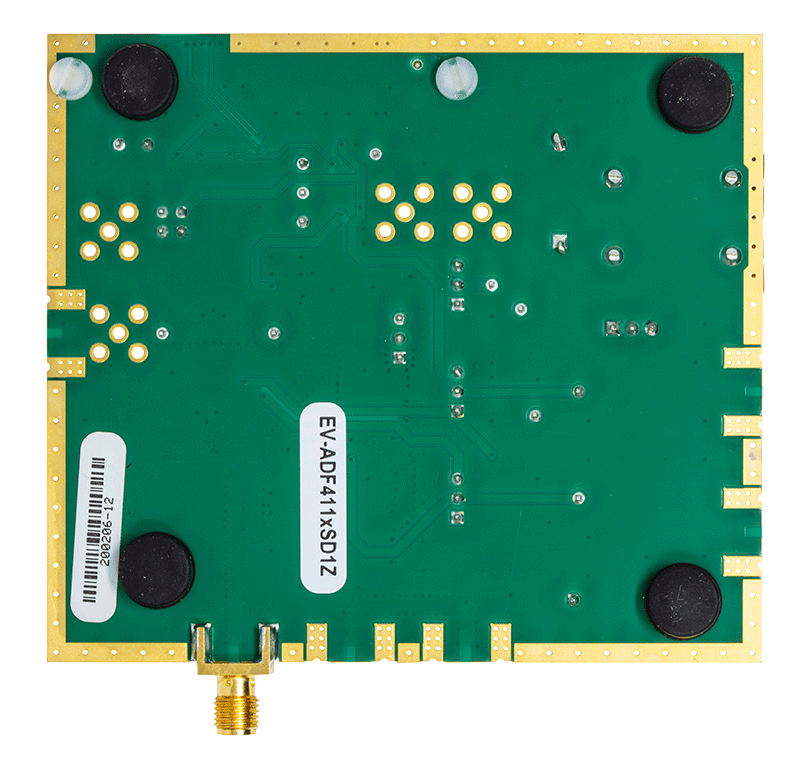

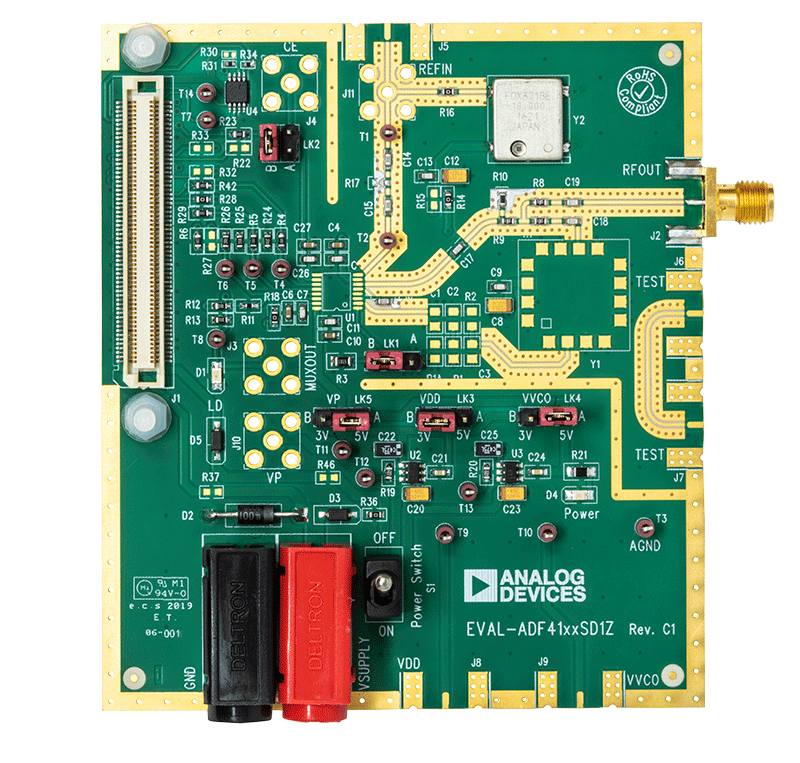

ADF4107 Evaluation Board
