ADAR3007

RECOMMENDED FOR NEW DESIGNS

ADAR3007 13.75GHz to 14.6 GHz 4-beam/4-element Ku band Beamformer

Product Selection Table

Part Models: 4
1ku List Price: Starting From $250.38

Viewing:

Part Details

13.75 GHz to 14.6 GHz frequency range
Low power dissipation (<12 mW per channel)
4-beam/4-element beamforming IC
Configurable for transmit or receive operation
Programmable phase shifter and step attenuator for beam steering
Internal memory for storing beam positions
User programmable sequencer for quick and efficient beam state selection

Update, reset, & mute beam commands issued via pins or SPI
Supports beam hopping and raster scanning

Integrated ADC for:

Temperature sensor
General analog inputs

Programmable bias modes
16 chip parallel addressability over 4-wire SPI interface

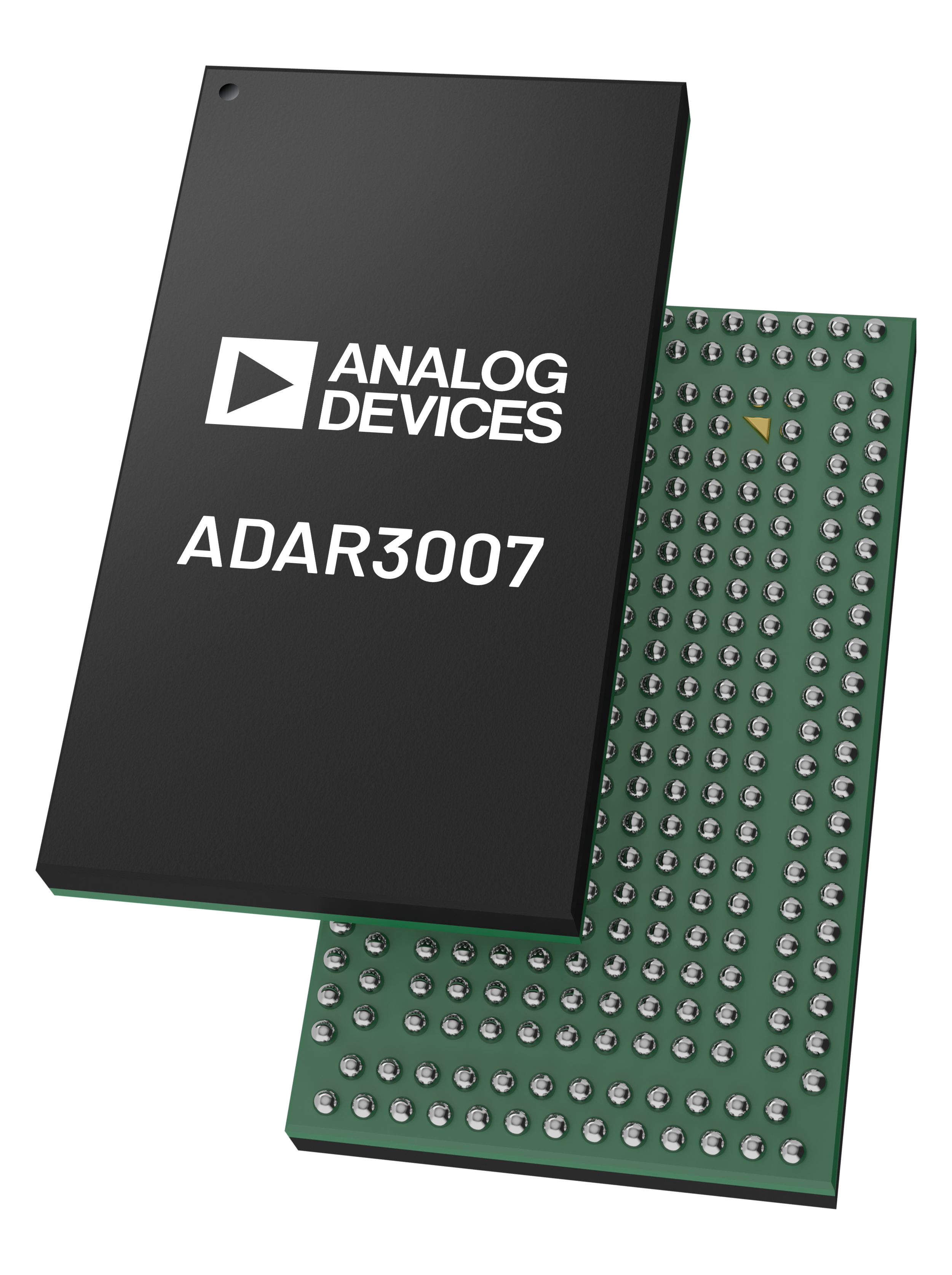

Easy to use BGA package

Part Models: 4
1ku List Price: Starting From $250.38

Documentation

Technical Articles 1

Overcoming Common Planar Phased Array Circuit Design Challenges 06/15/2023

Request an NDA

Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA).

Request an NDA

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADAR3007ABCZ	CHIP SCALE BGA	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADAR3007ABCZ-CSL	CHIP SCALE BGA	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADAR3007ABCZ-RL	CHIP SCALE BGA	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADAR3007ABCZRL-CSL	CHIP SCALE BGA	Material Declaration Reliablity Data	Ultra Librarian SamacSys
