ADAQ8092
RECOMMENDED FOR NEW DESIGNS14-Bit, 105 MSPS, μModule
- Part Models
- 1
- 1ku List Price
- Starting From $61.69
Part Details
- Dual-channel simultaneously sampling ADC
- Integrated differential amplifier/ADC driver
- Single-ended to differential conversion
- Package footprint, 7 mm × 6 mm, 72-ball CSP_BGA
- 6× footprint reduction vs. discrete solution
- On-chip reference circuitry with VOCM generation
- CMOS, DDR CMOS, or DDR LVDS outputs
- Optional data output randomizer
- Optional clock duty-cycle stabilizer
- Shutdown and nap modes
- Serial SPI port for configuration

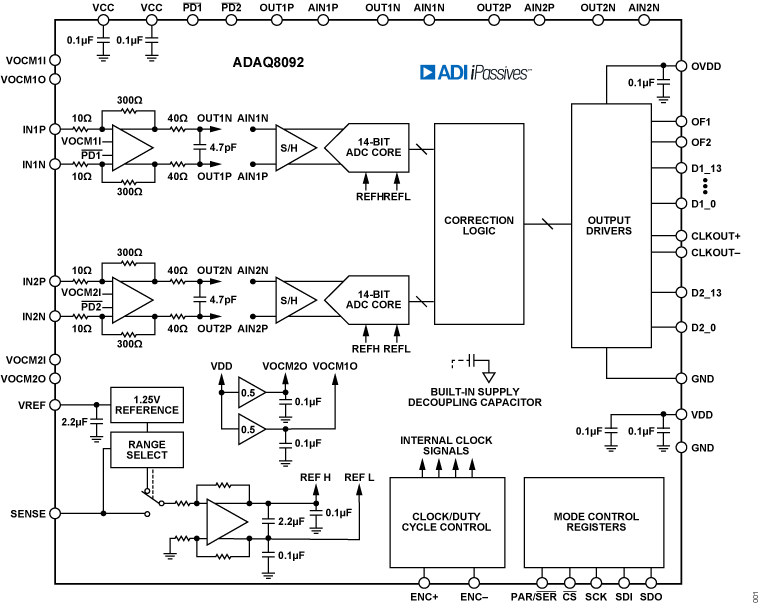

The ADAQ8092 is a 14-bit, 105 MSPS, high-speed dual-channel data acquisition (DAQ) μModule® solution. The device incorporates signal conditioning, an analog-to-digital (ADC) driver, a voltage reference, and an ADC in a single package via system in package (SiP) technology. μModule solutions simplify the development of high-speed data acquisition systems by transferring the design burden, component selection, optimization, and layout from the designer to the device. The ADAQ8092 enables a 6× footprint reduction.
Built-in power supply decoupling capacitors enhance power supply rejection performance, making it a robust DAQ solution. The operating temperature range of the ADAQ8092 is −40°C to +105°C.
APPLICATIONS
- Communications
- Cellular base stations
Documentation
Data Sheet 1
User Guide 1
Device Drivers 2
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADAQ8092BBCZ | 72-ball CSP-BGA (7 mm x 6 mm x 1.69 mm) |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Device Drivers 2
Evaluation Software 0
Can't find the software or driver you need?
Tools & Simulations
LTpowerCAD
Design tools for the following parts are available in LTpowerCAD:
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits

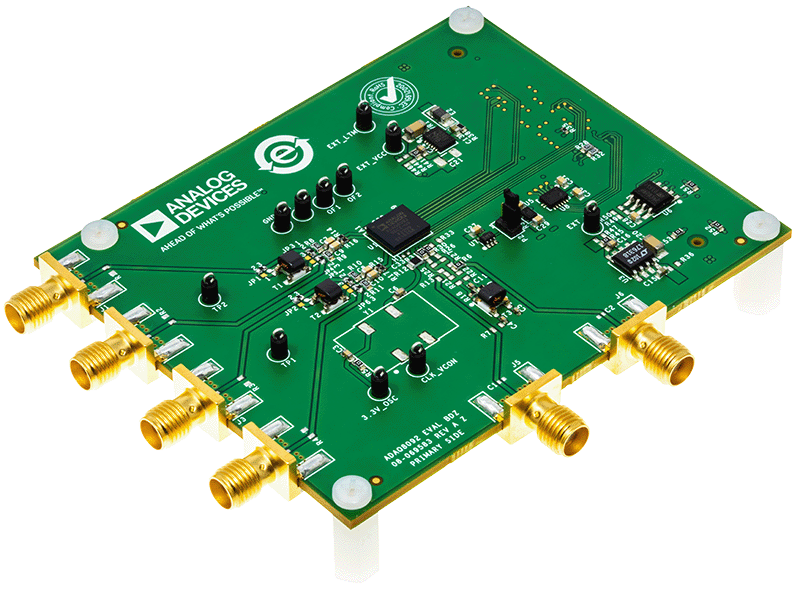

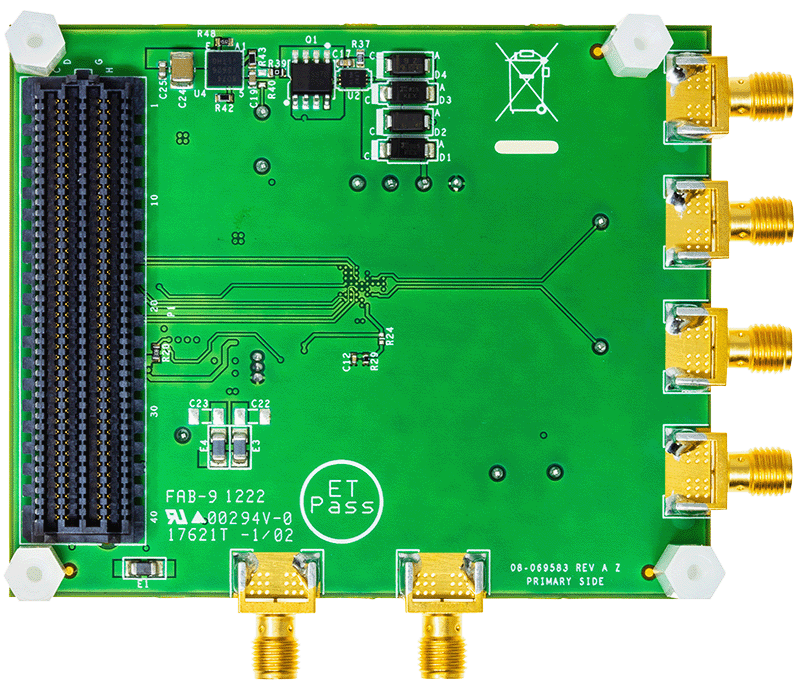

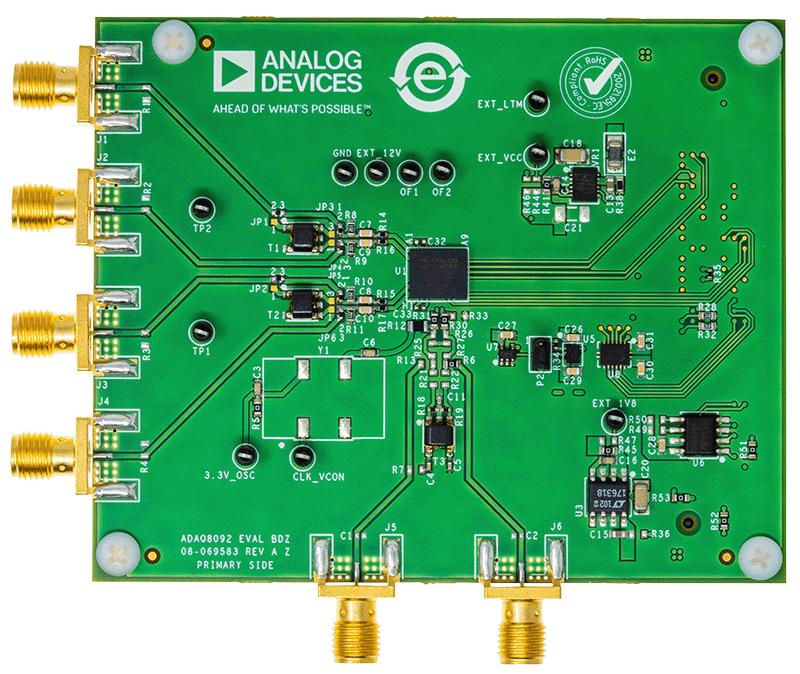

Evaluating the ADAQ8092 Dual Channel, 105MSPS, 14-Bit, µModule Data Acquisition Solution
