ADAQ23875
RECOMMENDED FOR NEW DESIGNS16-Bit, 15 MSPS, μModule Data Acquisition Solution
- Part Models
- 1
- 1ku List Price
- Starting From $32.43
Part Details
- Integrated fully differential ADC driver with signal scaling
- Wide input common range
- High common-mode rejection
- Single-ended to differential conversion
- ±2.048 V input range with 4.096 V REFBUF
- Critical passive components
- 0.005% precision matched resistor array for FDA

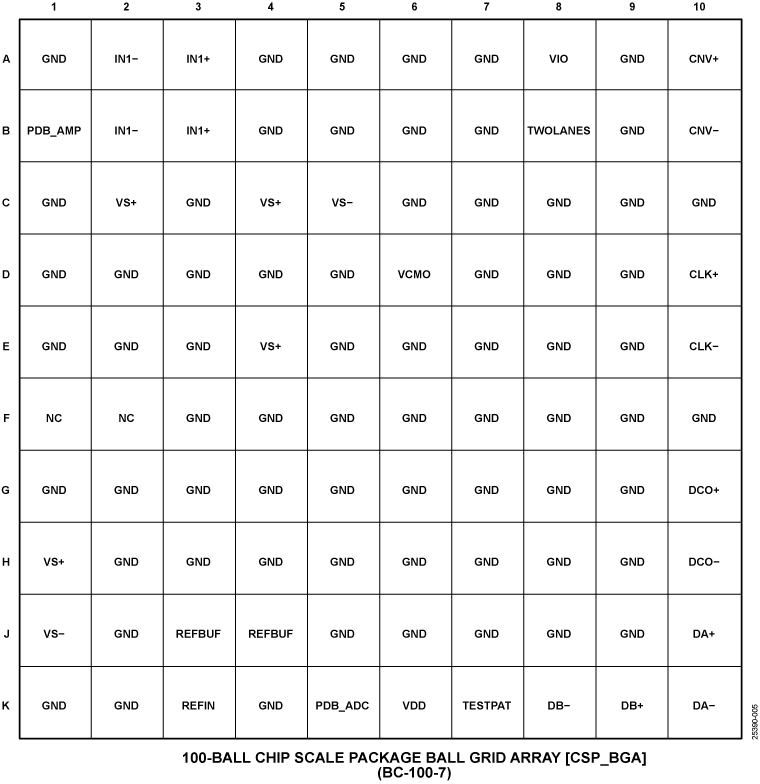

- 9 mm × 9 mm, 0.8 mm pitch, 100-ball BGA package
- 4× footprint reduction versus discrete solution
- Low power, dynamic power scaling, power-down mode
- 143 mW typical at 15 MSPS
- Throughput: 15 MSPS, no pipeline delay
- INL: ±0.4 LSB typical, ±1 LSB maximum
- SINAD: 89 dB typical at 1 kHz
- THD: −115 dB at 1 kHz, −106 dB at 400 kHz
- Gain error: 0.005% FS typical
- Gain error drift: ±1 ppm/°C maximum
- On-board reference buffer with VCMO generation
- Serial LVDS interface
- Wide operating temperature range: −40°C to +85°C
The ADAQ23875 is a precision, high speed, μModule® data acquisition solution that reduces the development cycle of a precision measurement systems by transferring the design burden of component selection, optimization, and layout from the designer to the device.

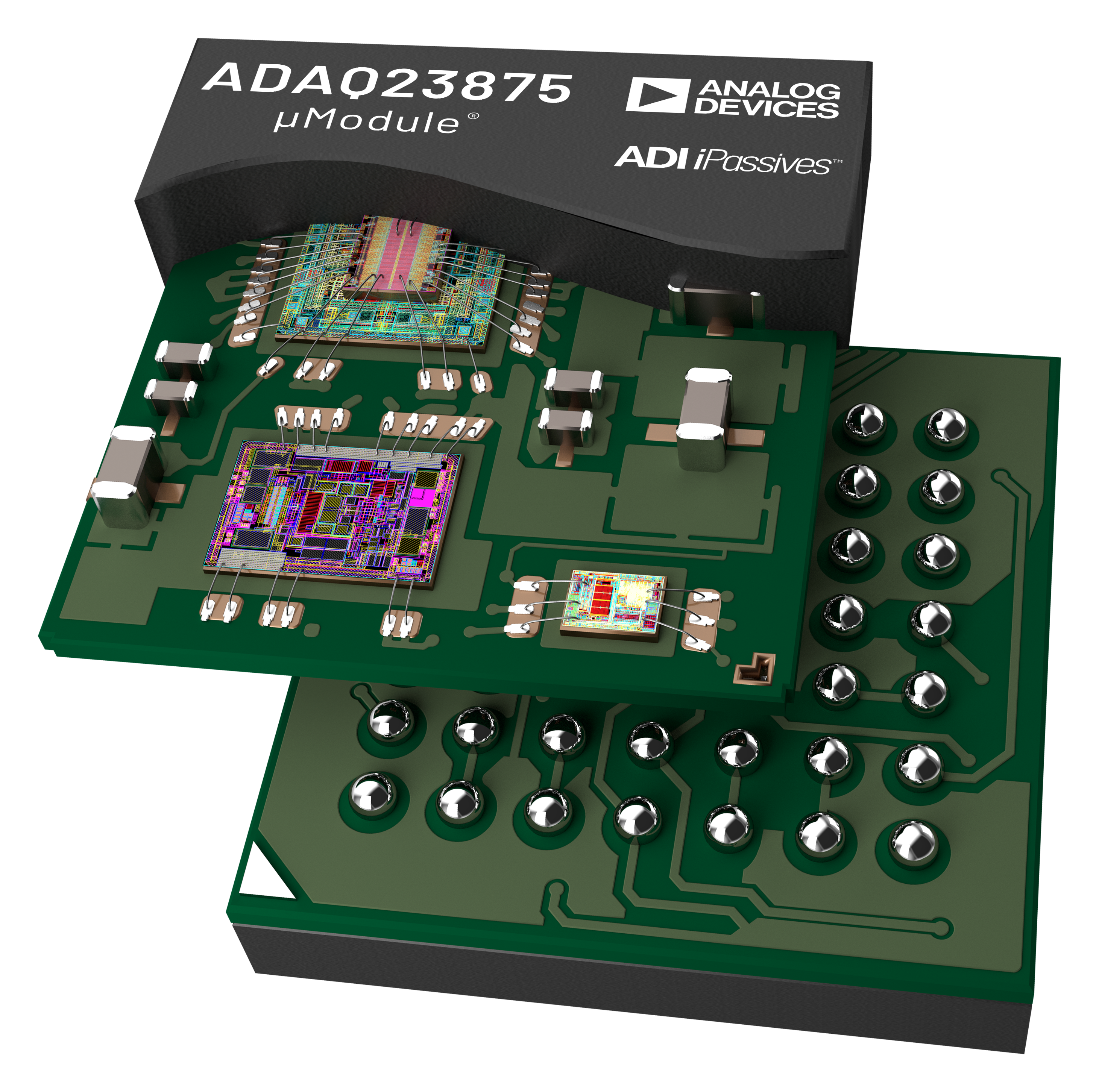

Using system-in-package (SIP) technology, the ADAQ23875 reduces end system component count by combining multiple common signal processing and conditioning blocks in a single device, solving many design challenges. These blocks include a low noise, fully differential analog-to-digital converter (ADC) driver (FDA), a stable reference buffer, and a high speed, 16-bit, 15 MSPS successive approximation register (SAR) ADC.
Using Analog Devices, Inc., iPassives® technology, the ADAQ23875 also incorporates crucial passive components with superior matching and drift characteristics to minimize temperature dependent error sources and to offer optimized performance (see Figure 1). The fast settling of the ADC driver stage, with fully differential or single-ended to differential input and no latency of the SAR ADC, provides a unique solution for high channel count multiplexed signal chain architectures and control loop applications.
The small footprint, 9 mm × 9 mm CSP_BGA package enables smaller form factor instruments without sacrificing performance. Single, 5 V supply operation is possible while achieving optimum performance from the device. The ADAQ23875 features a serial low voltage differential signaling (LVDS) digital interface with one-lane or two-lane output modes, allowing the user to optimize the interface data rate for each application. The specified operation of the μModule is from −40°C to +85°C.
APPLICATIONS
- ATE
- Data acquisition
- Hardware in the Loop (HiL)
- Power analyzers
- Nondestructive test (acoustic emissions)
- Mass spectrometry
- Travelling wave fault location
- Medical imaging and instruments
- Ultrasonic flow meters
Documentation
Data Sheet 1
User Guide 2
Video 8
Device Drivers 1
Analog Dialogue 1
Webcast 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADAQ23875BBCZ | 100-Ball CSP-BGA (9mm x 9mm x 2.268mm) |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Code Examples 1
Device Drivers 1
Evaluation Software 0
Can't find the software or driver you need?
Tools & Simulations
LTspice 3
- ADAQ23875 - Integrated/Special Purpose A/D Converters
- ADAQ23875 Demo Circuit – 16-/18-bit, 15MSPS µModule Data Acquisition Solution
- Density Optimized LTspice Signal Chain Simulation
Models for the following parts are available in LTspice:
- ADAQ23875
Signal Chain Designer - BETA
Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.
Open ToolIBIS Model 1
LTPowerPlanner 1
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits

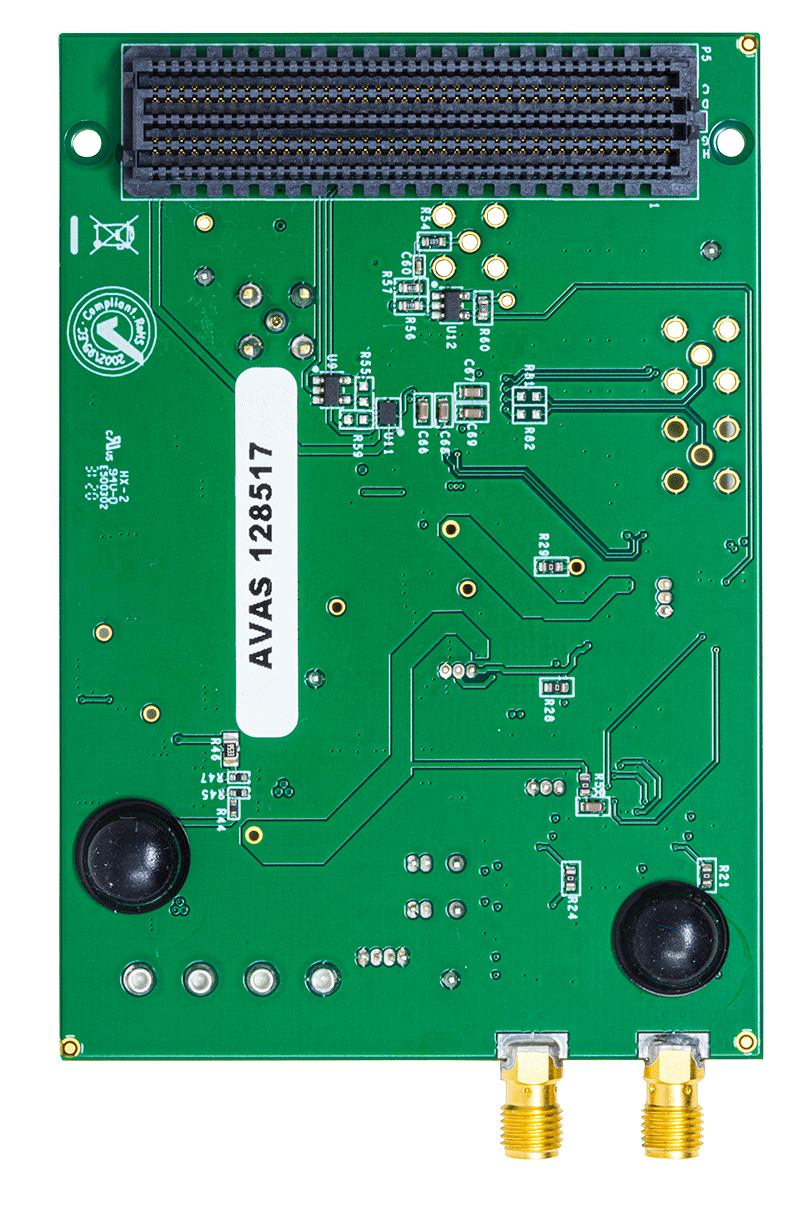

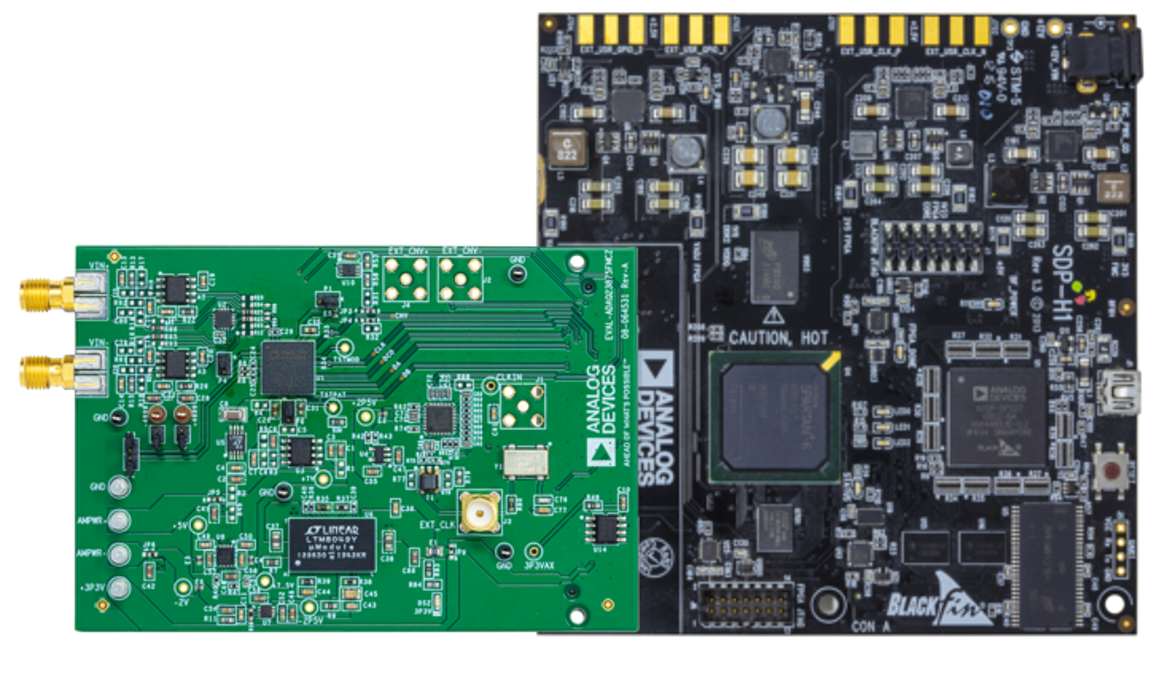

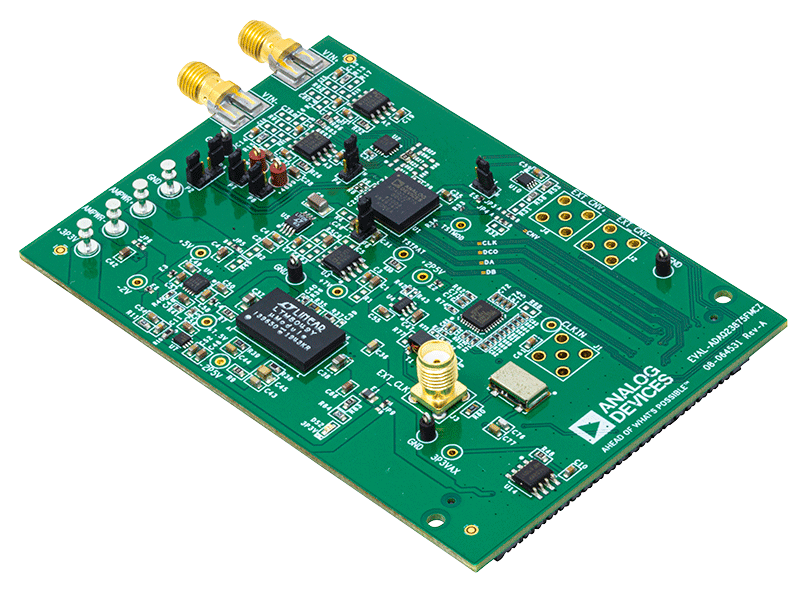

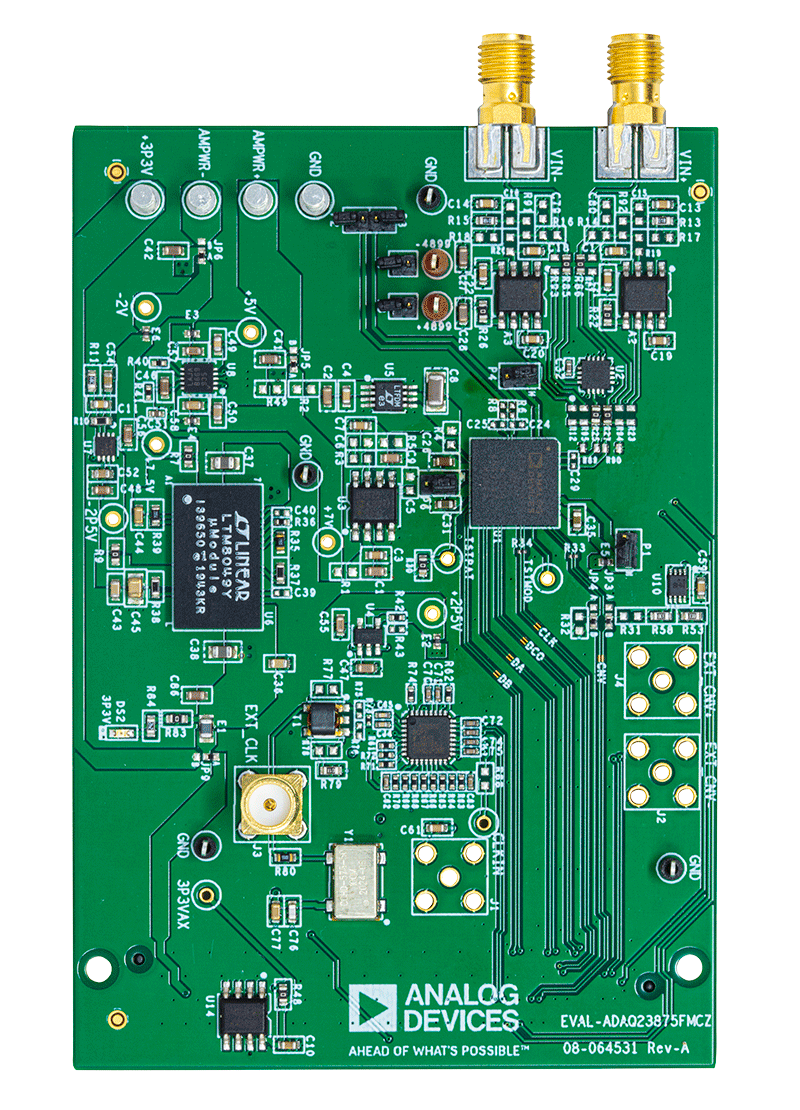

Evaluating the ADAQ23875 15MSPS, 16-Bit, μModule Data Acquisition Solution
