ADA4528-2

RECOMMENDED FOR NEW DESIGNS

Precision, Ultralow Noise, RRIO, Zero-Drift Dual Op Amp

Data Sheet (Rev. F)

Part Models: 7
1ku List Price: Starting From $1.87

Viewing:

Part Details

Low offset voltage: 2.5 µV maximum
Low offset voltage drift: 0.015 μV/°C maximum
Low noise

5.6 nV/√Hz at f = 1 kHz, A_V = +100
97 nV p-p at f = 0.1 Hz to 10 Hz, A_V = +100

Open-loop gain: 130 dB minimum
CMRR: 135 dB minimum
PSRR: 130 dB minimum
Unity-gain crossover: 4 MHz
Gain bandwidth product: 3 MHz at A_V = +100
−3 dB closed-loop bandwidth: 6.2 MHz
See data sheet for additional features

ADA4528-2 Supports defense and aerospace applications (ADEQ standard)

Download ADA4528-2-EP Data Sheet (pdf)
Extended industrial temperature range: −55°C to +125°C
Controlled manufacturing baseline
1 assembly/test site
1 fabrication site
Product change notification
Qualification data available upon request
V62/16615 DSCC Drawing Number

Part Models: 7
1ku List Price: Starting From $1.87

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

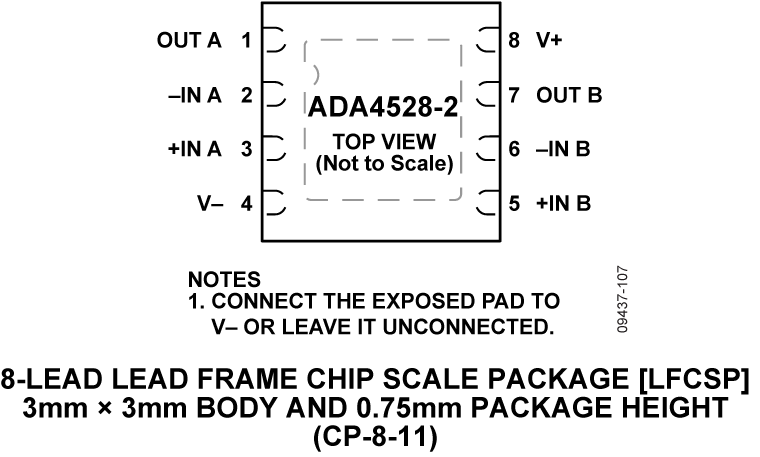

ADA4528-2ACPZ-R7	8-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4528-2ACPZ-RL	8-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

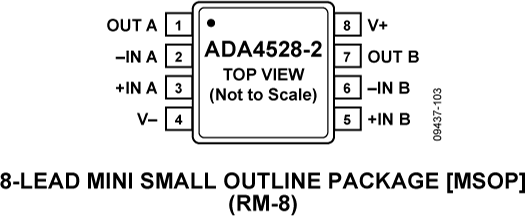

ADA4528-2ARMZ	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4528-2ARMZ-R7	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4528-2ARMZ-RL	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4528-2TCPZ-EP	8-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4528-2TCPZ-EPR7	8-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 6, 2014 - 13_0223 Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China
		PCN13_0223_Form Material_Report Detailed Change Description Qualification Results Summary Test Correlation Report
ADA4528-2ACPZ-R7	PRODUCTION
ADA4528-2ACPZ-RL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADA4528-2

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

Signal Chain Designer - BETA

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

SPICE Model 1

ADA4528 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

EVAL-OPAMP-2 Evaluation Board

Buy Now View Details

Product Details

The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.
