AD9956

RECOMMENDED FOR NEW DESIGNS

2.7 GHz DDS-Based AgileRF™ Synthesizer

Data Sheet (Rev. B) Product Selection Table

Part Models: 1
1ku List Price: Starting From $26.64

Viewing:

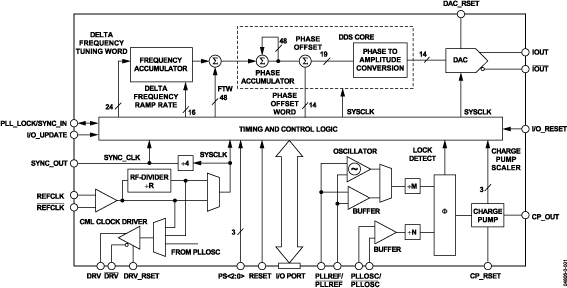

Part Details

400 MSPS Internal DDS Clock Speed
48-bit frequency tuning word
14-bit Programmable Phase Offset
Integrated 14-bit DAC
- Excellent Dynamic Performance
- Phase noise ≤ 135 dBc/Hz @ 1 KHz offset
- −80 dB SFDR @ 160 MHz (±100 KHz offset I_OUT)
25 Mb/s write-speed serial I/O control
655 MHz programmable input dividers for the phase
- frequency detector (÷M, ÷N) {M, N = 1..16} (bypassable)
Programmable RF divider (÷R) {R = 1, 2, 4, 8} (bypassable)

8 phase/frequency profiles
1.8 V supply for device operation
3.3 V supply for I/O and charge pump
Software controlled power-down
48-lead LFCSP package
Automatic linear frequency sweeping capability (in DDS)
Programmable charge pump current (up to 4 mA)
Phase modulation capability
Multichip synchronization
Dual-mode PLL lock detect
655 MHz CML-mode PECL-compliant driver
