AD9432
PRODUCTION12-Bit, 105 MSPS Analog-to-Digital Converter
- Part Models
- 4
- 1ku List Price
- Starting From $49.38
Part Details
|
|

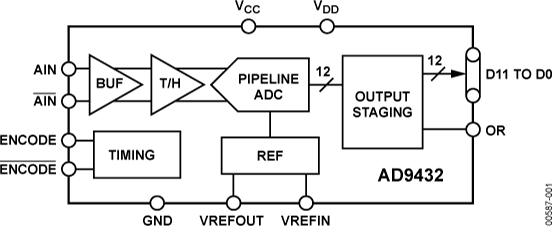

The AD9432 is a 12-bit, monolithic sampling analog-to-digital converter (ADC) with an on-chip track-and-hold circuit and is optimized for high speed conversion and ease of use. The product operates up to a 105 MSPS conversion rate with outstanding dynamic performance over its full operating range.
The ADC requires only a single 5.0 V power supply and a 105 MHz encode clock for full performance operation. No external reference or driver components are required for many applications. The digital outputs are TTL-/CMOS-compatible, and a separate output power supply pin supports interfacing with 3.3 V logic. The encode input supports either differential or single-ended mode and is TTL-/CMOS-compatible.

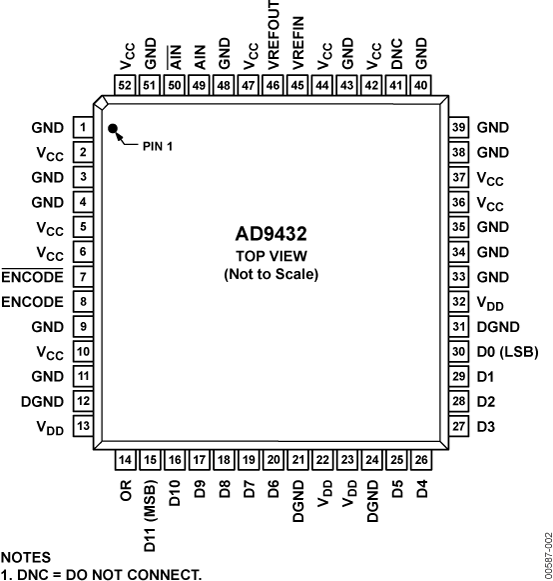

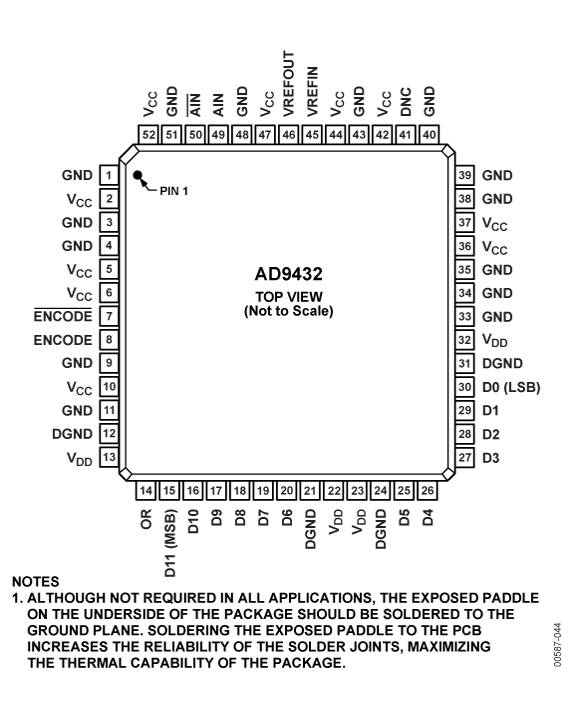

Fabricated on an advanced BiCMOS process, the AD9432 is available in a 52-lead low profile quad flat package (LQFP) and in a 52-lead thin quad flat package (TQFP_EP). The AD9432 is specified over the industrial temperature range of −40°C to +85°C.
Documentation
Data Sheet 1
Application Note 9
Technical Articles 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD9432BSTZ-105 | 52-Lead LQFP (10mm x 10mm) | ||
| AD9432BSTZ-80 | 52-Lead LQFP (10mm x 10mm) | ||
| AD9432BSVZ-105 | 52-Lead TQFP (10mm x 10mm w/ EP) | ||
| AD9432BSVZ-80 | 52-Lead TQFP (10mm x 10mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Oct 28, 2009 - 08_0008 Qualification of 8" 0.6um BiCMOS wafer fab process at Analog Devices, Limerick, Ireland. |
||
| AD9432BSTZ-105 | PRODUCTION | |
| AD9432BSTZ-80 | PRODUCTION | |
|
Jan 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages |
||
| AD9432BSTZ-105 | PRODUCTION | |
| AD9432BSTZ-80 | PRODUCTION | |
|
Jun 16, 2009 - 09_0027 Conversion to Laser Mark for the LQFP Packages (Single Grades) |
||
| AD9432BSVZ-105 | PRODUCTION | |
| AD9432BSVZ-80 | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
