AD9361S
RECOMMENDED FOR NEW DESIGNSRF Agile Transceiver
- Part Models
- 2
- 1ku List Price
- Starting From $407.51
Part Details
- RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
- Transmit band: 46.875 MHz to 6.0 GHz
- Receive band: 70 MHz to 6.0 GHz
- Dual receivers: 6 differential inputs
- Superior receiver sensitivity with a NF of 2 dB at 800 MHz LO
- Receive gain control
- Real-time monitor and control signals for manual gain
- Independent AGC
- Dual transmitters: 4 differential outputs
- Highly linear broadband transmitter
- Transmit EVM: −40 dB (typical) at 800 MHz
- Transmit noise: −157 dBm/Hz (typical)
- Transmit monitor: 66 dB dynamic range (typical) with 1 dB accuracy
- Integrated fractional-N synthesizers
- 2.4 Hz typical LO frequency step size
- Multichip synchronization
- CMOS/LVDS digital interface
-
Commercial Space Features
- Supports aerospace applications
- Certificate of Conformance
- Wafer diffusion lot traceability
- Qualification based on flows per NASA PEM-INST-001 and SAE AS6294
- Burn-in, life test, and deltas analysis
- Radiation lot acceptance test (RLAT)
- Total ionizing dose (TID)
- Radiation benchmark
- Single event latchup (SEL)
- Outgassing characterization

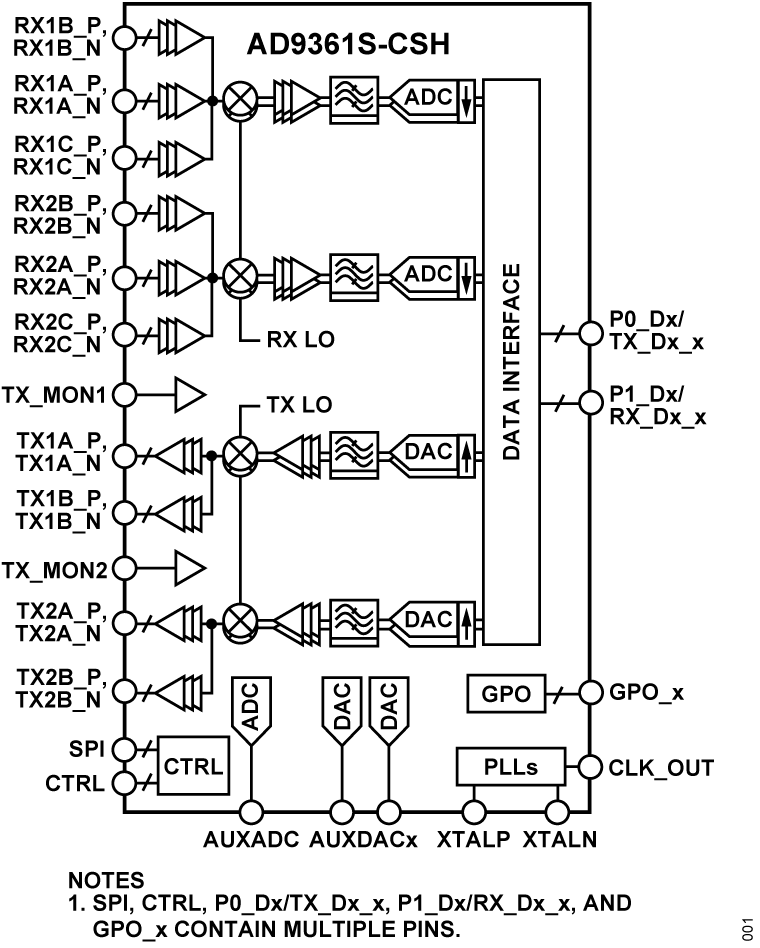

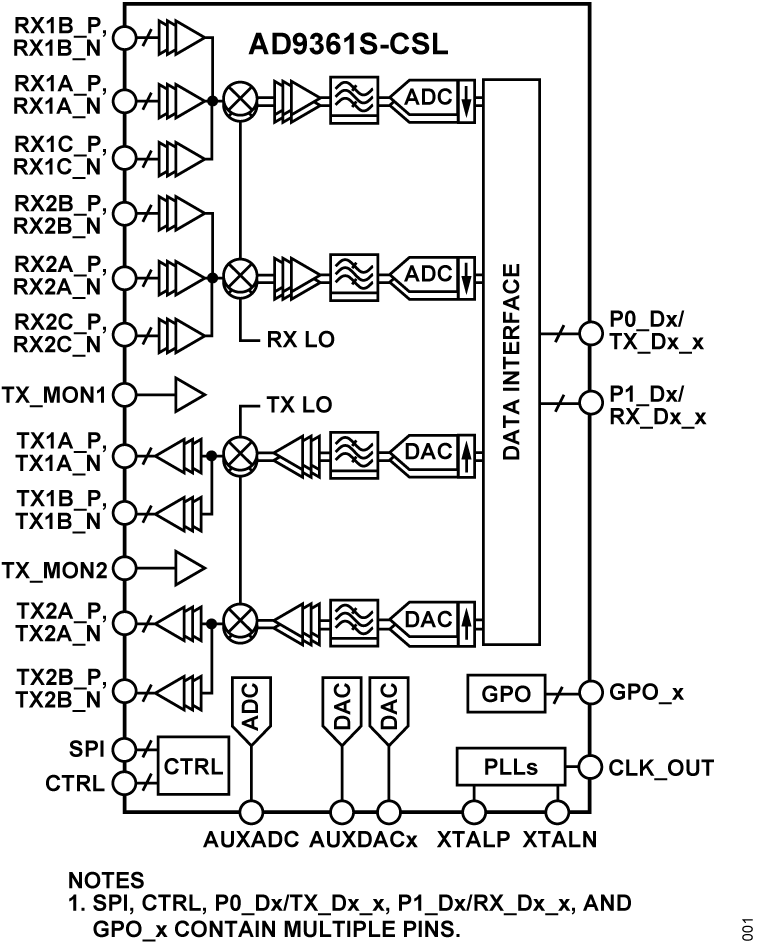

The AD9361S-CSH is a high performance, highly integrated, RF agile transceiver designed for use in 3G and 4G applications. Its programmability and wideband capability make it ideal for a broad range of transceiver applications. The device combines an RF front end with a flexible mixed-signal baseband section and integrated frequency synthesizers, simplifying design-in by providing a configurable digital interface to a processor. The AD9361S-CSH receiver LO operates from 70 MHz to 6.0 GHz and the transmitter LO operates from 46.875 MHz to 6.0 GHz range, covering most licensed and unlicensed bands. Channel bandwidths from less than 200 kHz to 56 MHz are supported.
The two independent direct conversion receivers have state-of-the-art noise figure and linearity. Each receive subsystem includes independent automatic gain control (AGC), dc offset correction, quadrature correction, and digital filtering, thereby eliminating the need for these functions in the digital baseband. The AD9361S-CSH also has flexible manual gain modes that can be externally controlled.
Two high dynamic range analog-to-digital converters (ADCs) per channel digitize the received inphase (I) and quadrature (Q) signals and pass them through configurable decimation filters and 128-tap finite impulse response (FIR) filters to produce a 12-bit output signal at the appropriate sample rate.
The transmitters use a direct conversion architecture that achieves high modulation accuracy with ultralow noise. This transmitter design produces a best-in-class transmit error vector magnitude (EVM) of ≤−40 dB, allowing significant system margin for the external power amplifier (PA) selection. The on-board transmit power monitor can be used as a power detector, enabling highly accurate transmit power measurements.
The fully integrated phase-locked loops (PLLs) provide low power fractional-N frequency synthesis for all receive and transmit channels. Channel isolation, demanded by frequency division duplex (FDD) systems, is integrated into the design. All voltage controlled oscillator (VCO) and loop filter components are integrated.

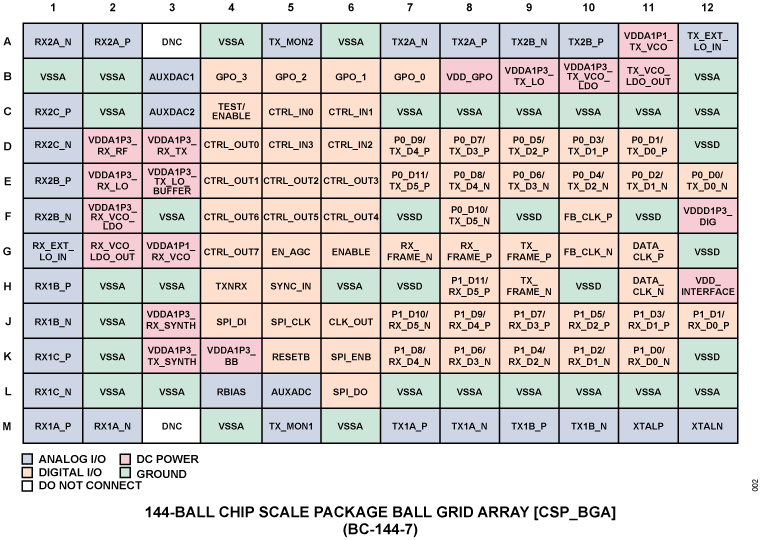

The AD9361S-CSH is packaged in a 10 mm × 10 mm, 144-ball chip scale package ball grid array (CSP_BGA).
Additional application and technical information can be found in the Commercial Space Products Program brochure and the AD9361 data sheet.
Applications
- Low and medium Earth orbit (LEO/MEO) satellites
- Geosynchronous Earth orbit (GEO) satellites
- Avionics
- Point to point communication systems
Documentation
Data Sheet 2
Video 1
High Dose Rate Radiation Reports 2
Single Event Effects Radiation Reports 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
AD9361BBC-CSH | 144-Ball CSPBGA (10mm x 10mm x 1.7mm) | ||
AD9361BBCZ-CSL | 144-Ball CSPBGA (10mm x 10mm x 1.7mm) |
This is the most up-to-date revision of the Data Sheet.
