AD7580
NOT RECOMMENDED FOR NEW DESIGNSLC2MOS 10-Bit Sampling A/D Converter with 10-Bit Parallel Word Data Format
- Part Models
- 1
- 1ku List Price
- price unavailable
Part Details
- 20 µs Conversion Time
- On-Chip Sample-Hold
- 50 kHz Sampling Rate
- 25 kHz Full-Power Input Bandwidth
- Choice of Data Formats
- Single +5 V Supply
- Low Power (50 mW)
- Skinny 24-Pin DIP and 28-Terminal Surface Mount Package

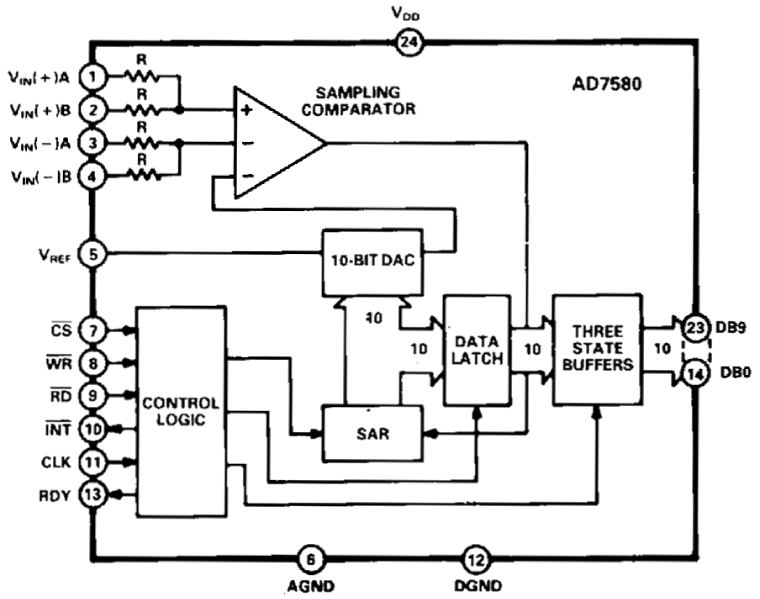

The AD7579 and AD7580 are 10-bit, successive approximation ADCs. They have different analog inputs that will accept unipolar or bipolar input signals while operating from only a single +5 V supply. Input ranges of 0 to +2.5 V, 0 to +5 V and ±2.5 V are possible with no external signal conditioning. Only an external 2.5 V reference and clock and control signals are required to make them operate.
