AD7298-1
PRODUCTION8-Channel, 1 MSPS, 10-Bit SAR ADC
- Part Models
- 2
- 1ku List Price
- Starting From $3.27
Part Details
- 10-bit SAR ADC
8 single-ended inputs
Channel sequencer functionality
Fast throughput of 1 MSPS
Analog input range: 0 V to 2.5 V - Temperature range: −40°C to +125°C
- Specified for VDD of 2.8 V to 3.6V
- Logic voltage VDRIVE = 1.65 V to 3.6 V
- Power-down current : <10 μA
- Internal 2.5 V reference
- Internal power-on reset
- High speed serial interface SPI

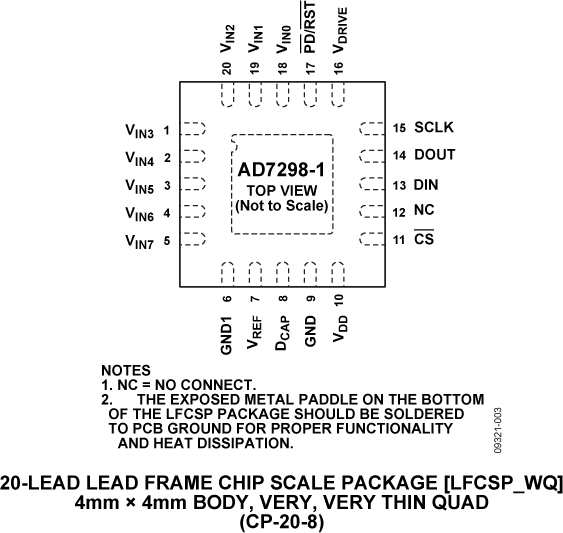

- 20-lead LFCSP
The AD7298-1 is a 10-bit, high speed, low power, 8-channel, successive approximation ADC. The part operates from a single 3.3 V power supply and features throughput rates up to 1 MSPS. The device contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 30 MHz.
The AD7298-1 offers a programmable sequencer, which enables the selection of a preprogrammable sequence of channels for conversion. The device has an on-chip, 2.5 V reference that can be disabled to allow the use of an external reference.
The device offers a 4-wire serial interface compatible with SPI and DSP interface standards.
The AD7298-1 uses advanced design techniques to achieve very low power dissipation at high throughput rates. The part also offers flexible power/throughput rate management options. The part is offered in a 20-lead LFCSP package.
PRODUCT HIGHLIGHTS
- Ideally Suited to Monitoring System Variables in a Variety of Systems. This includes telecommunications, and process and industrial control.
- High Throughput Rate of 1 MSPS with Low Power Consumption.
- Eight Single-Ended Inputs with a Channel Sequencer. A consecutive sequence of channels can be selected on which the ADC cycles and converts.
Documentation
Data Sheet 1
Application Note 1
Technical Articles 1
Tutorial 3
Technical Book 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD7298-1BCPZ | 20-Lead LFCSP (4mm x 4mm w/ EP) | ||
| AD7298-1BCPZ-RL | 20-Lead LFCSP (4mm x 4mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
| No Match Found | ||
|
May 11, 2014 - 13_0231 Assembly Transfer of Select 4x4 and 5x5mm LFCSP Products to STATS ChipPAC China. |
||
| AD7298-1BCPZ | PRODUCTION | |
| AD7298-1BCPZ-RL | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
