MAX40201

RECOMMENDED FOR NEW DESIGNS

Dual-Channel, 0V to 76V Current-Sense Amplifier

Best Current Sense Amp Combination of Wide Voltage Range, Tiny Size and High Precision

Data Sheet (Rev. 6) Product Selection Table

Part Models: 6
1ku List Price: Starting From $2.56

Viewing:

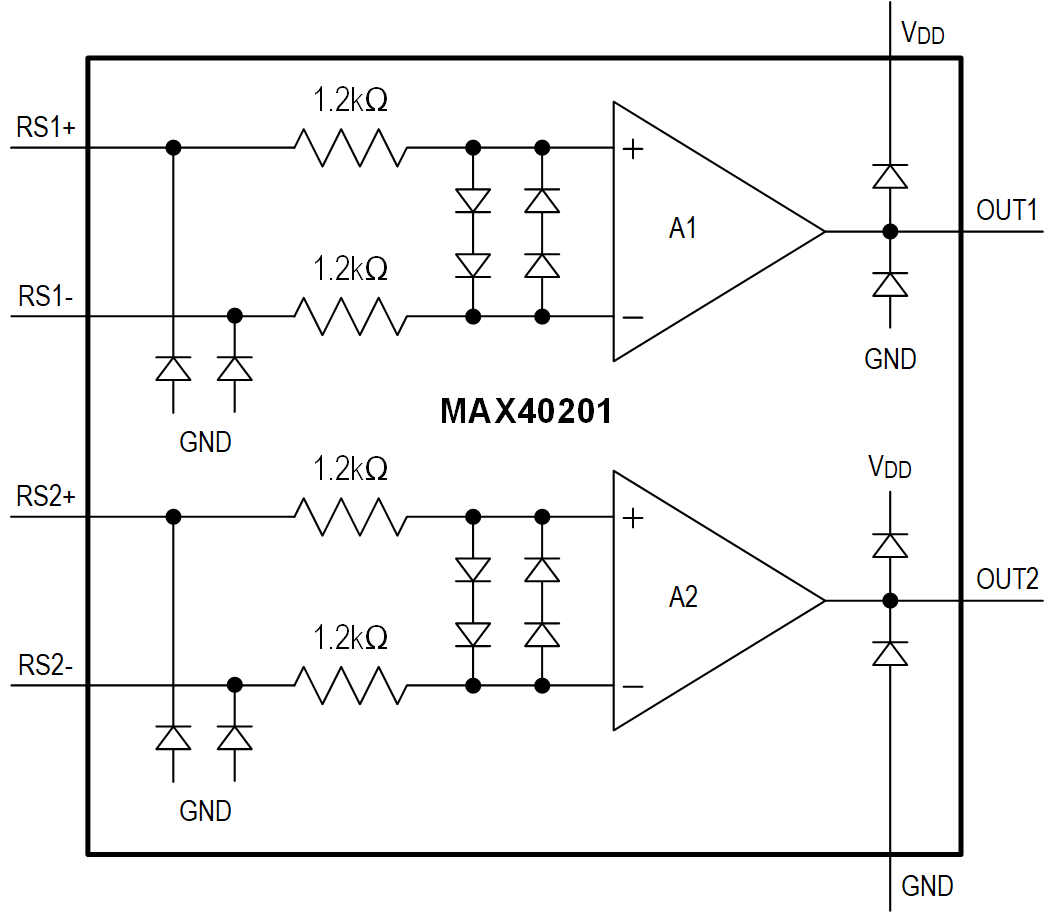

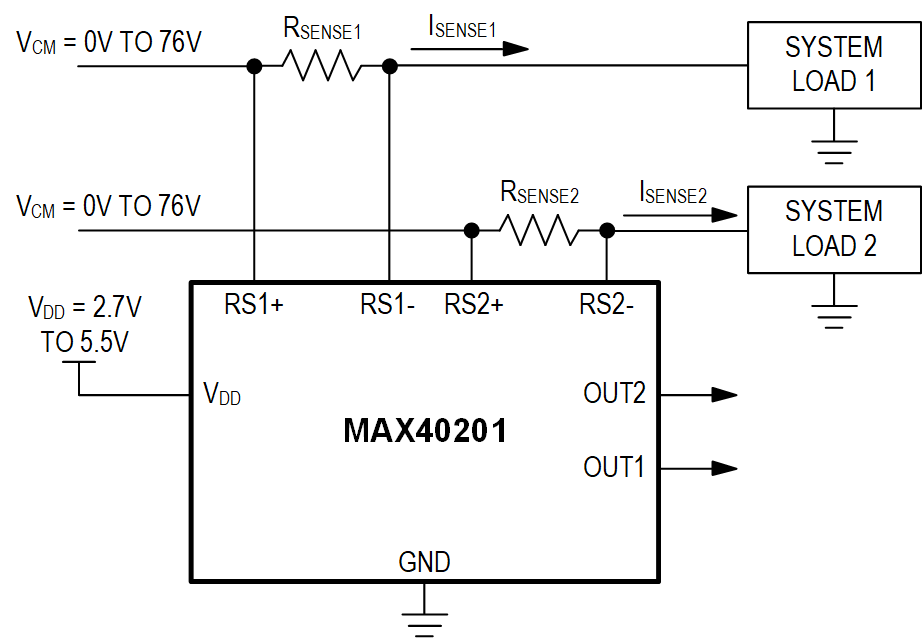

Part Details

0V to 76V Input Common Mode
Low 12µV (max) Input Offset Voltage
Low 0.1% (max) Gain Error
Gain Options
- G = 25V/V (MAX40201T)
- G = 50V/V (MAX40201F)
- G = 100V/V (MAX40201H)
- G = 200V/V (MAX40201W)

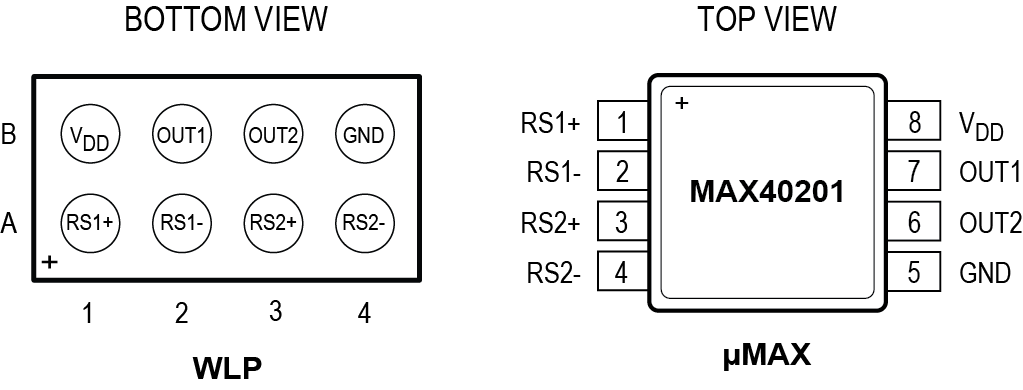

1.3mm x 2mm 8-Bump WLP and 8-Pin μMAX Packages

Part Models: 6
1ku List Price: Starting From $2.56

Documentation

Data Sheet 1

MAX40201: Dual-Channel, 0V to 76V Current-Sense Amplifier Data Sheet (Rev.6) 10/20/2023

Evaluation Design File 1

MAX40201 Gerber File 10/10/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX40201FAUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX40201FAUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX40201WAUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX40201WAUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX40201WAWA+	8-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX40201WAWA+T	8-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Current Sense Amplifiers 3
MAX44285	PRODUCTION	Dual-Channel, High-Precision, High-Voltage, Current-Sense Amplifier
MAX40010	PRODUCTION	76V Precision, High-Voltage, Current-Sense Amplifier
MAX4080	PRODUCTION	76V, High-Side, Current-Sense Amplifiers with Voltage Output

Evaluation Kits

Evaluation Kit for the MAX40201

Buy Now View Details

Features and Benefits

Precision Real-Time Current Monitoring
0V to +76V Input Common-Mode Range
Proven PCB Layout
Fully Assembled and Tested

Product Details

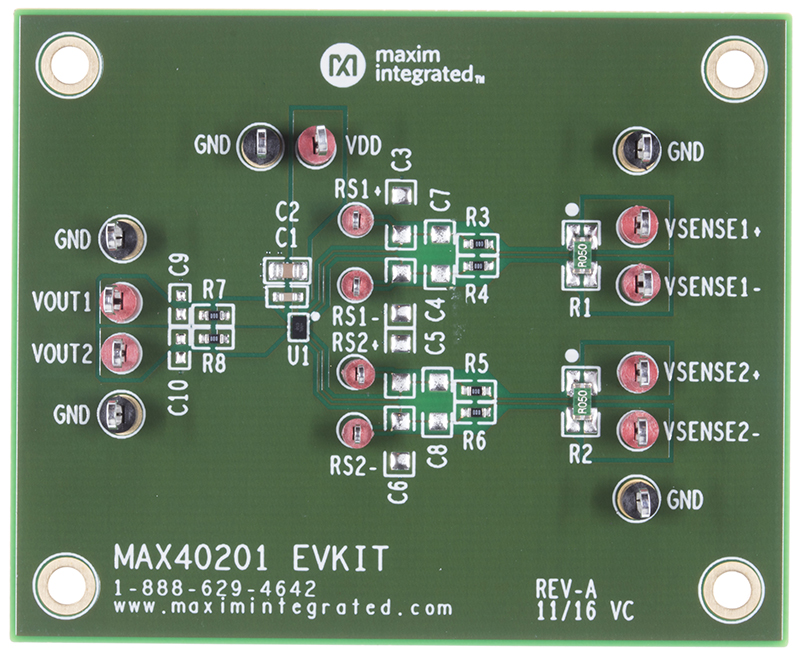

The MAX40201 evaluation kit (EV kit) provides a proven design to evaluate the MAX40201 dual-channel, high-precision, high-voltage, current-sense amplifier. This EV kit demonstrates the MAX40201 in an ultra-small, 1.3mm x 2mm, 8-bump wafer-level package (WLP).

The EV kit PCB comes with a MAX40201WAWA+ installed, which is the 200V/V gain version. Other gain options are available. Contact the factory for the pin-compatible MAX40201TAWA+ (G = 25V/V), MAX40201FAWA+ (G = 50V/V), and MAX40201HAWA+ (G = 100V/V).

Applications

Base Stations and Communication Equipment
Industrial Control and Automation
Power Management Systems
Server Backplanes

Resources

MAX40201EVKIT ODB File - Design Files
11/22/2023
