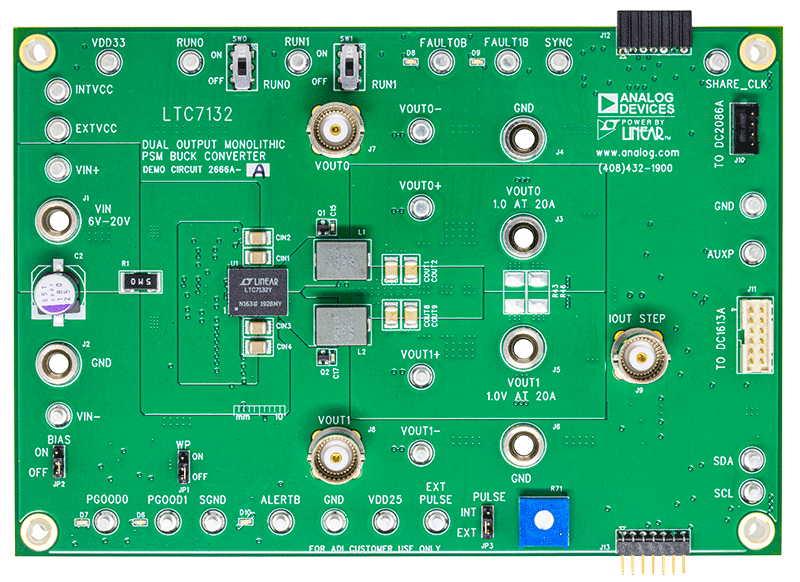

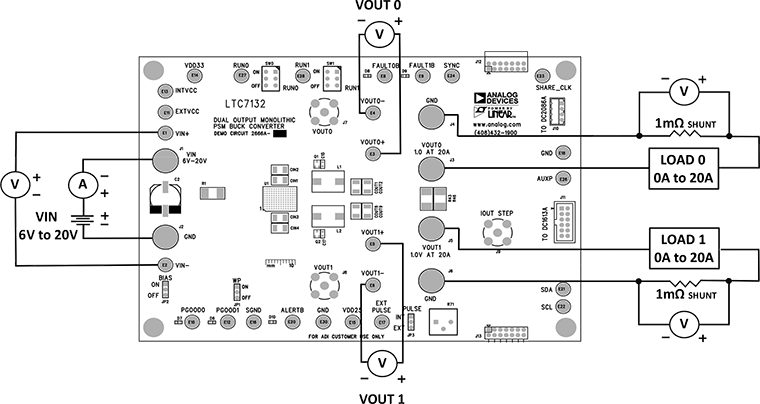

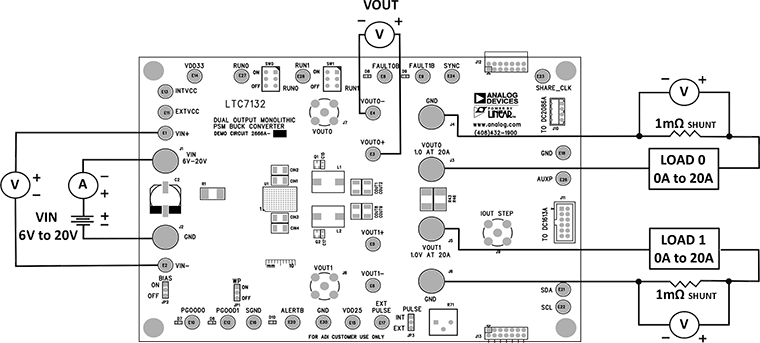

LTC7132

RECOMMENDED FOR NEW DESIGNS

25A, Dual PolyPhase Regulator with Digital Power System Management

Data Sheet (Rev. A)

Part Models: 2
1ku List Price: Starting From $10.92

Viewing:

Part Details

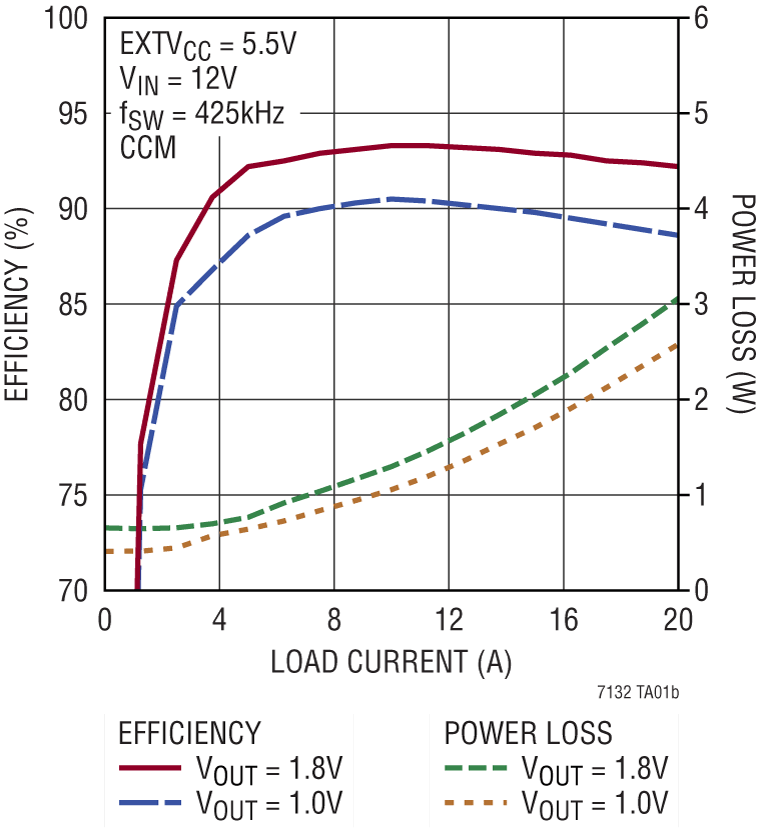

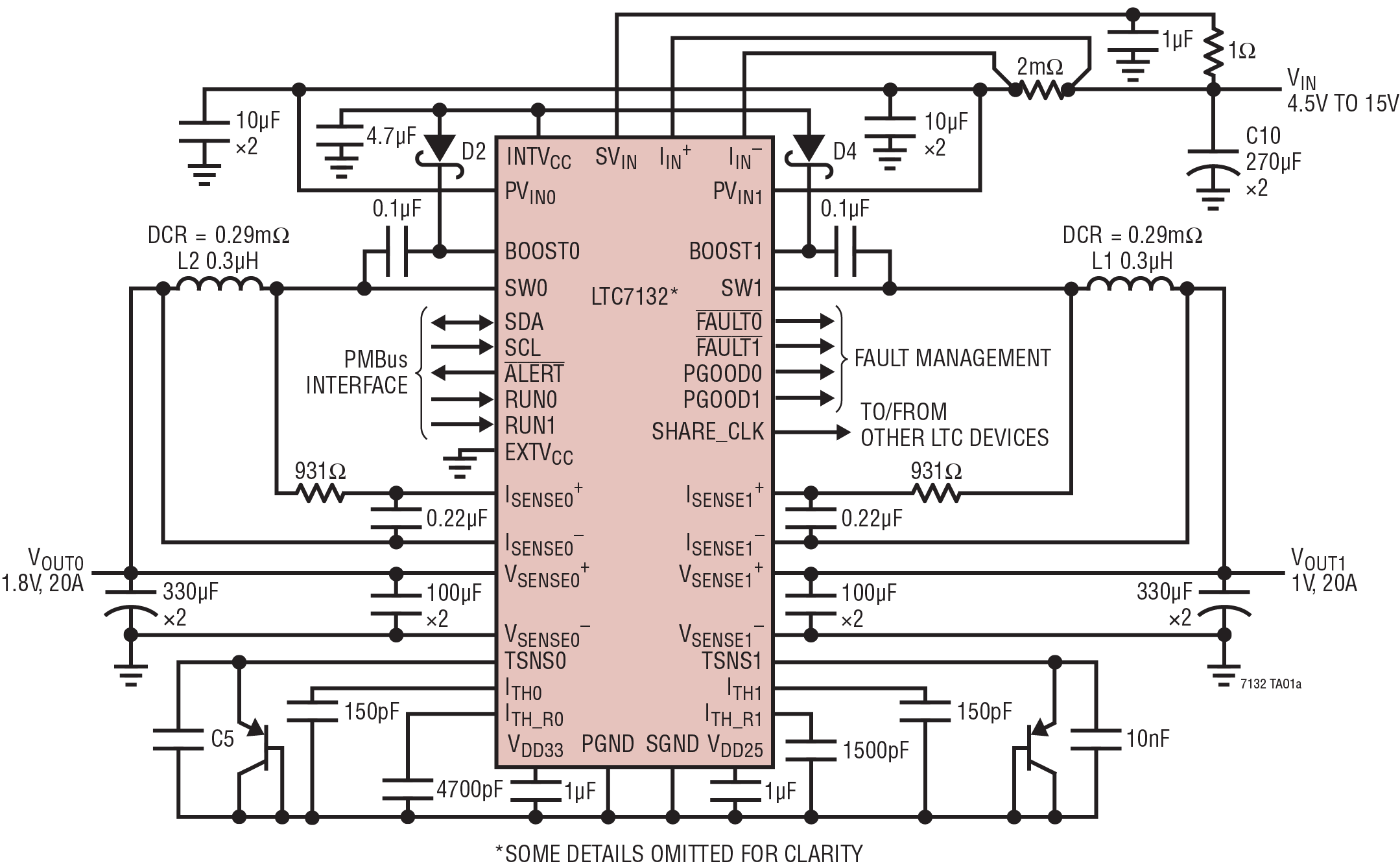

PMBus/I²C Compliant Serial Interface

Telemetry Read-Back Includes V_IN, I_IN, V_OUT, I_OUT, Temperature and Faults
Programmable Voltage, Current Limit, Digital Soft-Start/Stop, Sequencing, Margining, OV/UV/OC

Sub-Milliohm DCR Current Sensing

Digitally Adjustable Loop Compensation Parameters
±0.5% Output Voltage Accuracy Over Temperature
Integrated Input Current Sense Amplifier
Internal EEPROM with ECC and Fault Logging
Integrated N-Channel MOSFET Gate Drivers

Part Models: 2
1ku List Price: Starting From $10.92

Documentation

Data Sheet 1

LTC7132: 25A, Dual PolyPhase Regulator with Digital Power System Mgt Data Sheet (Rev.A) 04/04/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

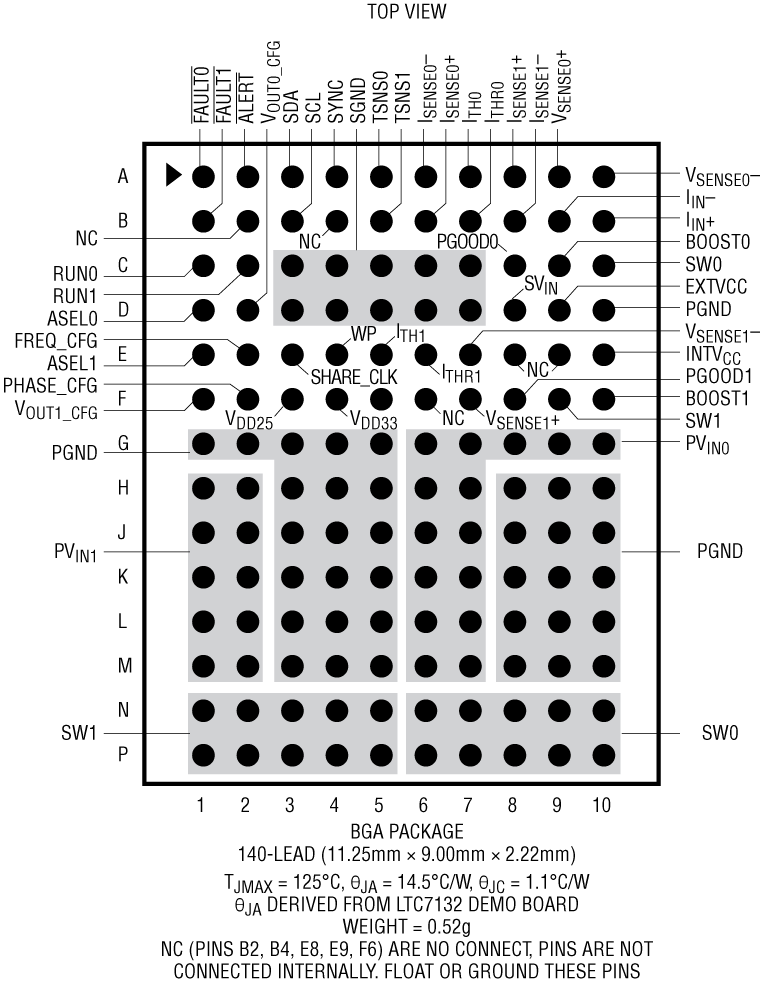

LTC7132EY#PBF	140-Lead BGA (11.25mm 9mm x 2.22mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7132IY#PBF	140-Lead BGA (11.25mm 9mm x 2.22mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 21, 2021 - 21_0159 Ink Mark to Laser Mark Conversion for µModule
		PCN21_0159_Form Material_Report Delta Qualification Matrix
LTC7132EY#PBF	PRODUCTION
LTC7132IY#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC7132

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTC7132

LTpowerPlay®

LTpowerPlay® is a powerful, Windows-based development environment supporting Linear Technology's Digital Power System Management (PSM) products.

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Reference Designs

Non-Hardware Verified Design

View Detailed Reference Design

Features and Benefits

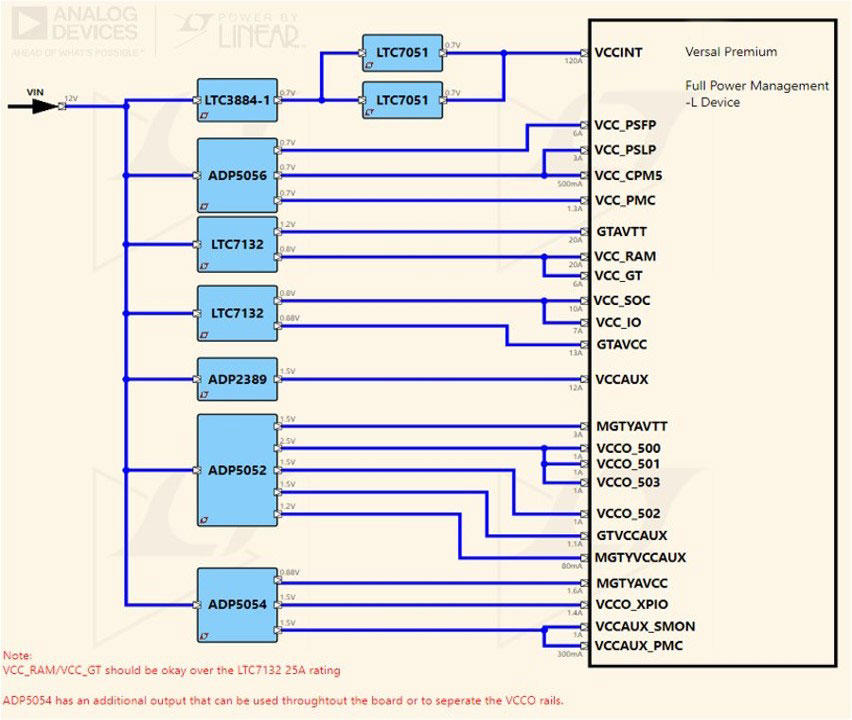

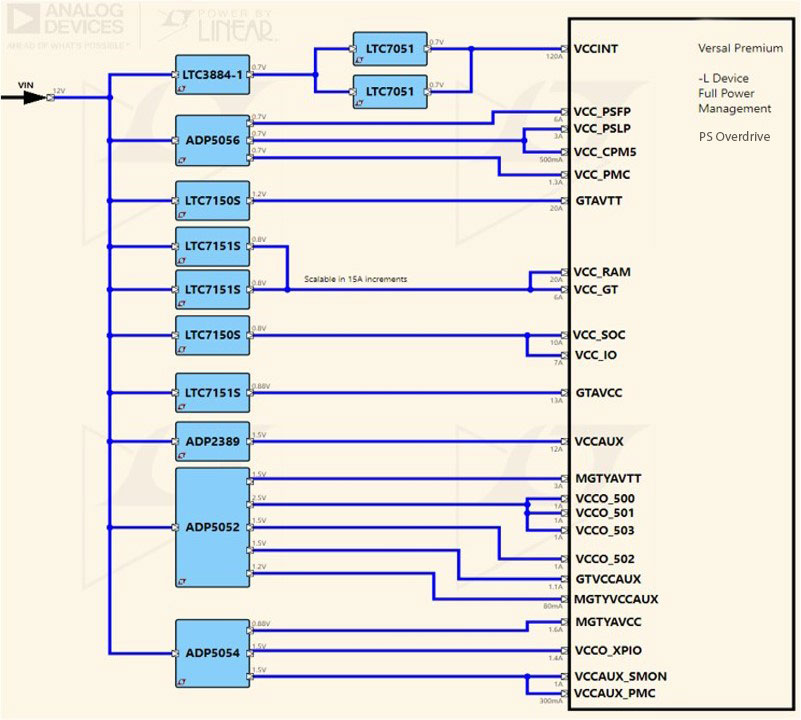

Xilinx Versal^™ Premium series solves a broad range of industry-specific problems with performance and flexibility. Core use cases include storage acceleration, data center network acceleration, 5G xHaul and Passive optical networks.

Analog Devices, Inc. supports power delivery solutions for the Versal Premium Platform. Monolithic solutions are used on the Versal Premium Platform to power Xilinx FPGA and/or SoC rails as well as other system rails. These regulators are highly integrated discrete solutions optimized for cost, efficiency and footprint.

ADI provides supporting documentation including power schematics, layout, LTpowerPlanner^® and applicable LTpowerPlay^® configuration files to enable you to validate the power solution for your application seamlessly.

For a complete list power designs and use cases, please contact your local FAE.

Key Power for full management devices are used as follows:

LTC3884-1
LTC7051
ADP5056
LTC7132
ADP2389
ADP5052
ADP5054
LTC7150S
LTC7151S

Part Used

Altera FPGA

View Detailed Reference Design

Features and Benefits

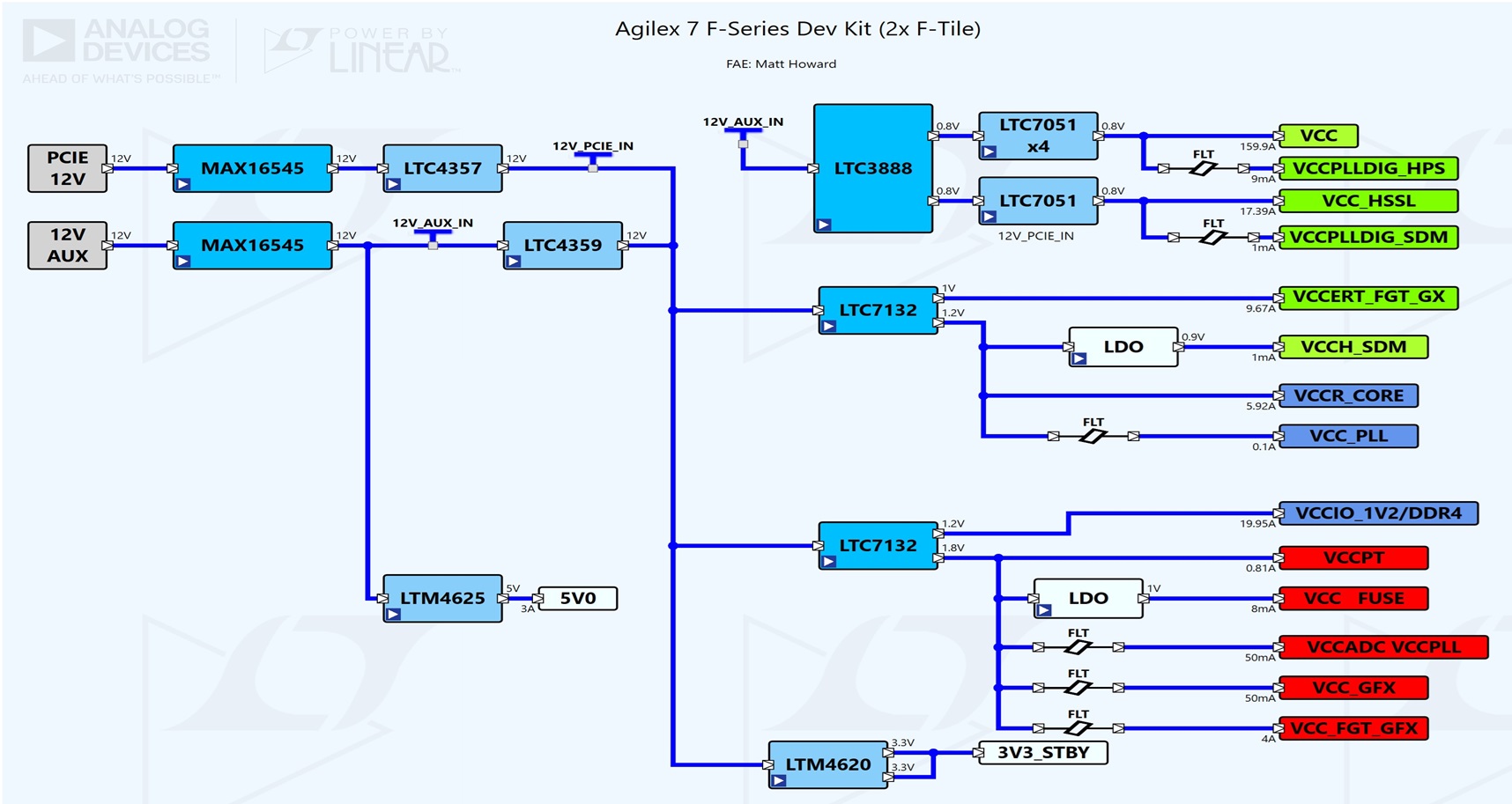

Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
Our reference designs are supported by an intuitive design tool set and IP.
ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
For a complete list power designs and use cases, please contact your local FAE.
