ADRF6780

RECOMMENDED FOR NEW DESIGNS

5.9 GHz to 23.6 GHz, Wideband, Microwave Upconverter

Data Sheet (Rev. D)

Part Models: 3
1ku List Price: price unavailable

Viewing:

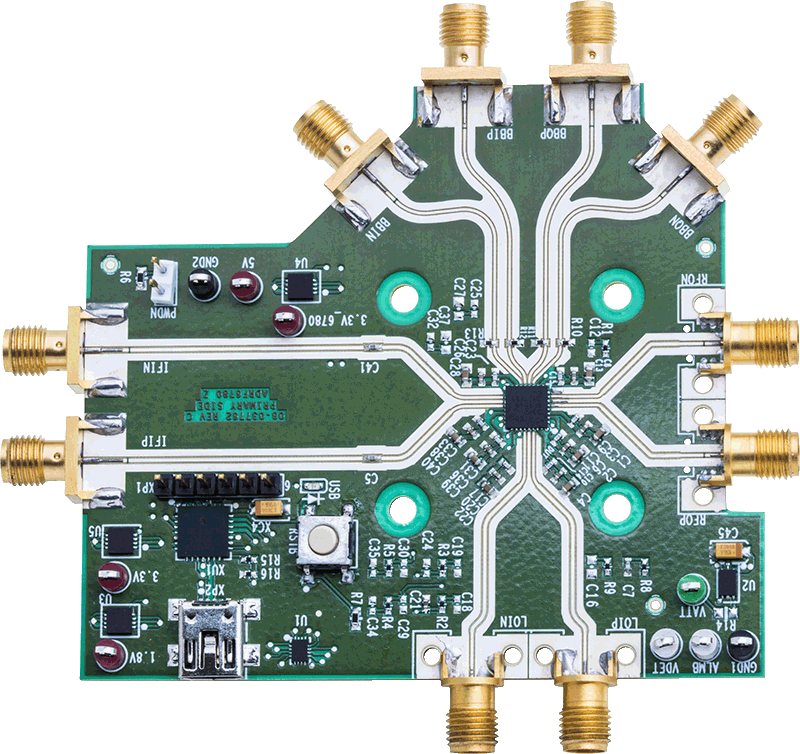

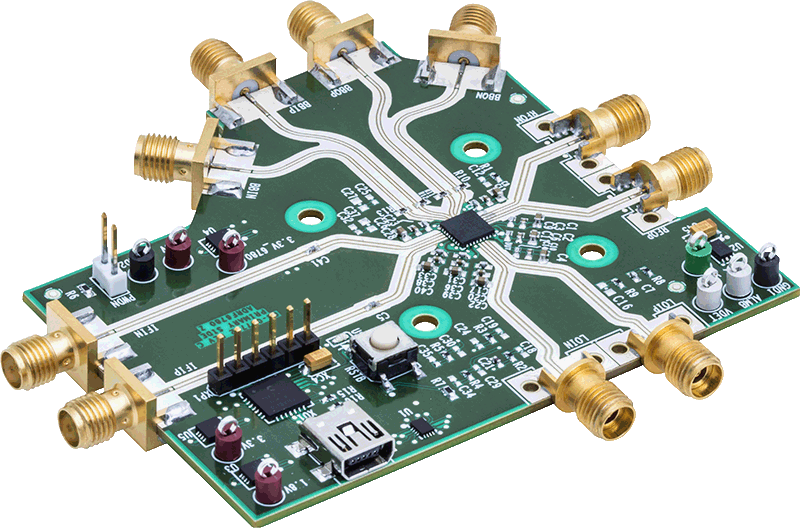

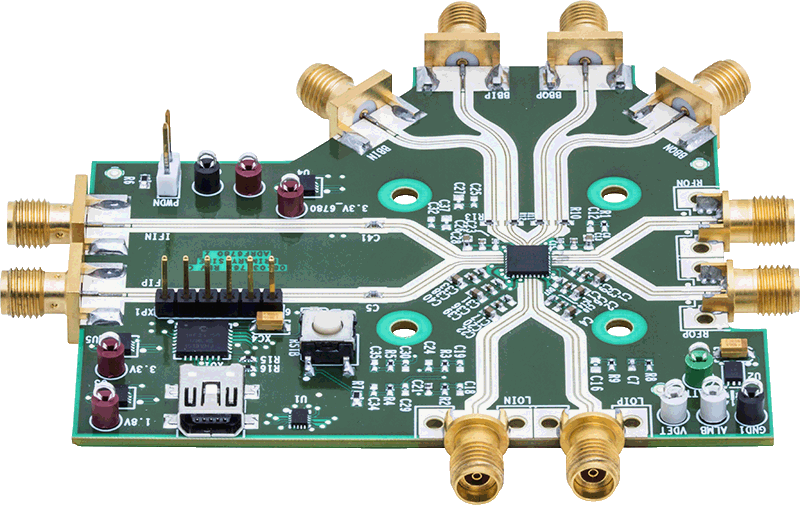

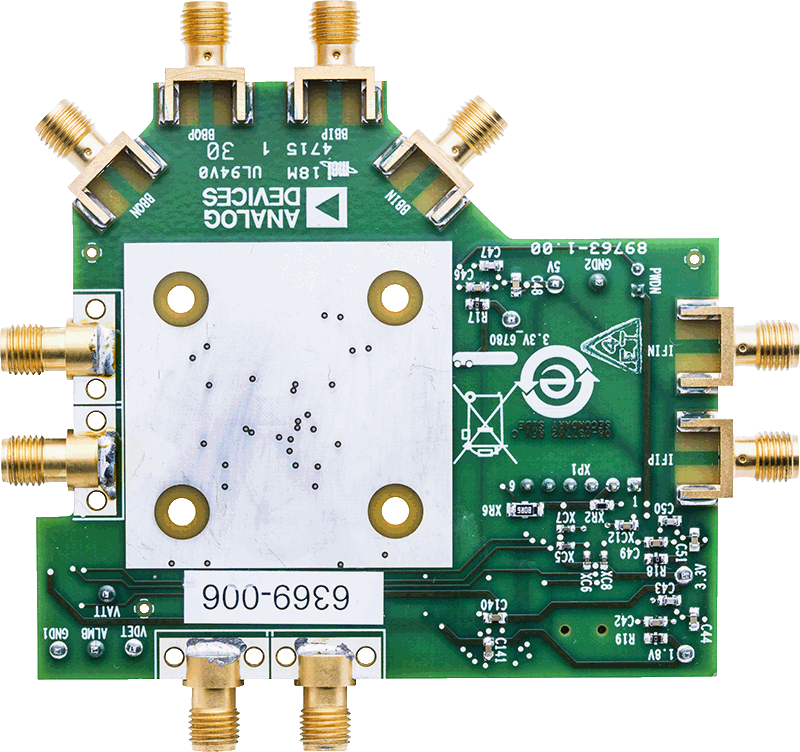

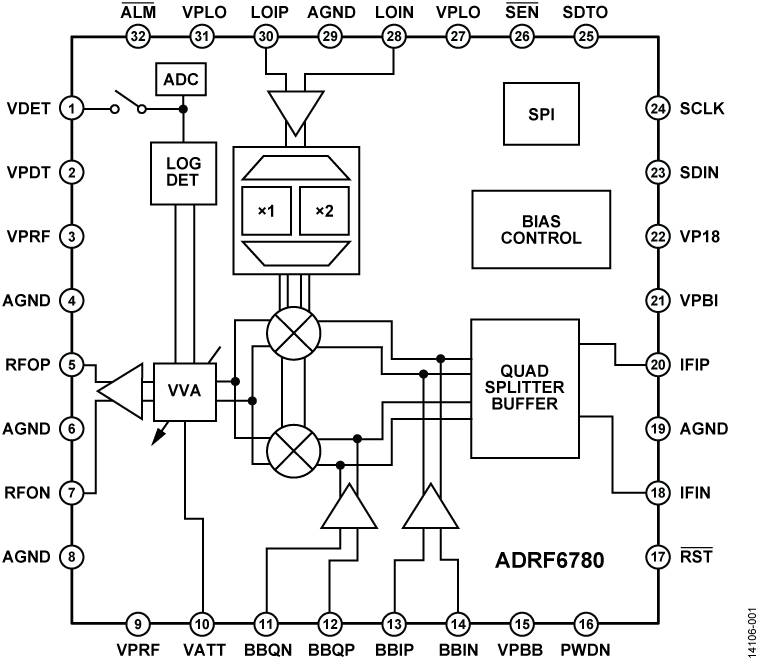

Part Details

Wideband RF output frequency range: 5.9 GHz to 23.6 GHz
Two upconversion modes
- Direct conversion from baseband I/Q to RF
- Single sideband upconversion from real IF
LO input frequency range: 5.4 GHz to 14 GHz
LO doubler for up to 28 GHz
Matched 100 Ω balanced RF output, LO input, and IF input

High impedance baseband inputs
Sideband suppression and carrier feedthrough optimization
Variable attenuator and power detector for Tx power control
Programmable via 4-wire SPI interface
32-lead, 5 mm × 5 mm LFCSP microwave packaging

Part Models: 3
1ku List Price: price unavailable

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADRF6780ACPZN	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADRF6780ACPZN-R2	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADRF6780ACPZN-R7	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

S-Parameter 1

ADRF6780 S-Parameter

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
