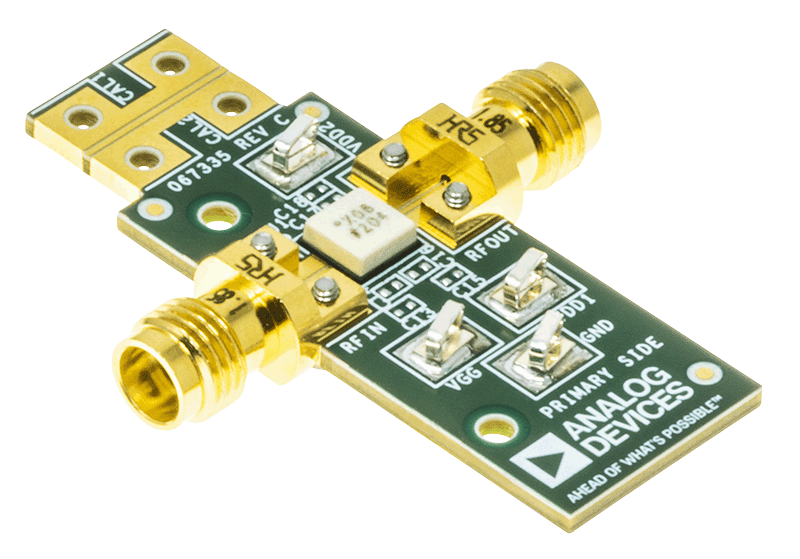

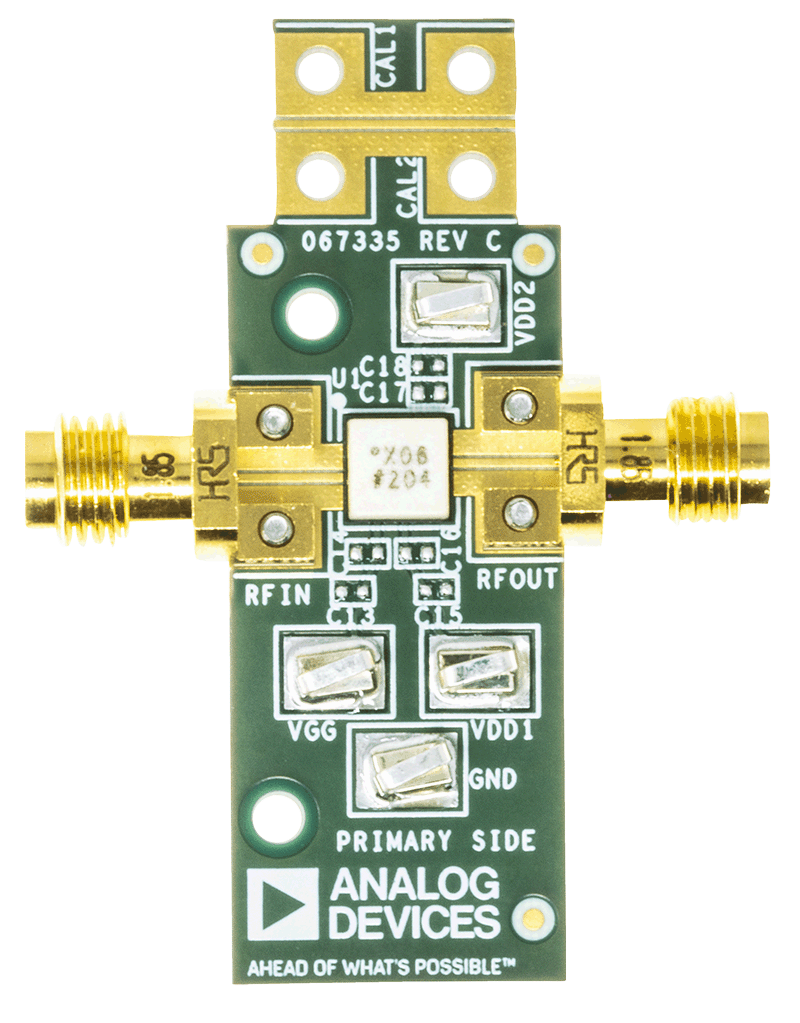

ADL8106

RECOMMENDED FOR NEW DESIGNS

GaAs, pHEMT, Low Noise Amplifier, 20 GHz to 54 GHz

Data Sheet (Rev. B)

Part Models: 4
1ku List Price: Starting From $144.10

Viewing:

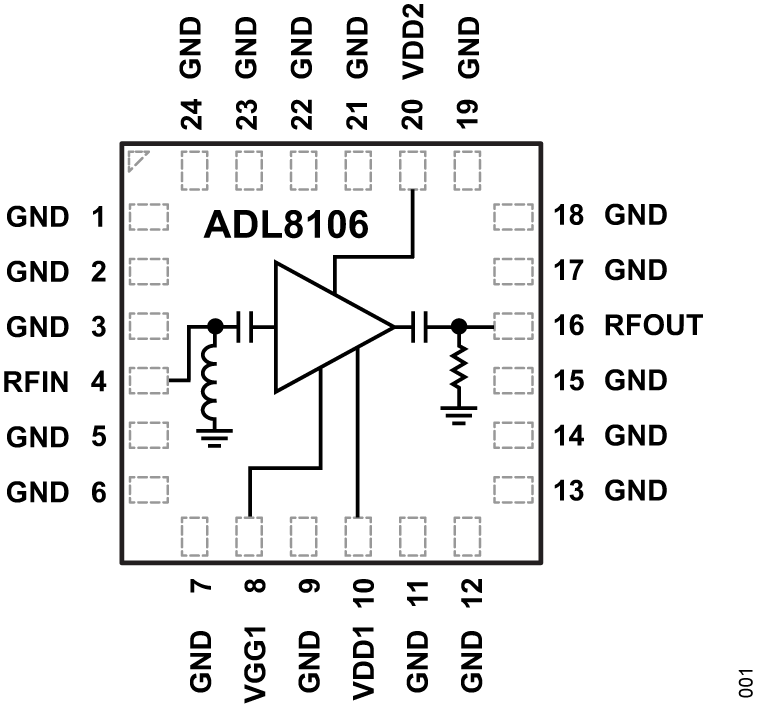

Part Details

Gain: 21.5 dB typical at 30 GHz to 44 GHz
Input return loss: 22 dB typical at 30 GHz to 44 GHz
Output return loss: 23 dB typical at 30 GHz to 44 GHz
OP1dB: 14 dB typical at 30 GHz to 44 GHz

P_SAT: 18 dBm typical at 30 GHz to 44 GHz
OIP3: 21.5 dBm typical at 30 GHz to 44 GHz
Noise figure: 3.0 dB typical at 30 GHz to 44 GHz
3 V supply voltage at 120 mA
50 Ω matched input and output
Die size: 2.3 mm x 1.45 mm x 0.1 mm

Part Models: 4
1ku List Price: Starting From $144.10

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

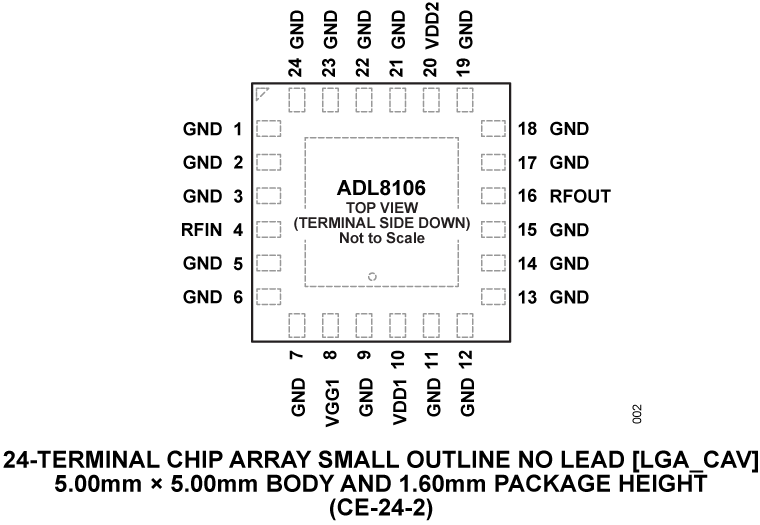

ADL8106ACEZ	24-terminal LGA_CAV (5 mm x 5 mm x 1.60 mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADL8106ACEZ-R7	24-terminal LGA_CAV (5 mm x 5 mm x 1.60 mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADL8106CHIPS	CHIPS OR DIE	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADL8106CHIPS-SX	CHIPS OR DIE	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
