HMC1126

RECOMMENDED FOR NEW DESIGNS

GaAs, pHEMT, Low Noise Amplifier, 400 MHz to 52 GHz

Data Sheet (Rev. A)
Part Models
2
1ku List Price
Starting From $159.69
Viewing:

Part Details

  • Gain: 12 dB typical at 10 GHz to 26 GHz
  • Input return loss: 14 dB typical at 10 GHz to 26 GHz
  • Output return loss: 16 dB typical at 10 GHz to 40 GHz
  • OP1dB: 17.5 dB typical at 10 GHz to 26 GHz
  • PSAT: 21 dBm typical at 10 GHz to 26 GHz
  • OIP3: 28.5 dBm typical at 10 GHz to 26 GHz
  • Noise figure: 3.5 dB typical at 10 GHz to 26 GHz
  • 5 V supply voltage at 85 mA
  • 50 Ω matched input and output
  • No external passive components required
  • 5.00 mm × 5.00 mm, 24-terminal LGA_CAV package
HMC1126
GaAs, pHEMT, Low Noise Amplifier, 400 MHz to 52 GHz

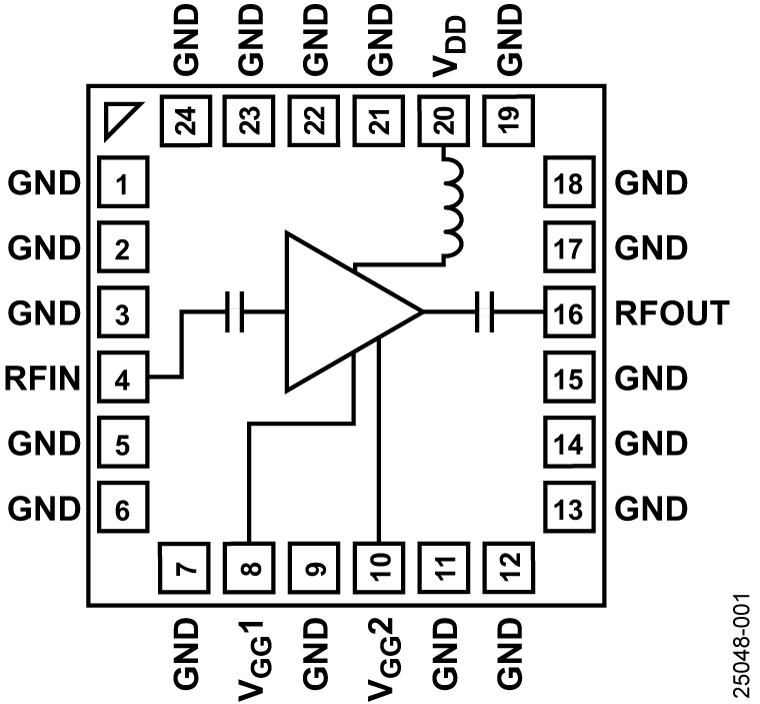

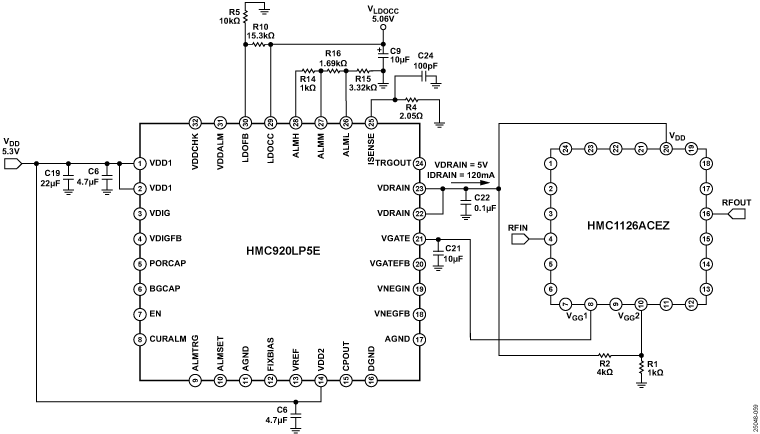

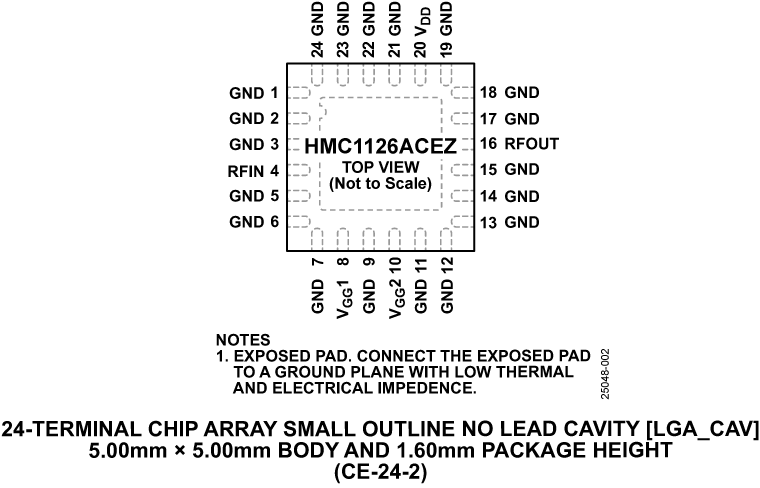

HMC1126ACEZ Functional Block Diagram HMC1126ACEZ Pin Configuration Diagram HMC1126ACEZ Typical Application Diagram
