ADAU7118

RECOMMENDED FOR NEW DESIGNS

8 Channel, PDM to I2S/TDM Converter

Data Sheet (Rev. A)
Viewing:

Part Details

  • 8 channels of PDM audio inputs from digital microphones
  • 16×, 32×, or 64× decimation ratio of PDM to PCM audio data
  • 24-bit resolution to support high sound pressure level (SPL) microphones
  • 126 dB A-weighted SNR
  • 4 kHz to 192 kHz output sampling rate
  • Bit clock rates of 64×, 128×, 192×, 256×, 384×, or 512× the output sampling rate
  • Dual output PDM clocks
  • Automatic PDM clock generation
  • Automatic power-down when BCLK removed
  • Selectable I2C control or hardware mode operation
  • 1.2 mA DVDD operating current for 8 channels at 48 kHz frequency sampling rate and 1.8 V supply
  • Slave I2S or TDM output interface
  • Up to TDM-16 supported
  • Configurable TDM slot routing and sizes
  • I/O supply voltage from 1.70 V to 3.63 V
  • DVDD supply voltage from 1.10 V to 1.98 V
  • <5 μA typical DVDD shutdown current
  • 16-lead, 3 mm × 3 mm, 0.50 mm pitch LFCSP
  • Power-on reset
ADAU7118
8 Channel, PDM to I2S/TDM Converter

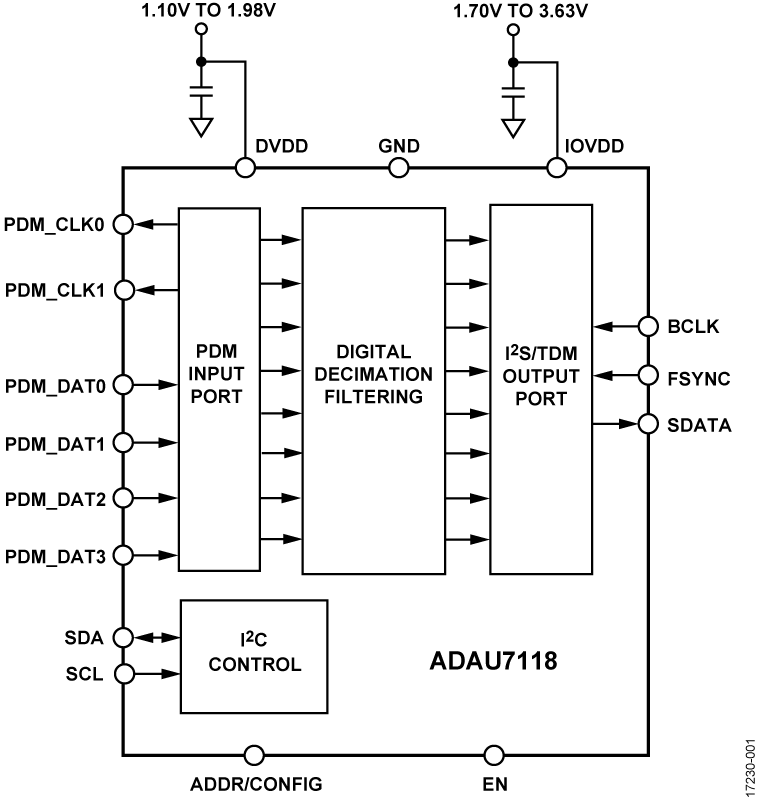

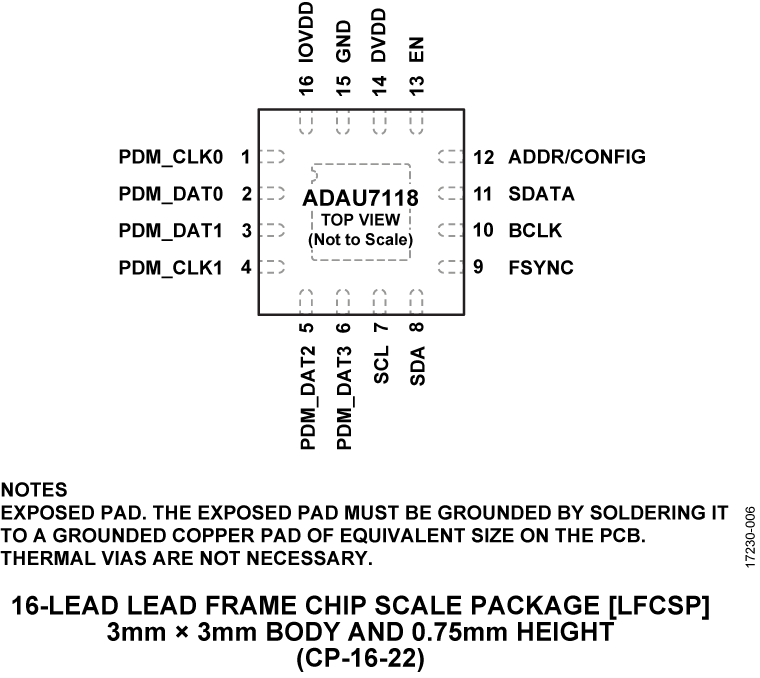

ADAU7118 Functional Block Diagram ADAU7118 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Automated Register Window Builder, Version 3.2.1

ADAU7118 Automated Register Window Builder XML File

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADAU7118

ADAU7118 Evaluation Board

Buy Now View Details

Product Details

The ADAU7118 is a converter that takes in a Pulse Density Modulation signal from a MEMS (Micro Electromechanical System) microphone and converts it into an I2S (Inter IC Serial bus) signal or a time domain multiplexed (TDM) serial communication bus. The EVAL-ADAU7118Z can be set to operate in hardware mode or configured to control the ADAU7118 via I2C communication interface. An I2S serial interface is accessible via header pins spaced at 0.1 inches. Pulse density modulation (PDM) data and the clock interface are available on these headers. The evaluation board can be connected to an external 5 V dc power supply and ground or can be powered from the USB interface. On-board regulators derive supplies of 3.3 V, 1.8 V, and 1.2 V. The evaluation board can be configured to operate fully from external power supplies bypassing the on-board regulators. Current measurements of the ADAU7118 are made with the supplied header pins.

The ADAU7118 can be controlled through an I2C interface. A small, external interface board, EVAL-ADUSB2EBZ, (USBi) connects to a PC USB port and provides I2C access to the evaluation board through a ribbon cable. The USBi is not required to control the evaluation board from a user supplied I2C master controller. The EVAL-ADUS2EBZ is supplied with the EVAL-ADAU7118Z evaluation board and does not require a seperate purchase.

The Automated Register Window Builder graphical user interface (GUI) simplifies programming the device in a Windows® PC environment. The SigmaStudio GUI can also be used to control the ADAU7118. The evaluation board allows demonstration and performance testing of the features of the ADAU7118.
EVAL-ADAU7118
ADAU7118 Evaluation Board

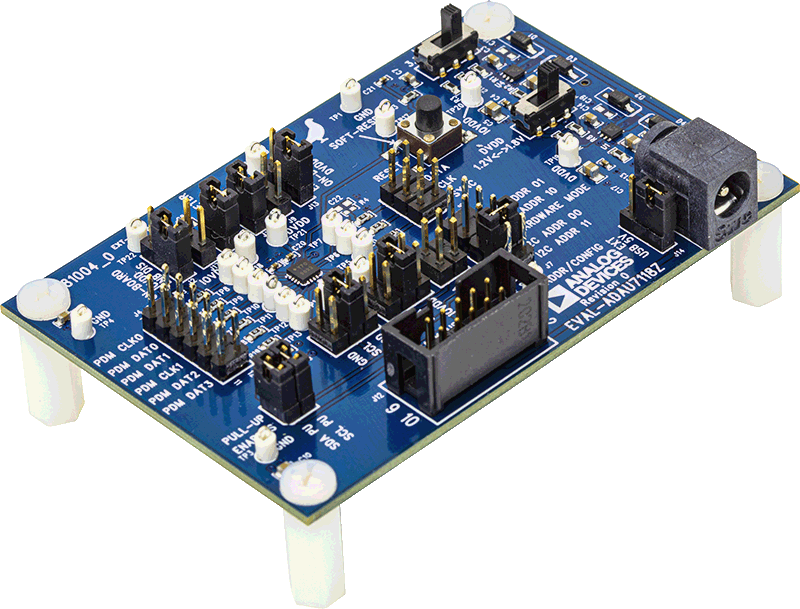

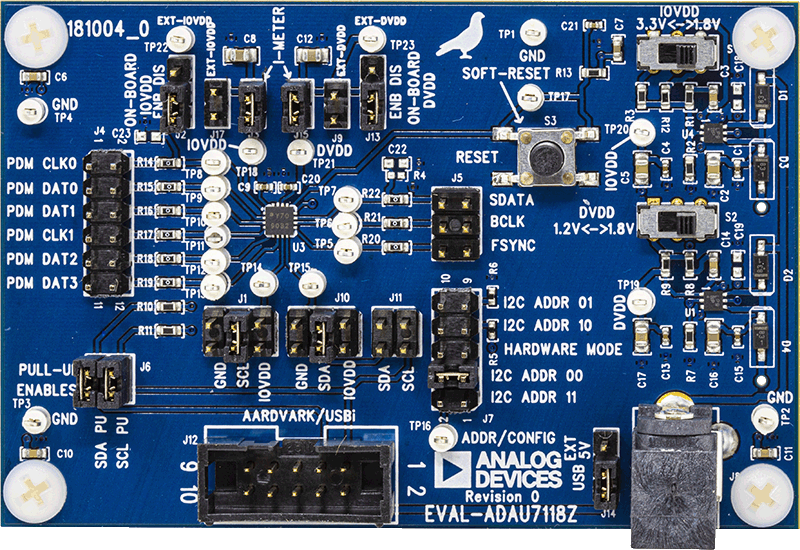

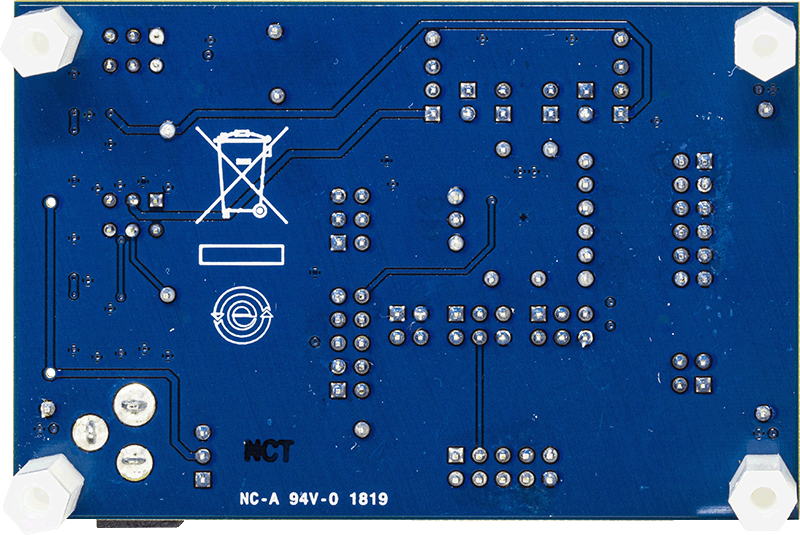

EVAL-ADAU7118ZTOP-web EVAL-ADAU7118ZBOTTOM-web EVAL-ADAU7118ZANGLE-web
