MAX6071

量产

低噪声、高精度系列电压基准

高性能SOT23电压基准，最大温度系数为6ppm/°C

数据手册 (Rev. 5)
产品模型
38
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 6引脚SOT23封装减小系统电路板空间
  • 在工作温度和时间范围内具有稳定性能，提高系统精度
    • ±0.04%高初始精度
    • 1.5ppm/°C (典型值)、6ppm/°C (最大值)低温漂
    • 输出2.5V时，具有4.8µVP-P低噪声(0.1Hz至10Hz)
    • 200mV低压差
    • 85dB高纹波抑制
  • 150µA低电源电流降低功耗
  • 滤波器选项降低高频噪声
  • 输出选项：1.25V、1.8V、2.048V、2.5V、3.0V、3.3V、4.096V和5.0V，覆盖常见电压，适用于较宽范围的应用
  • 0.78mm x 1.41mm WLP封装，0.35mm焊球间距
  • 通过AEC-Q100认证(请参考订购信息)
MAX6071
低噪声、高精度系列电压基准

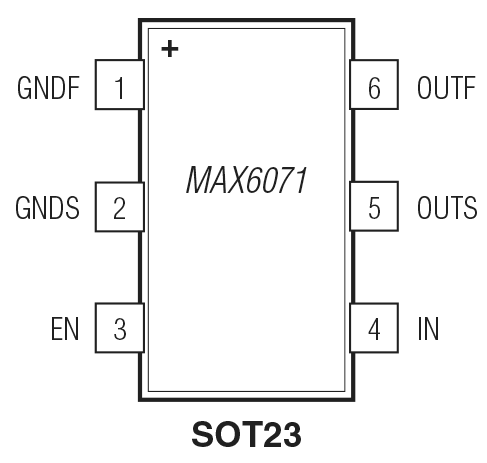

MAX6071 Circuit Diagram MAX6071 Pin Configuration
