LT1010

量产

快速 ±150mA 电源缓冲器

产品模型: 6

Viewing:

产品详情

20MHz 带宽
75V/μs 转换速率
可向 75Ω 阻抗提供 ±10V 驱动电压
5mA 静态电流
可驱动 >1μF 的容性负载
电流限制和热限制
从单个电源 (≥ 4.5V) 获取工作电压

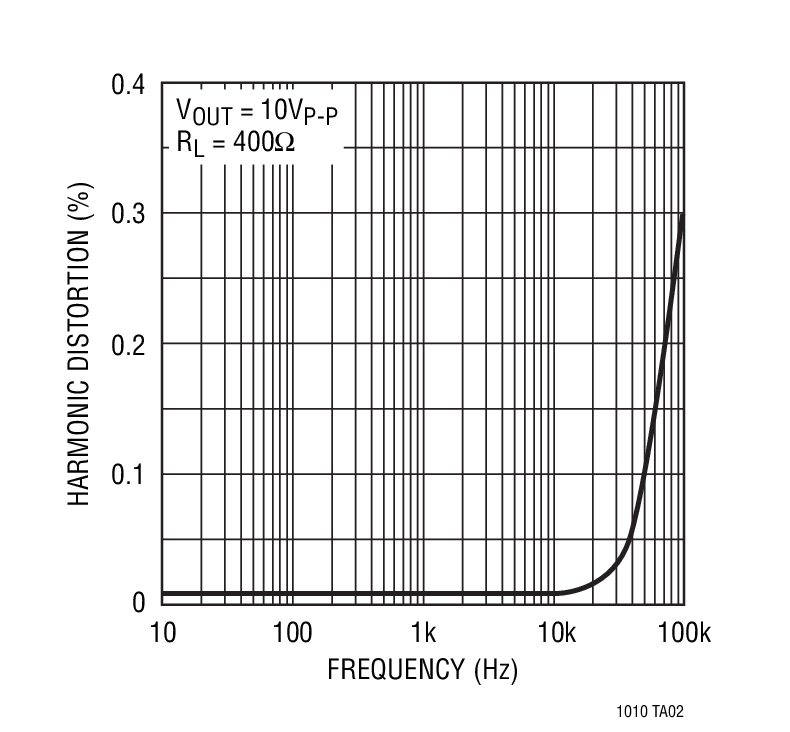

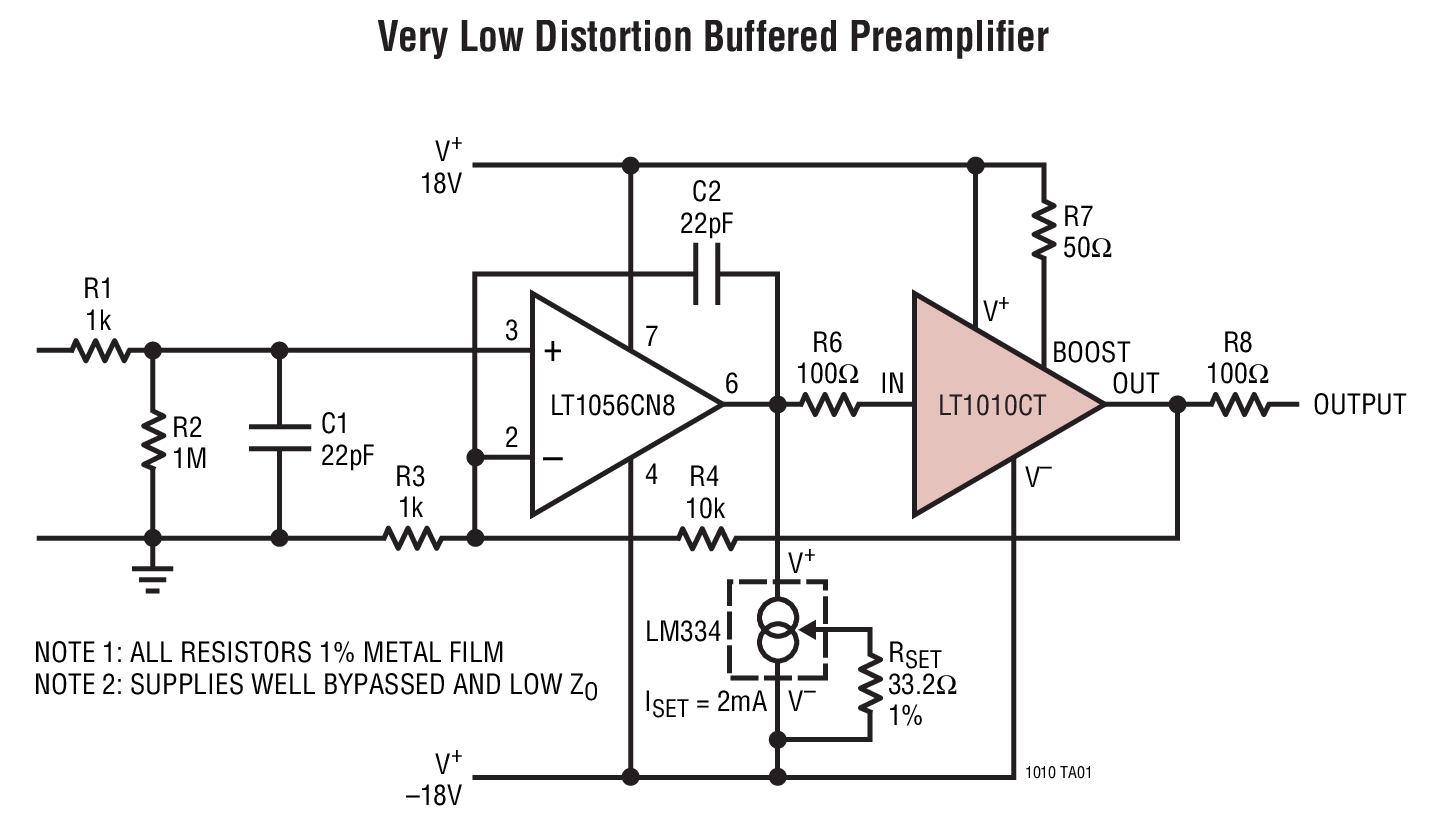

非常低失真运作

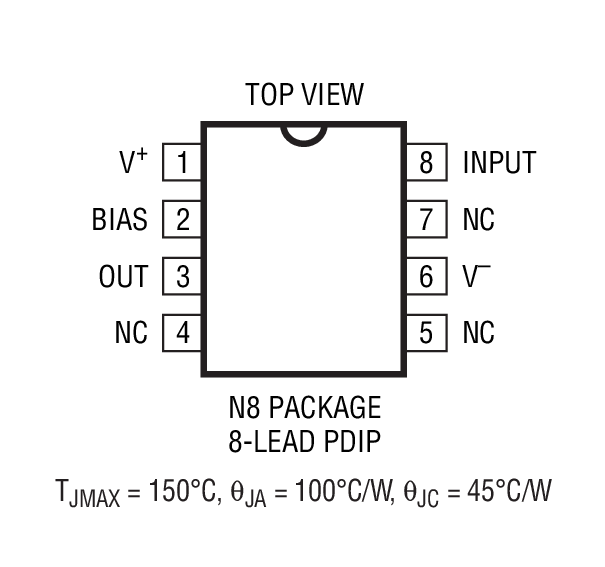

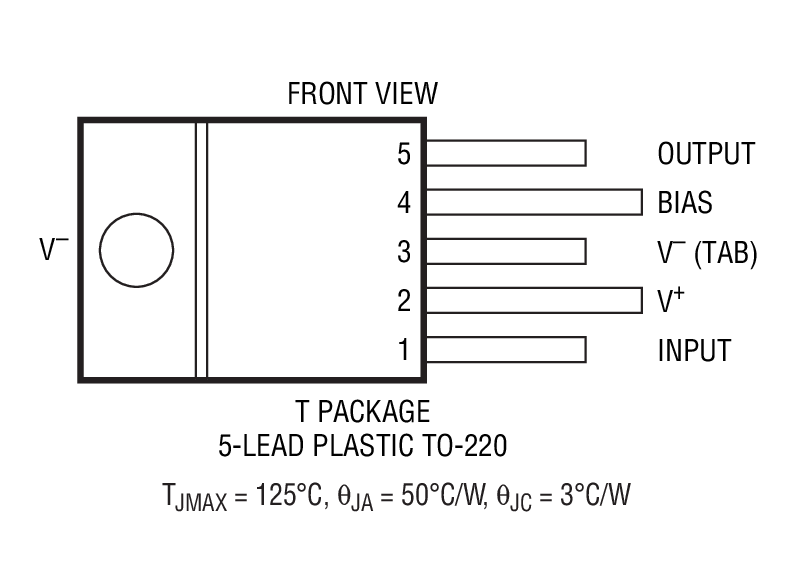

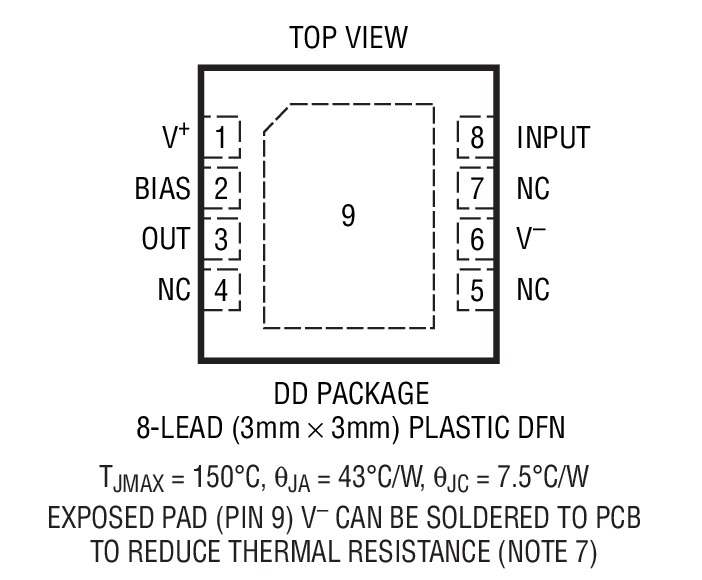

采用 8 引脚 miniDIP、塑料 TO-220 和纤巧型 3mm x 3mm x 0.75mm 8 引脚 DFN 封装

参考资料

数据手册 1

LT1010: Fast ±150mA Power Buffer Data Sheet 05/18/2011

可靠性数据 1

R207 Reliability Data 03/22/2018

应用笔记 14

AN-82: 理解并使用基准电压源 11/04/2020

AN4 - Applications for a New Power Buffer 11/07/2012

AN21 - Composite Amplifiers 05/04/2010

AN16 - Unique IC Buffer Enhances Op Amp Designs, Tames Fast Amplifiers 02/05/2013

AN47 - High Speed Amplifier Techniques 08/20/2007

AN72 - A Seven-Nanosecond Comparator for Single Supply Operation 08/20/2007

AN31 - Linear Circuits for Digital Systems 08/20/2007

AN9 - Application Considerations and Circuits for a New Chopper-Stabilized Op Amp 03/26/2010

AN43 - Bridge Circuits 07/10/2012

AN45 - Measurement and Control Circuit Collection 11/29/2012

AN18 - Power Gain Stages for Monolithic Amplifiers 06/14/2010

AN14 - Designs for High Performance Voltage-to-Frequency Converters 03/26/2010

AN-43: Bridge Circuits 11/16/2020

AN-86: A Standards Lab Grade 20-Bit DAC with 0.1ppm/°C Drift 10/15/2020

设计笔记 2

Design Note 51: Gain Trimming In Instrumentation Amplifier Based Systems 11/09/2022

Design Note 101: A Precision Wideband Current Probe for LCD Backlight Measurement 04/01/1995
