HMC8414

The AD-JUPITER-EBZ is a versatile software-defined platform based on Analog Devices ADRV9002 and Xilinx Zynq UltraScale+ MPSoC. The ADRV9002 is a new generation RF transceiver that has dual-channel transmitters, dual-channel receivers covering a frequency range of 30 MHz to 6 GHz. This device has a high-quality RF linearity performance and a set of advanced features like fast profiles switching, flexible power vs. performance configuration, fast frequency hopping, multi-chip synchronization, and digital pre-distortion (DPD) for narrow and wide band waveform.

The evaluation platform includes XCZU3EG processing device that has a wide range of interfaces, making the system capable of local processing or streaming to a remote host. It comes integrated in a self-contained ruggedized aluminum case, which gives flexibility in evaluating and prototyping across different environments.

APPLICATIONS

• Aerospace and Defense
• Communications
• Advanced Education

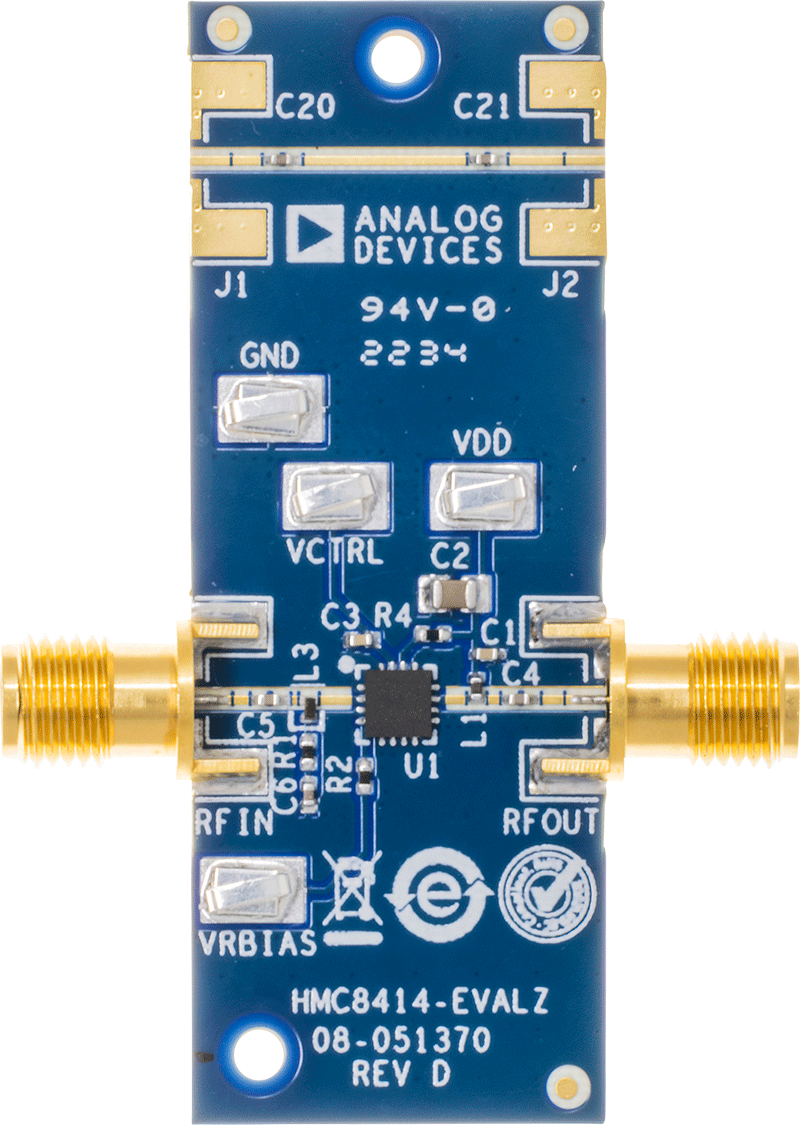

HMC8414-EVALZ是采用10 mil (0.254 mm)厚的Rogers 4350B和Isola 370HR铜箔制成的4层印刷电路板(PCB)，标称厚度为62mil (1.575 mm)。HMC8414-EVALZ上的RFIN和RFOUT端口配备超小A型(SMA)插口同轴连接器，且其相应的RF走线具有50 Ω特征阻抗。HMC8414-EVALZ上装配的元件适合在HMC8414ACPZN的−40°C至+85°C整个工作温度范围内使用。为校准电路板的迹线损耗，提供了一个直通校准路径。在J1和J2位置安装RF连接器以使用直通校准路径。请参阅用户指南中的图4，了解直通校准路径的插入损耗和回波损耗。

通过表贴技术(SMT)测试点连接器、VRBIAS、VCTRL和VDD访问HMC8414-EVALZ电源和数字控制引脚。

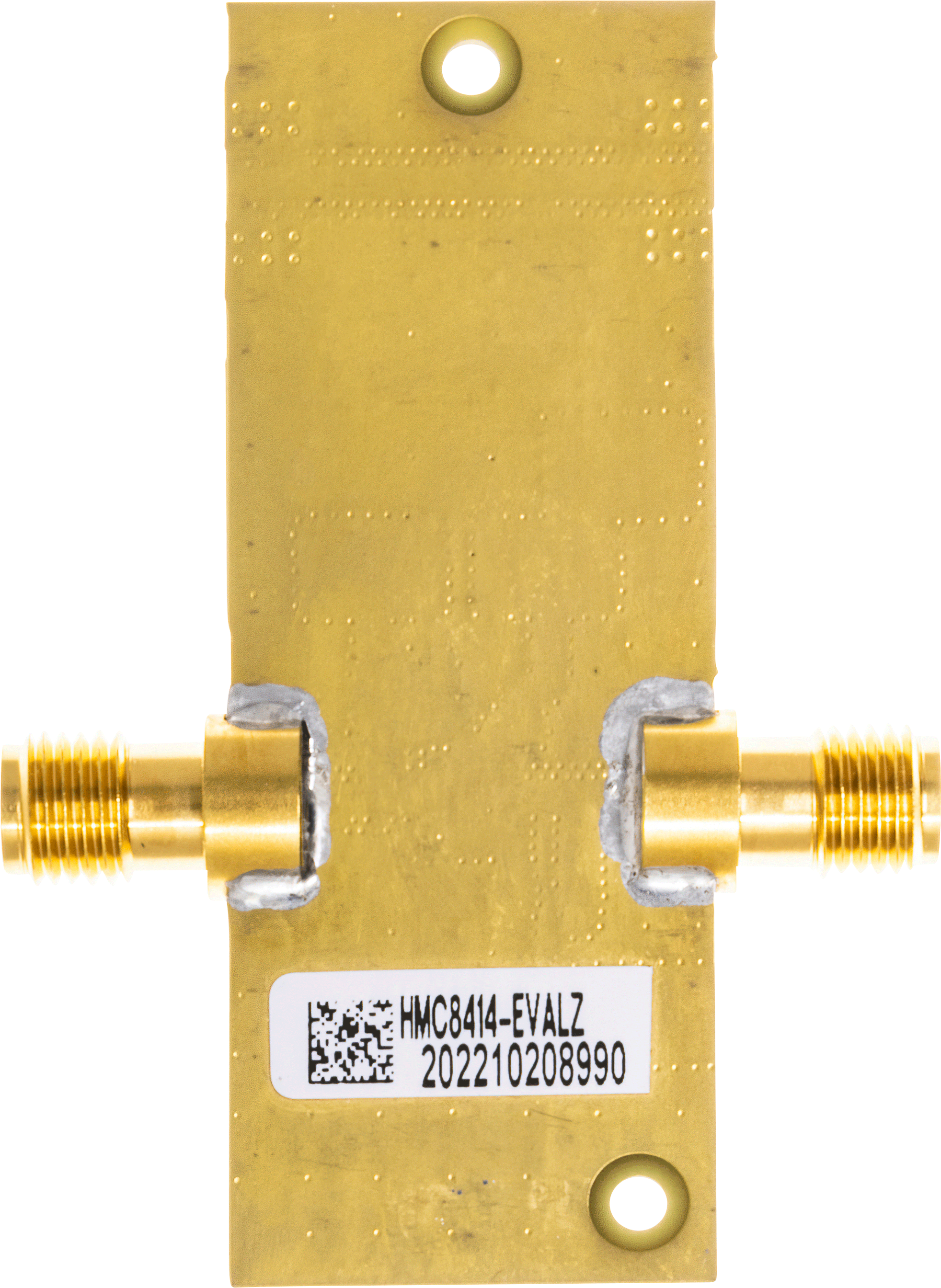

HMC8414-EVALZ上的RF走线为50 Ω、接地共面波导走线。封装接地引线和裸焊盘直接连接到接地平面。多个导通孔用于连接顶部和底部接地平面，并特别集中于接地焊盘正下方的区域，以便为HMC8414-EVALZ提供充分的导电性和导热性。

用户指南的图5显示了HMC8414-EVALZ原理图以及用于表征和评定器件的配置。

有关HMC8414的完整详细信息，请参阅HMC8414数据手册，在使用HMC8414-EVALZ时，必须同时参阅该数据手册和用户指南。
