DS28EL15

量产

DeepCover安全认证器，带有1-Wire SHA-256和512位用户EEPROM

利用强大的加密认证与先进的物理安全机制保护您的开发投资

数据手册 (Rev. 0)

Viewing:

产品详情

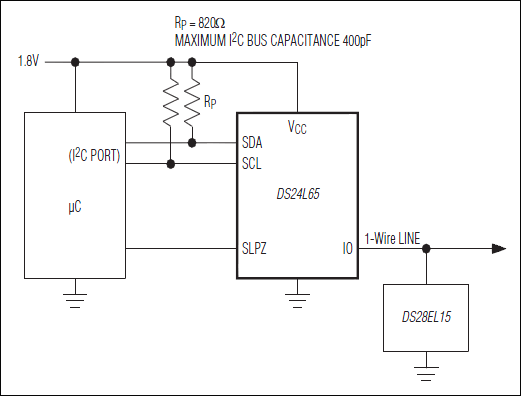

基于SHA-256的对称加密双向安全认证模型
对高位计数、用户可编程密钥以及输入质询进行有效的安全认证
512位用户EEPROM分成2页，每页256位
用户可编程、不可擦除的EEPROM保护模式包括：安全认证、写/读保护以及OTP/EEPROM仿真模式
唯一的工厂可编程64位识别码
单触点、1-Wire通信接口
工作范围：1.8V ±5%、-40°C至+85°C
±8kV人体模式ESD保护(典型值)
6引脚TDFN-EP封装

参考资料

Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA). To request an NDA, click here.

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

DeepCover® Security Lab

打开工具

评估套件

Evaluation System for the DS28EL15 and DS24L65

立即购买更多内容

特性和优点

Complete EV System:
- Five DS28EL15 ICs in TDFN-EP Package
- One USB-to-I²C Module (DS9400#) Provides PC Connection
- DS2465 EV Board Provides 1-Wire Interface and SHA-256 Coprocessor
- One EV Board (DS9120Q+) with TDFN-EP Socket Provides Easy Chip Evaluation
USB-to-I²C Module Contains Prolific PL-2303HXD USB-to-UART Chip
- Enumerates as a Virtual PC COM Port
- Windows Certified Logo USB Device Driver Available
- Standard USB Cable Interface
I²C Host Interface Supports 400kHz I²C Communication Speeds
EV Board Contains Convenient On-Board Test Points
Evaluation Software Will Be Provided Along with Full Evaluation Kit Data Sheet

产品详情

The DS28EL15 evaluation system (EV system) provides the hardware and software necessary to evaluate and program the DS28EL15 DeepCover^® Secure Authenticator. EV system operation requires a host PC for user-friendly evaluation.

Our Secure Drug Delivery video shows how Maxim security products can be used to authenticate remote drug delivery.

This evaluation system includes a DS9400 USB-to-I²C PC adapter, a DS2465 EV board, a DS9120Q+ evaluation socket board for a TDFN DS28EL15, and five DS28EL15 sample devices in a TDFN package. The EV software runs on Windows^® 8, Windows 7, Windows Vista^®, and Windows XP^® operating systems. Detailed instructions for downloading and installing software, as well as general EV system operation are included in the EV system data sheet; software and documentation are available at the link above.

Note: The DS2465 EV board and DS9400# subcomponents are not available for direct sale outside of evaluation systems. A data sheet specific to DS9400# is not available.

USB转1-Wire/iButton 适配器

立即购买更多内容

特性和优点

驱动器支持Windows^® 11和Windows 10操作系统
通过使用高能PL-2303GC USB转UART电桥IC枚举为虚拟PC COM端口
枚举DS2480B 1-Wire线路驱动功能
1-Wire EEPROM编程
对1-Wire/iButton器件执行1.8V读写操作
用于标准连接配件的RJ11接口，如DS9120系列插座适配器
支持标准和过驱1-Wire通信
提供强上拉至1.8V
完全符合USB 2.0规范要求

产品详情

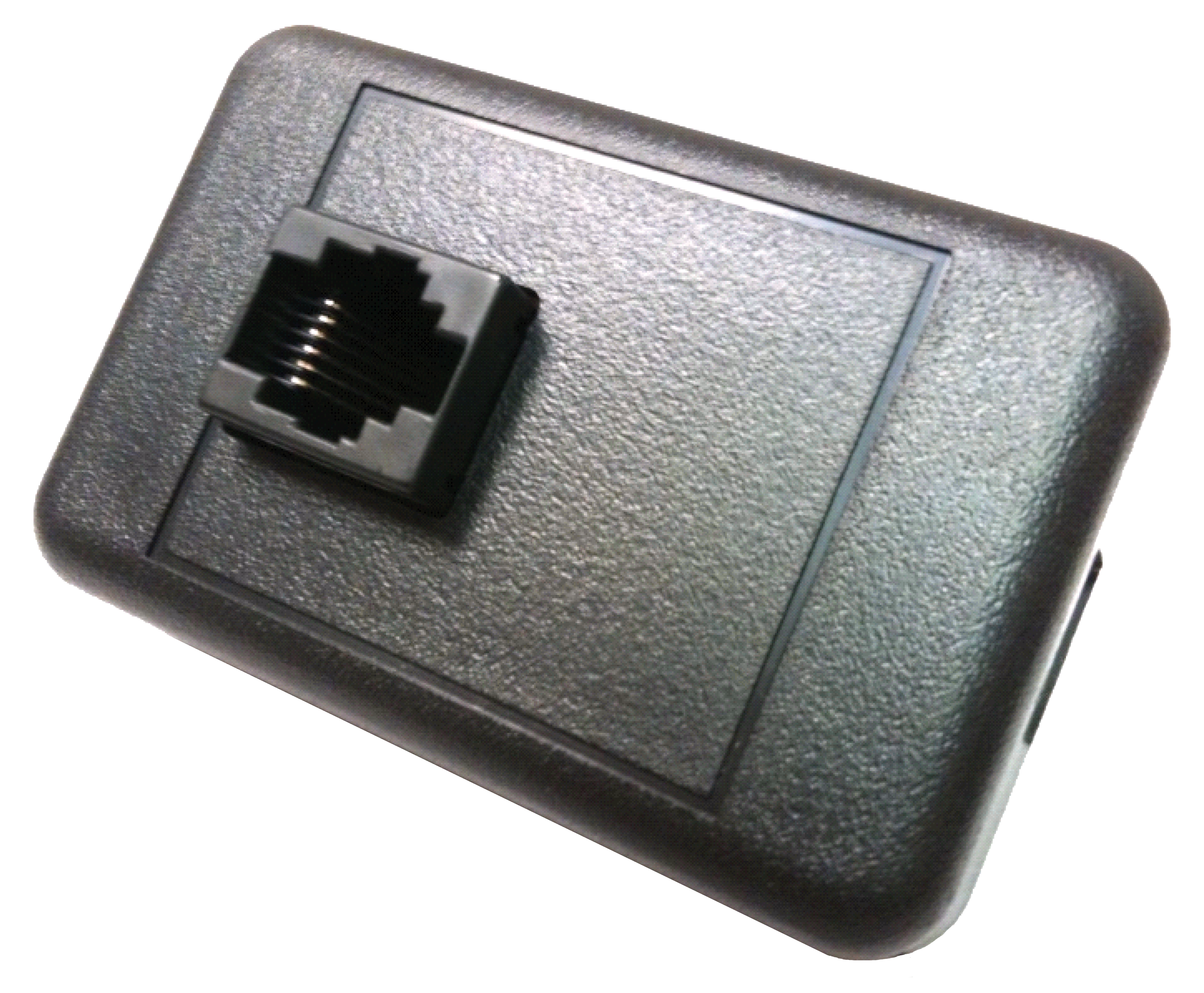

DS9481R-200是一款USB转1-Wire^®适配器，可轻松地将PC连接到1-Wire器件。该适配器为RJ11连接器提供信号，与支持1.8V数据I/O电平的1-Wire和iButton^®器件进行通信。此外，该适配器可提供支持和信号以便对1-Wire/iButton EEPROM器件进行编程。为提供完整的硬件解决方案，DS9481R-200可轻松与DS9120插座适配器系列一起使用，从而为1-Wire从机器件创建1-Wire PC编程器（更多信息请联系工厂）。iButton的等效从机硬件解决方案为DS1402D-DR8。
