AD8079
量产Dual 260 MHz Gain = +2.0 & +2.2 Buffer
- 产品模型
- 6
产品详情
|
|

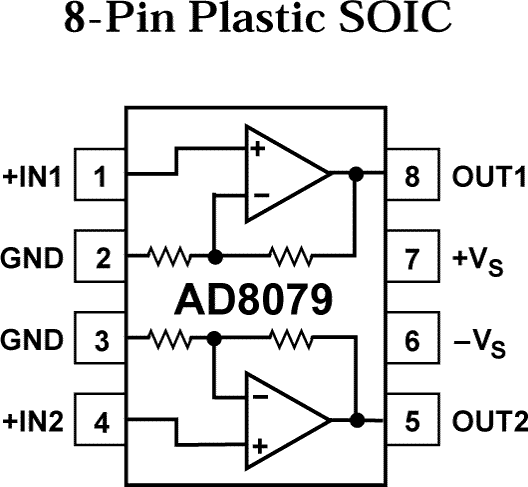

The AD8079 is a dual, low power, high speed buffer designed to operate on ±5 V supplies. The AD8079's pinout offers excellent input and output isolation compared to the traditional dual amplifier pin configuration. With two ac ground pins separating both the inputs and outputs, the AD8079 achieves very low crosstalk of less than -70 dB at 5 MHz.
Additionally, the AD8079 contains gain setting resistors factory set at G = +2.0 (A grade) or Gain = +2.2 (B grade) allowing circuit configurations with minimal external components. The B grade gain of +2.2 compensates for gain loss through a system by providing a single-point trim. Using active laser trimming of these resistors, the AD8079 guarantees tight control of gain and channel-channel gain matching. With its performance and figuration, the AD8079 is well suited for driving differential cables and transformers. Its low distortion and fast settling are ideal for buffering high speed dual or differential A-to-D converters.
The AD8079 features a unique transimpedance linearization circuitry. This allows it to drive video loads with excellent differential gain and phase performance of 0.01% and 0.02° on only 50 mW of power per amplifier. It features gain flatness of 0.1 dB to 50 MHz. This makes the AD8079 ideal for professional video electronics such as cameras and video switchers.
The AD8079 offers low power of 5 mA/amplifier (VS = ±5 V) and can run on a single +12 V power supply while delivering over 70 mA of load current. All of this is offered in a small 8-pin SOIC package. These features make this amplifier ideal for portable and battery powered applications where size and power are critical.
The outstanding bandwidth of 260 MHz along with 800 V/µs of slew rate make the AD8079 useful in many general purpose high speed applications where dual power supplies of ±3 V to ±6 V are required.
The AD8079 is available in the industrial temperature range of -40°C to +85°C.
参考资料
数据手册 1
应用笔记 3
教程 13
产品选型指南 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| AD8079ARZ | 8-Lead SOIC | ||
| AD8079ARZ-REEL | 8-Lead SOIC | ||
| AD8079ARZ-REEL7 | 8-Lead SOIC | ||
| AD8079BRZ | 8-Lead SOIC | ||
| AD8079BRZ-REEL | 8-Lead SOIC | ||
| AD8079BRZ-REEL7 | 8-Lead SOIC |
| 产品型号 | 产品生命周期 | PCN |
|---|---|---|
|
11月 13, 2013 - 13_0265 Qualification of ASE Chungli, as an Alternate Assembly Site for Select 8L and 14L SOICN Packages |
||
| AD8079ARZ | 量产 | |
| AD8079ARZ-REEL | 量产 | |
| AD8079ARZ-REEL7 | 量产 | |
| AD8079BRZ | 量产 | |
| AD8079BRZ-REEL | 量产 | |
| AD8079BRZ-REEL7 | 量产 | |
