ADRV9029

推荐新设计使用

带有观测路径的集成式四通道RF收发器

数据手册 (Rev. 0)
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 4 个差分变送器
  • 4 个差分接收器
  • 2 个观察接收器，各带 2 个输入
  • 中心频率：75 MHz 至 6000 MHz
  • 完全集成的 DPD 自适应引擎，用于功率放大器的线性化
  • 削峰 (CFR) 引擎
  • 最大接收器带宽：200 MHz
  • 最大变送器大信号带宽：200 MHz
  • 最大变送器合成带宽：450 MHz
  • 最大观察接收器带宽：450 MHz
  • 完全集成的独立小数 N 射频频率合成器
  • 完全集成的时钟频率合成器
  • 适用于所有本地振荡器和基带时钟的多芯片相位同步
  • 支持 TDD 和 FDD 应用
  • 24.33 Gbps JESD204B/JESD204C 数字接口

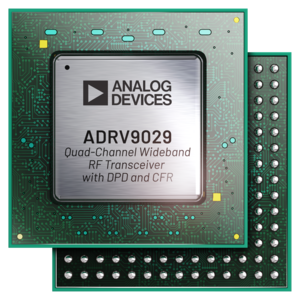

ADRV9029
带有观测路径的集成式四通道RF收发器

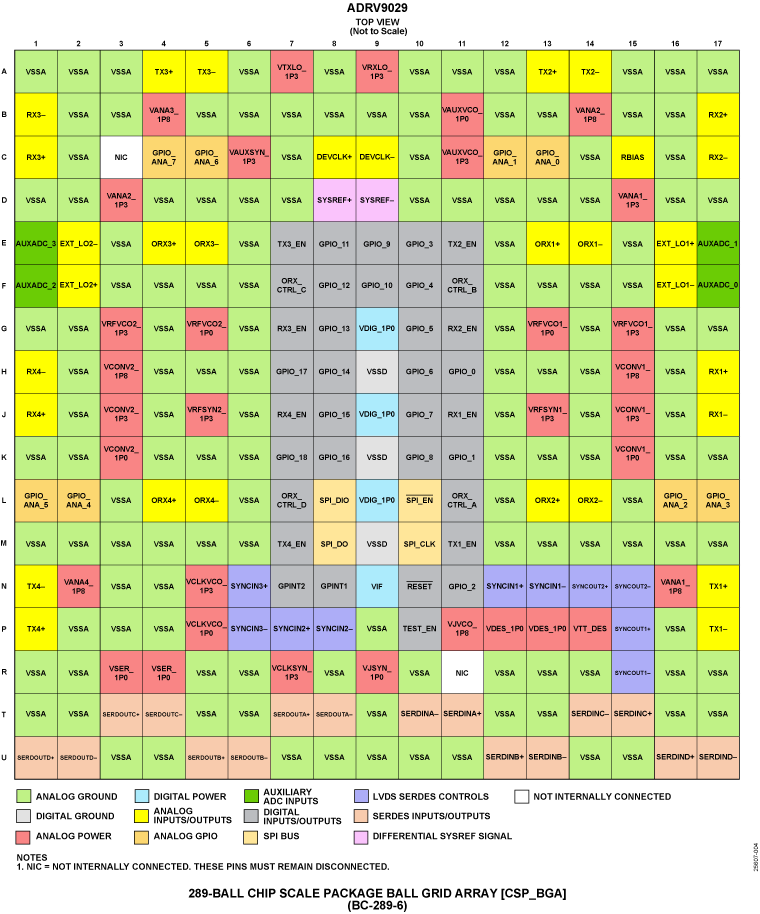

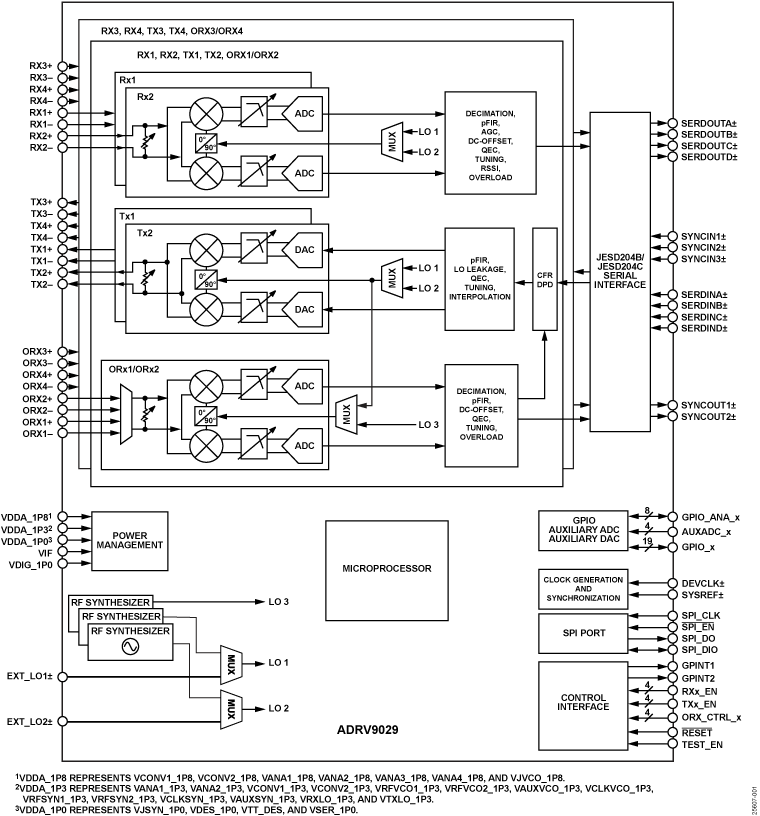

ADRV9029 ADRV9029 Functional Block Diagram ADRV9029 Pin Configuration
