AD5767

量产

16通道、12位电压输出denseDAC

数据手册 (Rev. C)
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 完整的16通道、12位DAC
  • −10 V to +6 V, −12 V to +14 V, −16 V to +10 V, ±5 V and ±10 V
  • −12 V至+14 V、−16 V至+10 V、±5 V和±10 V
  • 集成DAC输出缓冲器，具备±20 mA输出电流能力
  • 4 mm × 4 mm WLCSP和40引脚LFCSP两种封装
  • 集成基准电压缓冲器
  • 2个扰动信号输入引脚
  • 通道监控多路复用器
  • 1.8 V逻辑兼容性
  • 温度范围：-40°C至+105°C
AD5767

16通道、12位电压输出denseDAC

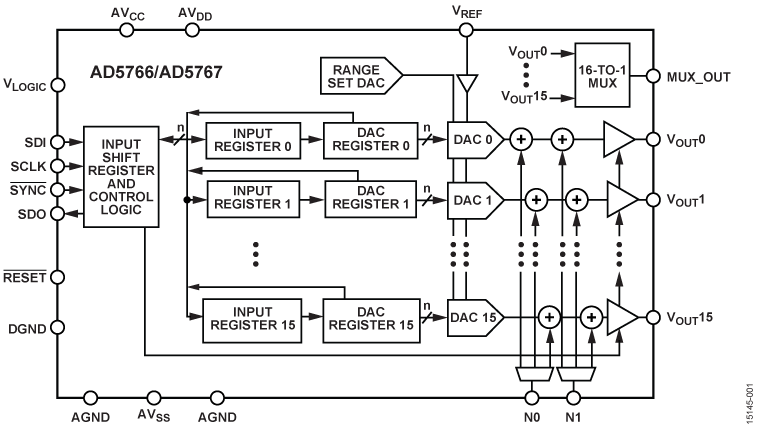

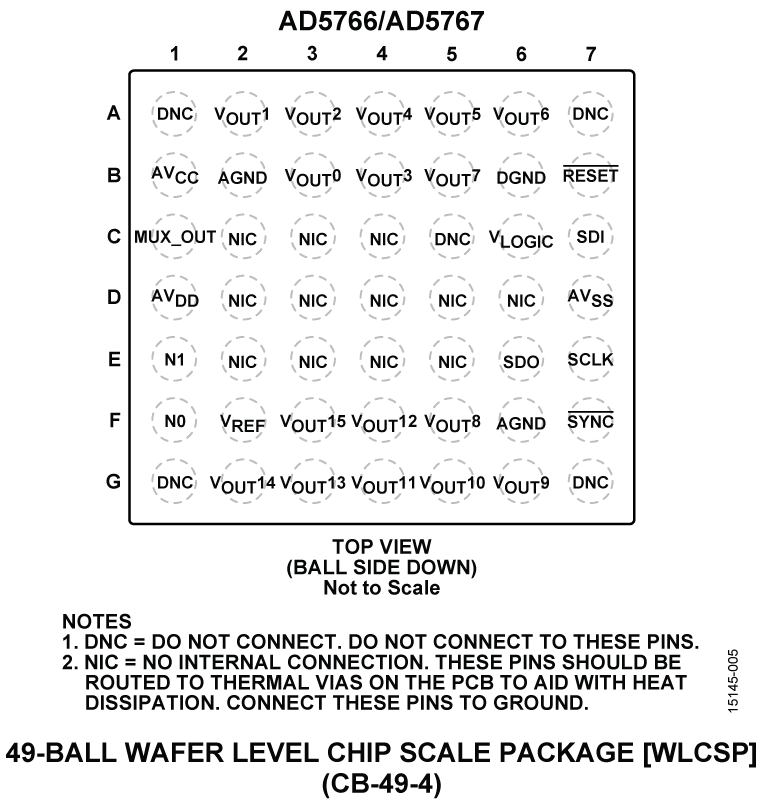

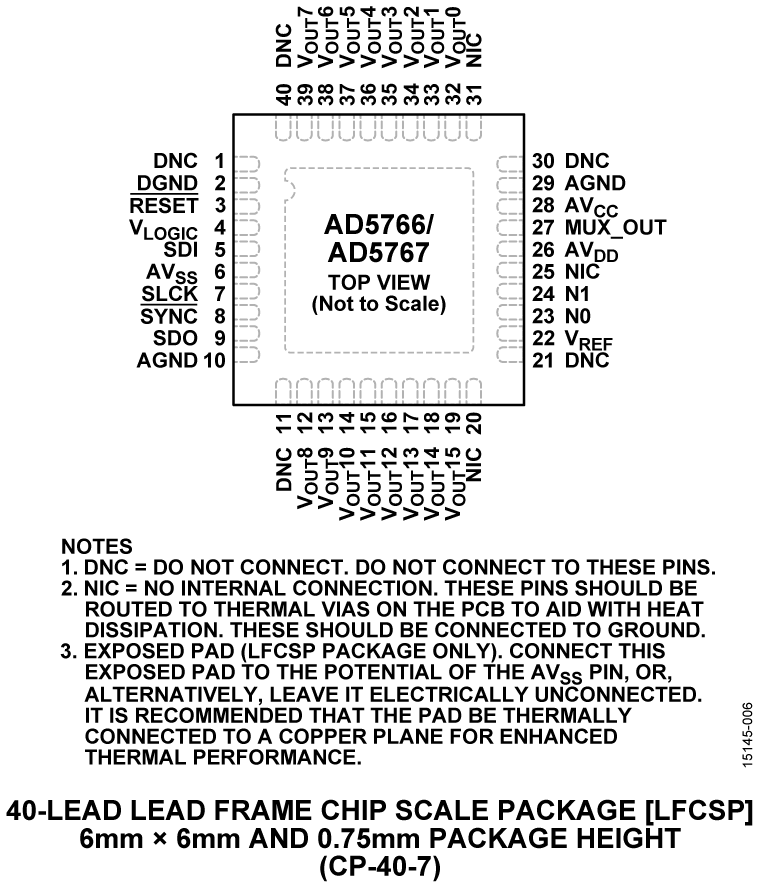

AD5766-5767 Functional Block Diagram AD5766-5767 Pin Configuration AD5766-5767 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

应用笔记 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

精密DAC误差预算工具

精密DAC误差预算工具是一种Web应用程序，用于计算精密DAC信号链的直流精度。它可显示整个信号链中的静态误差状况，以快速评估设计利弊。可计算由基准电压源、运算放大器和精密DAC引起的直流误差。

打开工具

SPICE 模型 1

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-AD5767ARDZ

Evaluating the AD5767, 16-Channel, 12-Bit Voltage Output DenseDACs

立即购买 更多内容

特性和优点

产品详情

The EVAL-AD5766ARDZ/EVAL-AD5767ARDZ are fully featured evaluation boards designed to easily evaluate all features of the AD5766/AD5767 16‑channel, 16-bit/12-bit, voltage output digital-toanalog converters (DACs).

These evaluation boards integrate a power solution using the ADP5071. The ADP5071 switching regulator offers a power solution by generating a bipolar supply of +8 V and −22 V from a +3.3 V input to create a DAC voltage output range of −20 V to +6 V. Alternatively, supplying the DAC with a linear power supply via AVDD_SEL and AVSS_SEL generates all ranges.

The on-board connector, via P6, or the EVALSDP-CK1Z (SDPK1) system demonstration platform (SDP) board, can control the AD5766/AD5767. The SDP-K1 enables the control of the evaluation boards through the USB port of a Windows®-based PC using the AD5766/AD5767 evaluation software, ACE.

The AD5766/AD5767 are 16-channel, 16-bit/12-bit, voltage output denseDAC® converters. The DACs generate output ranges from a 2.5 V reference. Output buffers permit the AD5766/AD5767 to source or sink up to 20 mA.

The AD5766/AD5767 require four power supplies. AVDD and AVSS are the positive and negative high voltage power supplies, AVCC is the analog supply for the low voltage DAC circuitry, and a VLOGIC supply pin sets the logic levels for the digital interface pins.

The ACE Software of the EVAL-AD5766ARDZ/EVALAD5767ARDZ has an intuitive graphical user interface (GUI) for the configuration of AD5766/AD5767 modes of operation. Visit the ACE Software page to view the plug-in modules for the evaluation boards of many other Analog Devices devices.

Complete specifications for the AD5766/AD5767 are available in the AD5766/AD5767 data sheet, which must be consulted in conjunction with this user guide when using the EVAL-AD5766ARDZ/ EVAL-AD5767ARDZ.
EVAL-AD5767ARDZ
Evaluating the AD5767, 16-Channel, 12-Bit Voltage Output DenseDACs

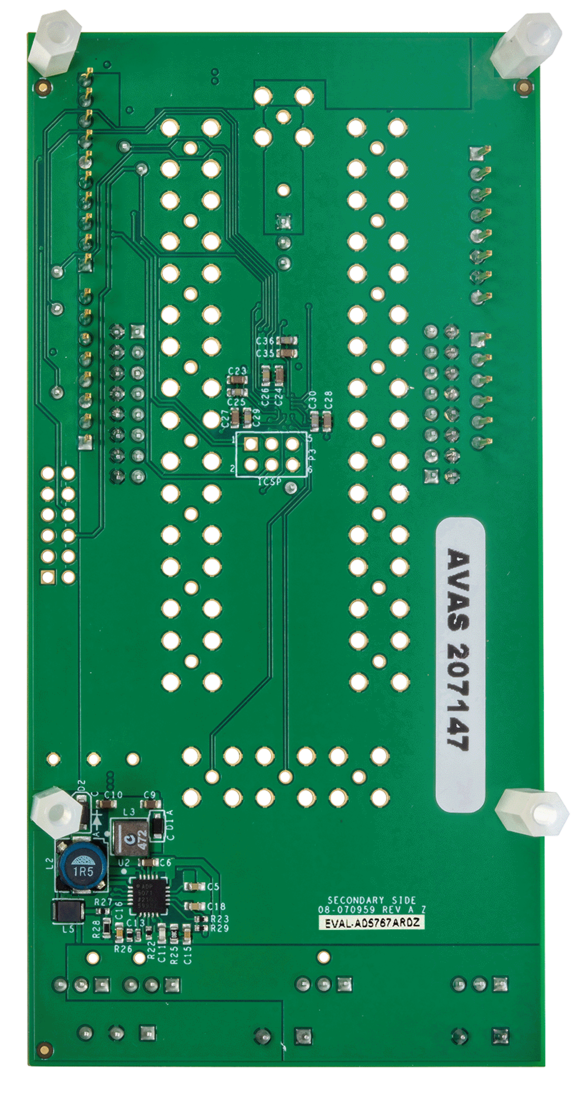

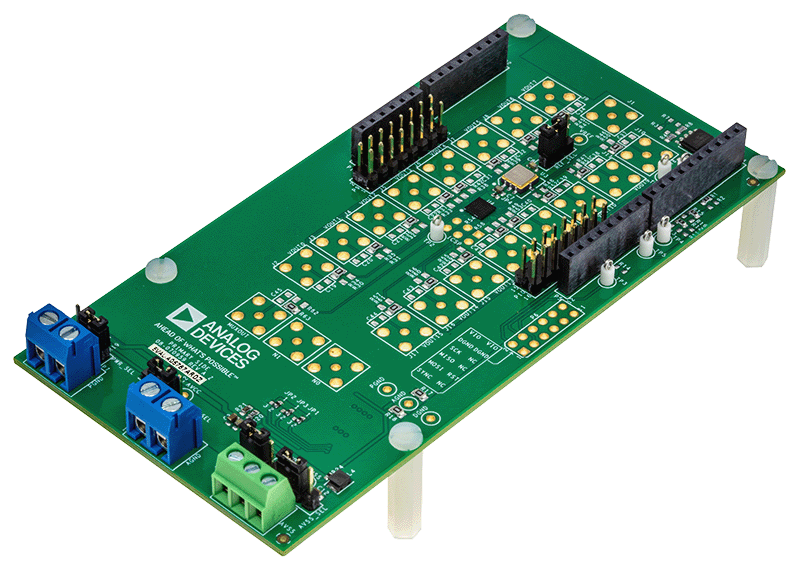

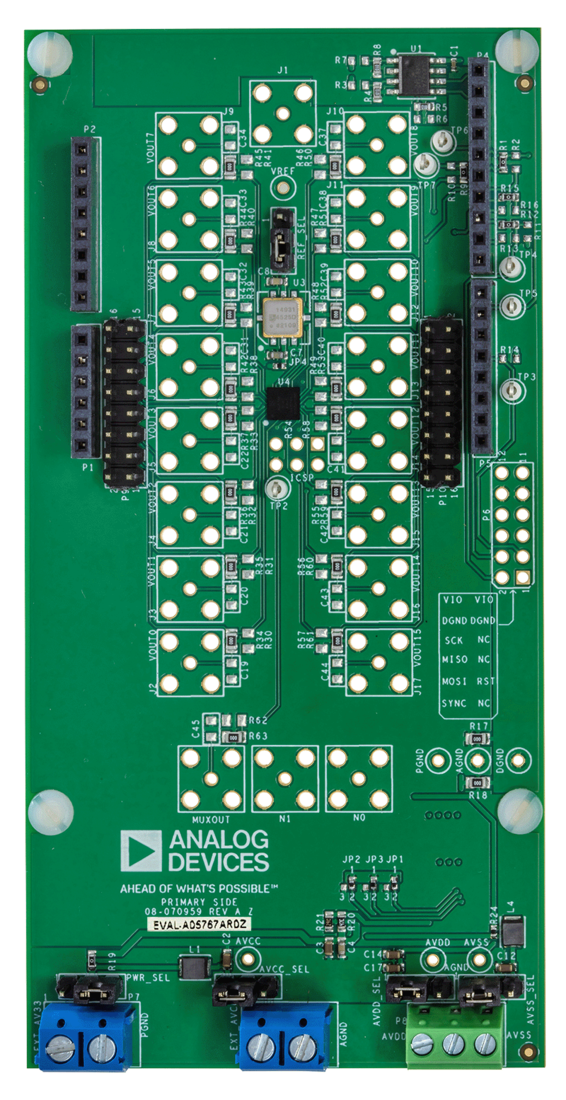

EVAL-AD5767ARDZ Board Photo Angle View EVAL-AD5767ARDZ Board Photo Top View EVAL-AD5767ARDZ Board Photo Bottom View
