MAX17606

量产

副边同步MOSFET驱动器，用于反激转换器

小型封装、高电流副边驱动器，理想用于高功率、隔离型DC-DC反激变换器

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:
  • 产品详情
  • 参考资料
  • 评估套件
  • 参考电路
  • 最新评论
    •

    产品详情

    • 4.5V至36V较宽输入电压
    • 2A/4A最大源出/吸入栅极驱动电流
    • 适合非连续传导模式(DCM)、边界传导模式(BCM)
    • 低静态电流：320μA (典型值)
    • 可编程关断触发点
    • 可编程最小关断时间，以处理DCM振铃
    • 热关断保护
    • 6引脚SOT-23封装
    MAX17606
    副边同步MOSFET驱动器，用于反激转换器
    提问

    参考资料

    数据手册 1

    技术文章 1

    了解更多

    评估套件

    MAX17606SFBEVKIT

    MAX17606评估板

    立即购买 更多内容

    特性和优点

    • 18V至36V直流输入范围
    • 隔离输出：+5V DC，3A
    • 小尺寸设计、高开关频率(200kHz)
    • 效率最高达90%
    • 低成本反激设计
    • 电隔离高达1875VRMS
    • 经过验证的PCB布局
    • 完全装配并经过测试

    产品详情

    MAX17606评估板(EV kit)为完全装配并经过测试的电路板，演示隔离15W同步反激DC-DC转换器的性能。电路使用6引脚、SOT23封装的MAX17606副边同步整流器驱动器，以及16引脚、TQFN封装的MAX17597峰值电流模式反激控制器。

    评估板配置为提供隔离+5V输出电压和高达3A输出电流。评估板的开关频率可设置为200kHz。光耦连同变压器一起，提供输入和输出之间高达1875VRMS的电隔离。

    应用

    • 高效隔离反激转换器
    MAX17606SFBEVKIT
    MAX17606评估板

    参考电路

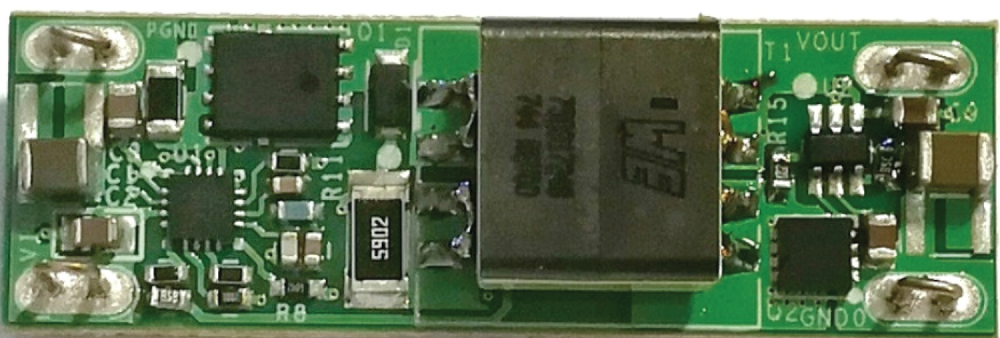

    MAXREFDES1095
    MAXREFDES1095
    MAXREFDES1095 参考设计

    Miniature, 12V/500mA, Synchronous, No-Opto Flyback DC-DC Converter with 92.8% Efficiency Using MAX17690 and MAX17606

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm × 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes1089
    maxrefdes1089
    MAXREFDES1089 参考设计

    Miniature, 12V/250mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.7% Efficiency Using MAX17690 and MAX17606

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range

    maxrefdes1094
    maxrefdes1094
    MAXREFDES1094 参考设计

    Miniature, 12V/500mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.9% Efficiency Using MAX17690 and MAX17606

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes1093
    maxrefdes1093
    MAXREFDES1093 参考设计

    Miniature, 5V/1A, Synchronous, No-Opto Flyback DC-DC Converter with 92% Efficiency Using MAX17690 and MAX17606

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes1191
    maxrefdes1191
    MAXREFDES1191 参考设计

    15W 5V Offline Flyback Converter Using the MAX17595

    查看参考设计详情

    特性和优点

    • Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/Nonisolated Power Supplies
    • 100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
    • Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
    • Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
    • Integrated Protection Features Enhance System Reliability
    • Adjustable Current Limit with External Current Sense Resistor
    • Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
    • Overtemperature Protection
    • Programmable Soft-Start and Slope Compensation
    • Input Overvoltage Protection
    MAXREFDES138
    MAXREFDES138

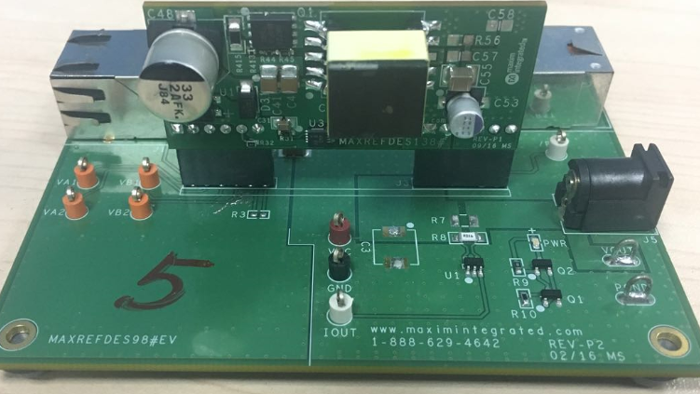

    MAXREFDES138 - Connected to MAXREFDES98 eval board

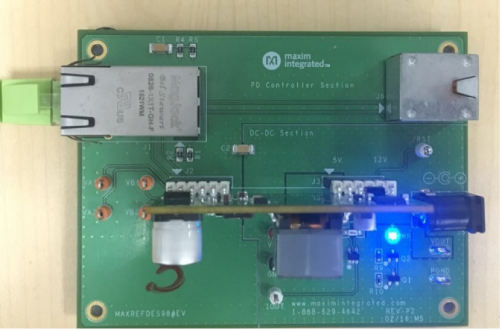

    PWR LED lights up indicating MAXREFDES138 works
    MAXREFDES138 参考设计

    No-Opto Isolated, PoE, 48V to 12V, 12W Flyback Power Supply

    查看参考设计详情

    特性和优点

    • 36V to 57V input voltage
    • Compact and flexible
    • Minimal external components
    • Robust operation in adverse environments
    • 12.5W output capacity
    • ±3% output accuracy
    maxrefdes1092
    maxrefdes1092
    MAXREFDES1092 参考设计

    Miniature, 5V/1A, Synchronous, No-Opto Flyback DC-DC Converter with 91.5% Efficiency

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes1183
    maxrefdes1183
    MAXREFDES1183 参考设计

    3.5W 5V Offline Flyback Converter Using MAX17595

    查看参考设计详情

    特性和优点

    • Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/ Nonisolated Power Supplies
    • 100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
    • Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
    • Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
    • Integrated Protection Features Enhance System Reliability
    • Adjustable Current Limit with External Current Sense Resistor
    • Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
    • Overtemperature Protection
    • Programmable Soft-Start and Slope Compensation
    • Input Overvoltage Protection
    maxrefdes1187
    maxrefdes1187
    MAXREFDES1187 参考设计

    7.5W 5V Offline Flyback Converter Using the MAX17595

    查看参考设计详情

    特性和优点

    • Programmable Switching Frequency Allows Optimization of the Magnetic and Filter Components, Resulting in Compact, Cost-Effective, Efficient Isolated/ Nonisolated Power Supplies
    • 100kHz to 1MHz Programmable Switching Frequency with Optional Synchronization
    • Peak Current Mode Control Provides Excellent Transient Response—Offline (Universal Input AC) and Telecom (36V to 72V) Flyback Controller
    • Programmable Frequency Dithering Enables Low EMI Spread-Spectrum Operation
    • Integrated Protection Features Enhance System Reliability
    • Adjustable Current Limit with External Current Sense Resistor
    • Fast Cycle-By-Cycle Peak Current Limiting Hiccup-Mode Short-Circuit Protection
    • Overtemperature Protection
    • Programmable Soft-Start and Slope Compensation
    • Input Overvoltage Protection
    maxrefdes120
    maxrefdes120
    MAXREFDES120 参考设计

    Isolated 24V to 5V–12.5W No-Opto Flyback Power Supply

    查看参考设计详情

    特性和优点

    Features

    • Functional insulation
    • Compact and flexible
    • Minimal external components
    • Robust operation in adverse industrial environments
    • 5V output at 2.5A
    • ±5% output accuracy

    Competitive Advantages

    • Rapid prototyping
    • Accelerated design time
    • Cool system operation
    maxrefdes119
    maxrefdes119
    maxrefdes119fig01
    MAXREFDES119 参考设计

    Isolated 24V to 5V, 9W No-Opto Flyback Power Supply

    查看参考设计详情

    特性和优点

    • Functional insulation
    • Compact and flexible
    • Minimal external components
    • Robust operation in adverse industrial environments
    • 5V 1.8A with 20% over range current
    • ±5% output accuracy
    maxrefdes1086
    maxrefdes1086
    MAXREFDES1086 参考设计

    Miniature, 5V/500mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.4% Efficiency

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes1087
    maxrefdes1087
    MAXREFDES1087 参考设计

    Miniature, 5V/500mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.4% Efficiency

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes1088
    maxrefdes1088
    MAXREFDES1088 参考设计

    Miniature, 12V/250mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.9% Efficiency Using MAX17690 and MAX17606

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes128fig02
    maxrefdes128fig02
    maxrefdes128fig03
    maxrefdes128fig04
    MAXREFDES128 参考设计

    No-Opto Isolated, PoE, 48V to 5V, 12.5W Flyback Power Supply

    查看参考设计详情

    特性和优点

    • 36V to 57V input voltage
    • Compact and flexible
    • Minimal external components
    • Robust operation in adverse environments
    • 12.5W output capacity
    • ±3% output accuracy

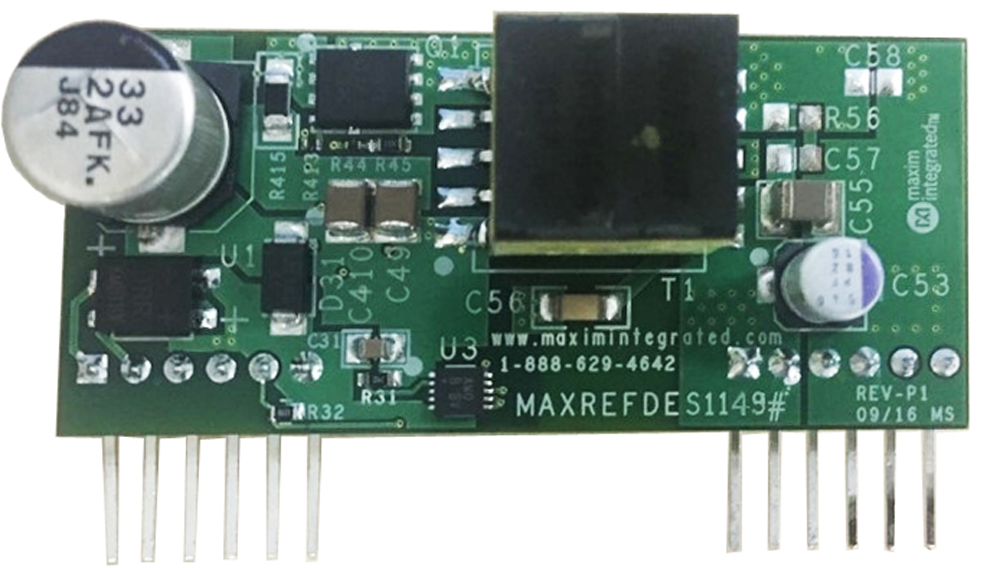

    MAXREFDES1149
    MAXREFDES1149
    MAXREFDES1149 参考设计

    12V/1A、同步、无光隔离PoE DC-DC转换器，使用MAX17690、MAX17606、MAX5969A

    查看参考设计详情

    特性和优点

    • 兼容IEEE® 802.3af/at
    • 2次事件分级
    • 无需肖特基二极管，提供高工作效率、低成本
    • 紧凑布局
    • 峰值效率高于89%
    maxrefdes124fig01
    maxrefdes124fig01
    MAXREFDES124 参考设计

    Isolated 12V to 5.5V 22W No-Opto Flyback Power Supply

    查看参考设计详情

    特性和优点

    Features

    • Functional insulation
    • Compact and flexible
    • Minimal external components
    • 5kV of isolation for medical and other high-isolation applications
    • ±5% output accuracy

    Competitive Advantages

    • Rapid prototyping
    • Accelerated design time
    • Cool system operation
    maxrefdes1148 figure 1
    maxrefdes1148 figure 1
    MAXREFDES1148 参考设计

    MAXREFDES1148: 5V/2.5A, Synchronous, No-Opto Isolated PoE DC-DC Converter Using MAX17690, MAX17606, MAX5969A

    查看参考设计详情

    特性和优点

    • IEEE® 802.3af/at Compliance
    • 2-Event Classification
    • No Schottky-Synchronous Operation for High Efficiency and Reduced Cost
    • Ultra-Compact Layout
    • Peak Efficiency > 88%
    • 3mm × 3mm, 16-Pin TQFN (MAX17690), 6-Lead SOT23 (MAX17606), and Thermally Enhanced, 3mm × 3mm, 10-Pin TDFN (MAX5969A) Packages
    MAXREFDES1002
    MAXREFDES1002
    MAXREFDES1002 参考设计

    6W, Synchronous No-Opto Flyback DC-DC Converter

    查看参考设计详情

    特性和优点

    • No Optocoupler or Third Winding Required
    • 2A/4A Peak Source/Sink Gate Drive Currents
    • 50kHz to 250kHz Programmable Switching Frequency
    • Input EN/UVLO Feature
    • Input Overvoltage Protection
    • Programmable Soft-Start
    • Hiccup-Mode Short-Circuit Protection
    • Thermal Shutdown Protection
    • -40℃ to +125℃ Operating Temperature Range
    • Space-Saving, 3mm x 3mm, 16-Pin TQFN Package
    maxrefdes1176
    maxrefdes1176
    MAXREFDES1176 参考设计

    PoE Powered Device and Synchronous 5V/1.4A No-Opto Flyback DC-DC Converter Using the MAX17690, MAX17606, and MAX5969B

    查看参考设计详情

    特性和优点

    • IEEE® 802.3af/at Compliance
    • Thermally Enhanced, 3mm × 3mm, 10-Pin TDFN Package (MAX5969B)
    • 30V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    MAXREFDES1104
    MAXREFDES1104
    MAXREFDES1104 参考设计

    MAXREFDES1104: Miniature, 5V/2A, Synchronous, No-Opto Flyback DC-DC Converter with 90% Efficiency Using MAX17690 and MAX17606

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes1178 image 1
    maxrefdes1178 image 1
    MAXREFDES1178 参考设计

    PoE Powered Device and Synchronous 12V/600mA No-Opto Flyback DC-DC Converter Using the MAX17690, MAX17606, and MAX5969B

    查看参考设计详情

    特性和优点

    • IEEE® 802.3af/at Compliance
    • Thermally Enhanced, 3mm × 3mm, 10-Pin TDFN Package (MAX5969B)
    • 30V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    maxrefdes1106 image 1
    maxrefdes1106 image 1
    MAXREFDES1106 参考设计

    Miniature, 12V/1A, Synchronous, No-Opto Flyback DC-DC Converter with 92% Efficiency Using MAX17690 and MAX17606

    查看参考设计详情

    特性和优点

    • 4.5V to 60V Input Voltage Range
    • Programmable Switching Frequency from 50kHz to 250kHz
    • Programmable Input Enable/UVLO Feature
    • Programmable Input Overvoltage Protection
    • Adjustable Soft-Start
    • 2A/4A Peak Source/Sink Gate Drive Capability
    • Hiccup Mode Short-Circuit Protection
    • Fast Cycle-by-Cycle Peak Current Limit
    • Thermal Shutdown Protection
    • Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
    • -40°C to +125°C Operating Temperature Range
    MAXREFDES1095
    Miniature, 12V/500mA, Synchronous, No-Opto Flyback DC-DC Converter with 92.8% Efficiency Using MAX17690 and MAX17606
    MAXREFDES1089
    Miniature, 12V/250mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.7% Efficiency Using MAX17690 and MAX17606
    MAXREFDES1094
    Miniature, 12V/500mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.9% Efficiency Using MAX17690 and MAX17606
    MAXREFDES1093
    Miniature, 5V/1A, Synchronous, No-Opto Flyback DC-DC Converter with 92% Efficiency Using MAX17690 and MAX17606
    MAXREFDES1191
    15W 5V Offline Flyback Converter Using the MAX17595
    MAXREFDES138
    No-Opto Isolated, PoE, 48V to 12V, 12W Flyback Power Supply
    MAXREFDES1092
    Miniature, 5V/1A, Synchronous, No-Opto Flyback DC-DC Converter with 91.5% Efficiency
    MAXREFDES1183
    3.5W 5V Offline Flyback Converter Using MAX17595
    MAXREFDES1187
    7.5W 5V Offline Flyback Converter Using the MAX17595
    MAXREFDES120
    Isolated 24V to 5V–12.5W No-Opto Flyback Power Supply
    MAXREFDES119
    Isolated 24V to 5V, 9W No-Opto Flyback Power Supply
    MAXREFDES1086
    Miniature, 5V/500mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.4% Efficiency
    MAXREFDES1087
    Miniature, 5V/500mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.4% Efficiency
    MAXREFDES1088
    Miniature, 12V/250mA, Synchronous, No-Opto Flyback DC-DC Converter with 91.9% Efficiency Using MAX17690 and MAX17606
    MAXREFDES128
    No-Opto Isolated, PoE, 48V to 5V, 12.5W Flyback Power Supply
    MAXREFDES1149
    12V/1A、同步、无光隔离PoE DC-DC转换器，使用MAX17690、MAX17606、MAX5969A
    MAXREFDES124
    Isolated 12V to 5.5V 22W No-Opto Flyback Power Supply
    MAXREFDES1148
    MAXREFDES1148: 5V/2.5A, Synchronous, No-Opto Isolated PoE DC-DC Converter Using MAX17690, MAX17606, MAX5969A
    MAXREFDES1256
    49W DC-DC Flyback Converter Using MAX17597
    MAXREFDES1002
    6W, Synchronous No-Opto Flyback DC-DC Converter
    MAXREFDES1176
    PoE Powered Device and Synchronous 5V/1.4A No-Opto Flyback DC-DC Converter Using the MAX17690, MAX17606, and MAX5969B
    MAXREFDES1104
    MAXREFDES1104: Miniature, 5V/2A, Synchronous, No-Opto Flyback DC-DC Converter with 90% Efficiency Using MAX17690 and MAX17606
    MAXREFDES1178
    PoE Powered Device and Synchronous 12V/600mA No-Opto Flyback DC-DC Converter Using the MAX17690, MAX17606, and MAX5969B
    MAXREFDES1106
    Miniature, 12V/1A, Synchronous, No-Opto Flyback DC-DC Converter with 92% Efficiency Using MAX17690 and MAX17606

    最新评论

    需要发起讨论吗？ 没有关于 MAX17606的相关讨论？是否需要发起讨论？

    在EngineerZone®上发起讨论

    近期浏览

    LTC3890
    RECOMMENDED FOR NEW DESIGNS
    60V Low IQ, Dual, 2-Phase Synchronous Step-Down DC/DC Controller
    MAX6577
    製造中
    SOT温度センサ、周期/周波数出力付
    AD9776A
    製造中
    D/Aコンバータ、12ビット、1.0GSPS、デュアル
    LT3093
    RECOMMENDED FOR NEW DESIGNS
    –20V, 200mA, Ultralow Noise, Ultrahigh PSRR Negative Linear Regulator
    AD9951
    推荐新设计使用
    400 MSPS、14位DAC、1.8 V CMOS直接数字频率合成器
    MAX1951
    製造中
    1MHz、オールセラミック、2.6V～5.5V入力、2A PWMステップダウンDC-DCレギュレータ
    MAX22515
    推荐新设计使用
    具有集成保护功能的IO-Link收发器
