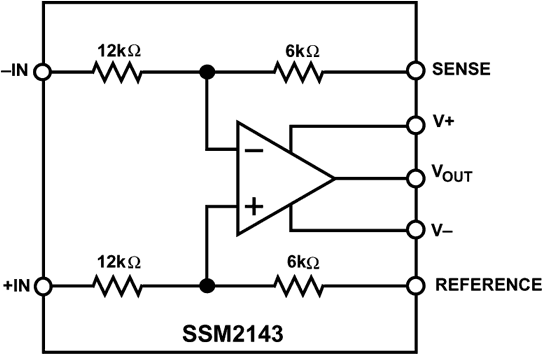

SSM2143

LAST TIME BUY

-6 dB Differential Line Receiver

Data Sheet (Rev. A) Product Selection Table

Part Models: 3
1ku List Price: price unavailable

Viewing:

Part Details

High Common-Mode Rejection
DC: 90 dB typ
60 Hz: 90 dB typ
20 kHz: 85 dB typ
Ultralow THD: 0.0006% typ @ 1 kHz

Fast Slew Rate: 10 V/ms typ
Wide Bandwidth: 7 MHz typ (G = 1/2)
Two Gain Levels Available: G = 1/2 or 2
Low Cost

Part Models: 3
1ku List Price: price unavailable

Documentation

Data Sheet 1

SSM2143: -6 dB Differential Line Receiver Data Sheet (Rev.A) 10/18/2002

Application Note 3

AN-211: The Alexander Current-Feedback Audio Power Amplifier 01/01/2000

AN-349: Keys to Longer Life for CMOS 10/15/2002

AN-938: Digital and Analog Measurement Units for Digital CMOS Microphone Preamplifier ASICs 12/01/2007

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
SSM2143PZ	8-Lead PDIP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
SSM2143SZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
SSM2143SZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
SSM2143PZ	LAST TIME BUY
SSM2143SZ	LAST TIME BUY
SSM2143SZ-REEL	LAST TIME BUY
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
SSM2143PZ	LAST TIME BUY
Nov 23, 2010 - 10_0004 Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor
		PCN10_0004_Form Material_Report ADI0012 Reliability Report
SSM2143SZ	LAST TIME BUY
SSM2143SZ-REEL	LAST TIME BUY

This is the most up-to-date revision of the Data Sheet.
