MAX6226
RECOMMENDED FOR NEW DESIGNSUltra-High-Precision, Ultra-Low-Noise, Series Voltage Reference
Features 3ppm/°C (max) Temperature Coefficients and an Excellent ±0.02% (max) Initial Accuracy
- Part Models
- 6
- 1ku List Price
- Starting From $6.71
Part Details
- 8-pin Hermetically Sealed Ceramic Package Reduces System Board Space
- Ultra-Low 1.45µVP-P Noise (0.1Hz to 10Hz, 2.5V Output)
- Ultra-Low 3ppm/°C (Max) Temperature Coefficient
- ±0.02% (Max) Initial Accuracy
- Wide (VOUT + 200mV) to 12.6V Supply Voltage Range
- Low 200mV (Max) Dropout Voltage
- 380µA Quiescent Supply Current
- 10mA Sink/Source-Current Capability
- Stable with CLOAD = 0.1µF to 10µF
- Low 11ppm/1000hr Long-Term Drift
- 0.05Ω (Max) Load Regulation
- 25µV/V (Max) Line Regulation

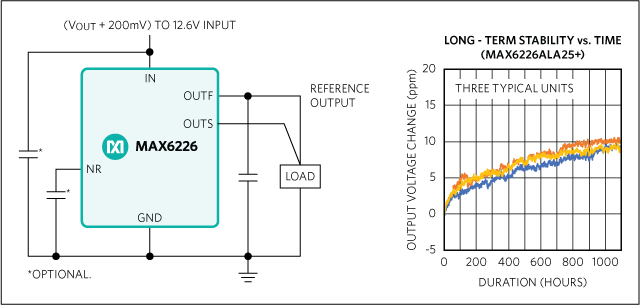

- Force and Sense Outputs for Remote Sensing

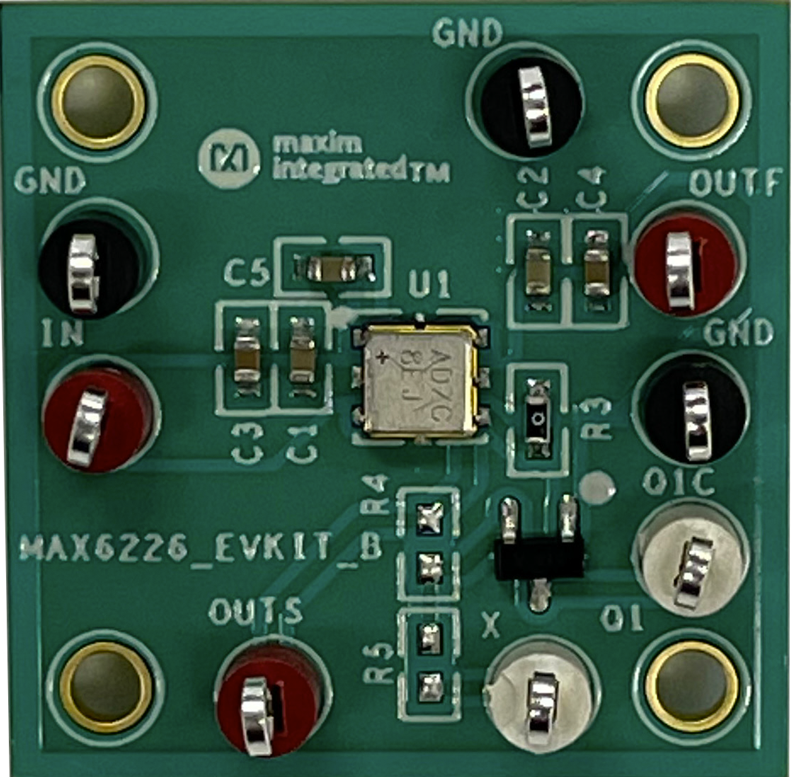

The MAX6226 is an ultra-low-noise, high-precision, low-dropout voltage reference. This family of voltage references feature curvature-correction circuitry and high-stability, laser-trimmed, thin-film resistors that result in 3ppm/°C (max) temperature coefficients and an excellent ±0.02% (max) initial accuracy. The proprietary low-noise reference architecture produces a low flicker noise of 1.45µVP-P and wideband noise as low as 75nV/
(2.5V output) without the increased supply current usually found in low-noise references. Improve wideband noise to 45nV/ and AC power-supply rejection by adding a 0.1µF capacitor at the noise reduction pin. The MAX6226 series mode reference operates from a wide 2.7V to 12.6V supply voltage range and load-regulation specifications are guaranteed to be less than 0.25Ω and 0.05Ω for sink and source currents up to 10mA, respectively. These devices are available over the automotive temperature range of -40°C to +125°C.
The MAX6226 typically draws 380µA of supply current and the output voltages are 2.5V, 3.3V, and 5.0V. The MAX6226 also feature dropout voltages as low as 200mV. Unlike conventional shunt-mode (two-terminal) references that waste supply current and require an external resistor, the MAX6226 offers supply current that is virtually independent of supply voltage and does not require an external resistor.The MAX6226 is stable with 0.1µF to 10µF of load capacitance, and is available in an 8-pin ceramic package.
Applications
- ATE Equipment
- Digital Voltmeters
- High-Accuracy Industrial and Process Control
- High-Accuracy Reference Standard
- High-Resolution A/D and D/A Converters
- Precision Current Sources
Documentation
Data Sheet 1
Technical Articles 1
Video 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX6226ALA25+ | 8-LCC-3.8X3.8X1.48 | ||
| MAX6226ALA25+T | 8-LCC-3.8X3.8X1.48 | ||
| MAX6226ALA33+ | 8-LCC-3.8X3.8X1.48 | ||
| MAX6226ALA33+T | 8-LCC-3.8X3.8X1.48 | ||
| MAX6226ALA50+ | 8-LCC-3.8X3.8X1.48 | ||
| MAX6226ALA50+T | 8-LCC-3.8X3.8X1.48 |
