LTC2054

PRODUCTION

Single Micropower Zero-Drift Operational Amplifiers

Data Sheet

Part Models: 16
1ku List Price: Starting From $1.32

Viewing:

Part Details

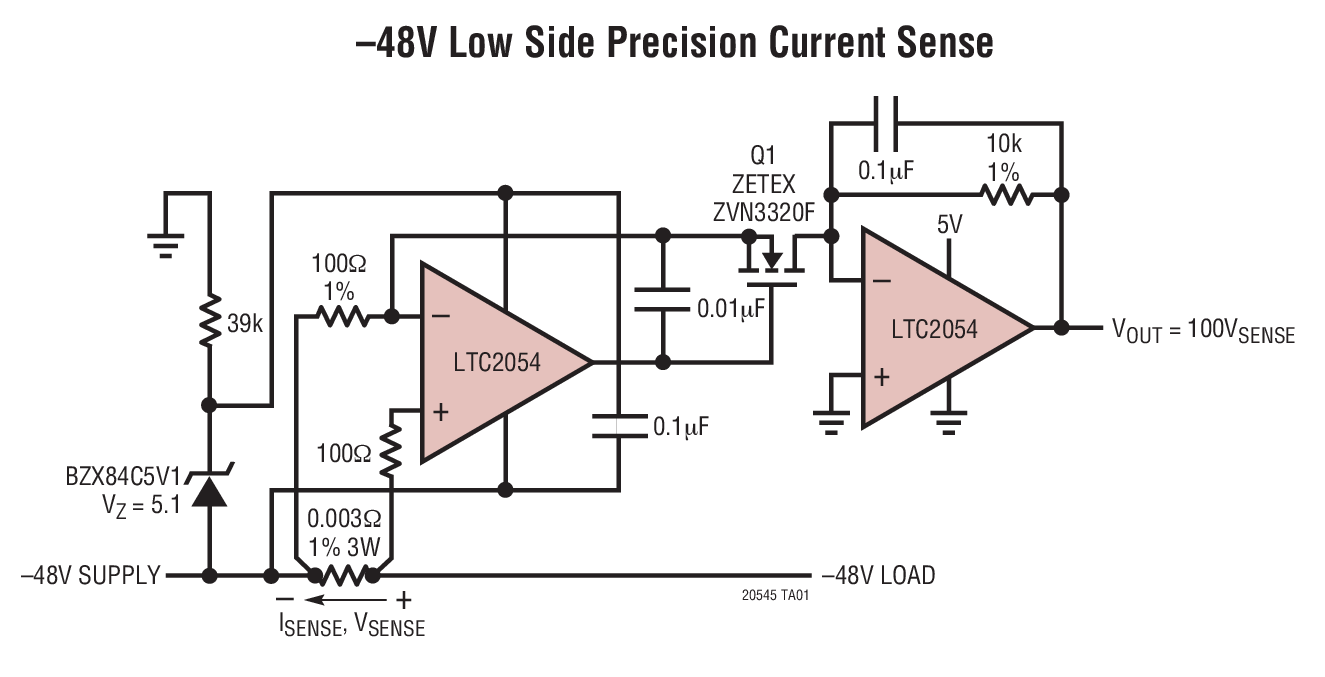

Supply Current 150μA (Max per Amplifier)
Guaranteed from –40°C to 85°C

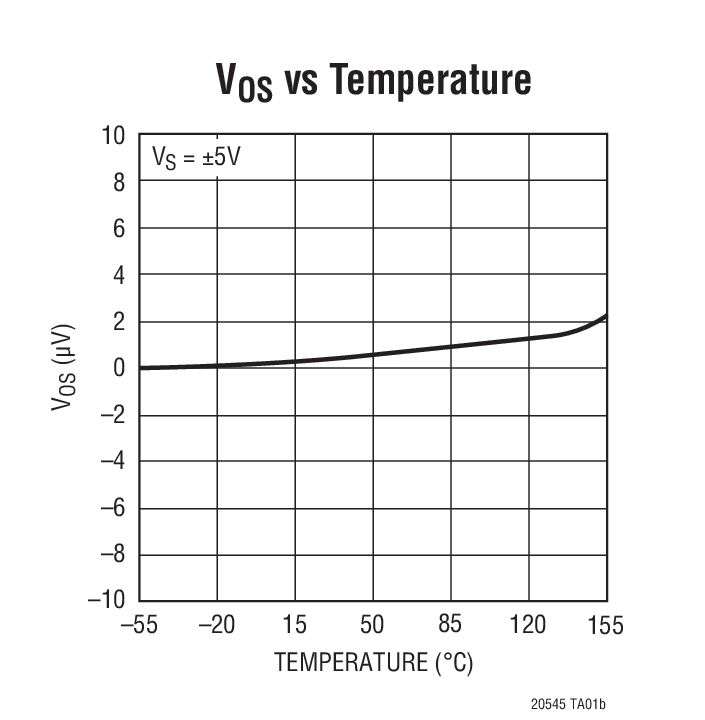

Offset Voltage 3μV (Max, –40°C to 85°C)
Offset Voltage Drift 30nV/°C (Max, –40°C to 85°C)
Guaranteed Specifications from –55°C to 150°C (LTC2054MP)
Common Mode Input Range from V^– to V⁺ – 0.5V
Output Swings Rail-to-Rail
Voltage Gain: 140dB (Typ)
PSRR and CMRR: 130dB (Typ)
Input Bias Current: 1pA (Typ, 25°C)
Noise: 1.6μV_P-P (0.01Hz to 10Hz Typ)
Supply Operation:
- 2.7V to 6V (LTC2054/LTC2055)
- 2.7V to ±5.5V (LTC2054HV/LTC2055HV)

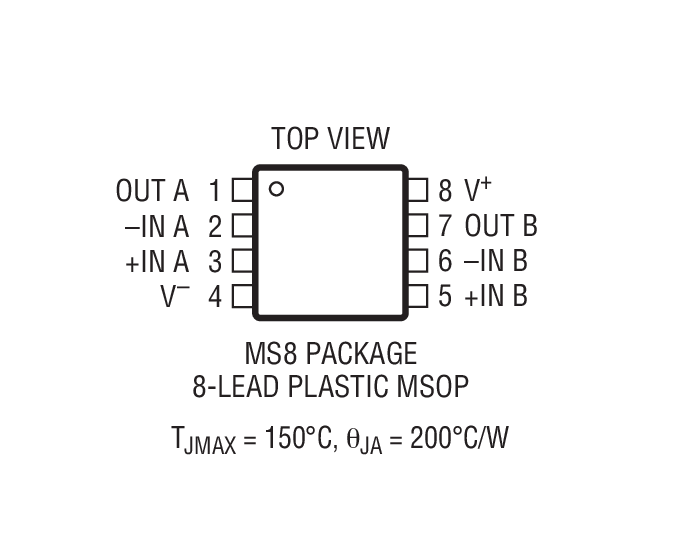

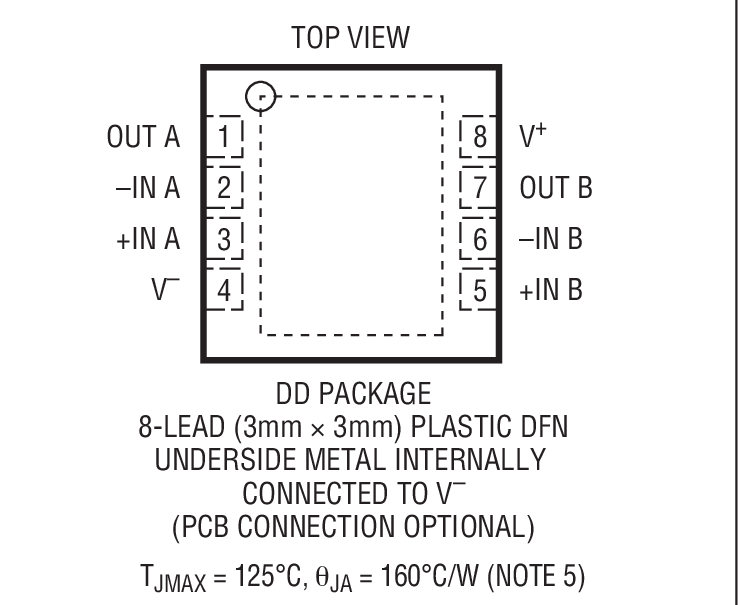

Low Profile (1mm) SOT-23, MS8 and 3mm × 3mm × 0.8mm DFN Packages

Part Models: 16
1ku List Price: Starting From $1.32

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

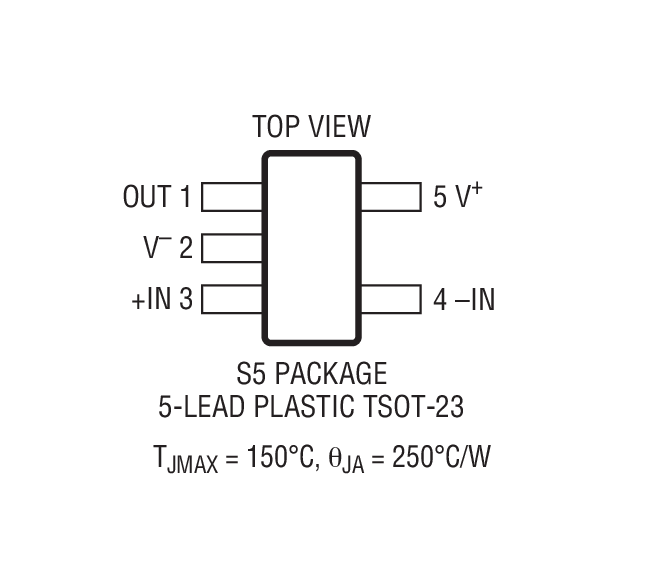

LTC2054CS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054CS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HVCS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HVCS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HVHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HVHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HVIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HVIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HVMPS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054HVMPS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054IS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054IS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054MPS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2054MPS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
