MAX6071

PRODUCTION

Low-Noise, High-Precision Series Voltage References

Highest Performance SOT23 Voltage References with 6ppm/°C Maximum Temperature Coefficient

Data Sheet (Rev. 19)

Part Models: 38
1ku List Price: Starting From $1.22

Viewing:

Part Details

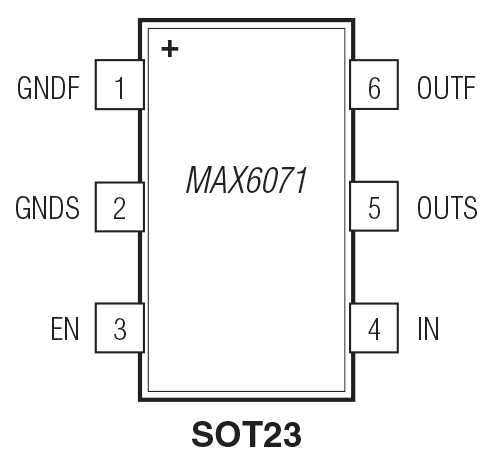

6-Pin SOT23 Package Reduces System Board Space
Stable Performance Over Temperature and Time Improves System Accuracy
- High ±0.04% Initial Accuracy
- Low 1.5ppm/°C (typ), 6ppm/°C (max, A grade) Temperature Drift
- Low 4.8µV_P-P Noise (0.1Hz to 10Hz) at 2.5V
- Low 200mV Dropout Voltage
- High 85dB Ripple Rejection
Low 150µA Supply Current Reduces Power Consumption
Filter Option Lowers High-Frequency Noise
Output Options: 1.25V, 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V Cover Common Voltage Levels for a Wide Variety of Applications
0.78mm x 1.41mm WLP with 0.35mm Bump Spacing
AEC-Q100 Qualified (Refer to Ordering Information)

Part Models: 38
1ku List Price: Starting From $1.22

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX6071AAUT12+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT12+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT18+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT18+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT21+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT21+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT25+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT25+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT30+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT30+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT30/V+	6-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT30/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT33+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT33+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT41+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT41+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT50+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071AAUT50+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071ANT25+	6-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071ANT25+T	6-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT12+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT12+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT18+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT18+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT21+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT21+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT25+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT25+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT25/V+	6-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT25/V+T	6-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT30+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT30+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT33+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT33+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT41+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT41+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT50+	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX6071BAUT50+T	Small-Outline Transistor Package	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 26, 2020 - 2037_AMENDED ASSEMBLY
		pcn_2037_amended
MAX6071AAUT12+	PRODUCTION
MAX6071AAUT12+T	PRODUCTION
MAX6071AAUT18+	PRODUCTION
MAX6071AAUT18+T	PRODUCTION
MAX6071AAUT21+	PRODUCTION
MAX6071AAUT21+T	PRODUCTION
MAX6071AAUT25+	PRODUCTION
MAX6071AAUT25+T	PRODUCTION
MAX6071AAUT30+	PRODUCTION
MAX6071AAUT30+T	PRODUCTION
MAX6071AAUT33+T	PRODUCTION
MAX6071AAUT41+	PRODUCTION
MAX6071AAUT41+T	PRODUCTION
MAX6071AAUT50+	PRODUCTION
MAX6071AAUT50+T	PRODUCTION
MAX6071BAUT12+	PRODUCTION
MAX6071BAUT12+T	PRODUCTION
MAX6071BAUT18+T	PRODUCTION
MAX6071BAUT21+	PRODUCTION
MAX6071BAUT21+T	PRODUCTION
MAX6071BAUT25+	PRODUCTION
MAX6071BAUT25+T	PRODUCTION
MAX6071BAUT30+	PRODUCTION
MAX6071BAUT30+T	PRODUCTION
MAX6071BAUT33+	PRODUCTION
MAX6071BAUT33+T	PRODUCTION
MAX6071BAUT41+	PRODUCTION
MAX6071BAUT41+T	PRODUCTION
MAX6071BAUT50+	PRODUCTION
MAX6071BAUT50+T	PRODUCTION
Apr 16, 2020 - 2037A ASSEMBLY
		pcn_2037a
MAX6071AAUT12+T	PRODUCTION
MAX6071AAUT30+T	PRODUCTION
MAX6071BAUT25+T	PRODUCTION
MAX6071BAUT30+T	PRODUCTION
Mar 31, 2020 - 2037N ASSEMBLY
		pcn_2037n
MAX6071AAUT18+	PRODUCTION
MAX6071AAUT18+T	PRODUCTION
MAX6071AAUT25+	PRODUCTION
MAX6071AAUT25+T	PRODUCTION
MAX6071AAUT33+T	PRODUCTION
MAX6071AAUT41+	PRODUCTION
MAX6071AAUT41+T	PRODUCTION
MAX6071AAUT50+	PRODUCTION
MAX6071AAUT50+T	PRODUCTION
MAX6071BAUT12+	PRODUCTION
MAX6071BAUT12+T	PRODUCTION
MAX6071BAUT18+T	PRODUCTION
MAX6071BAUT21+	PRODUCTION
MAX6071BAUT21+T	PRODUCTION
MAX6071BAUT33+	PRODUCTION
MAX6071BAUT33+T	PRODUCTION
MAX6071BAUT41+	PRODUCTION
MAX6071BAUT41+T	PRODUCTION
MAX6071BAUT50+	PRODUCTION
MAX6071BAUT50+T	PRODUCTION
Apr 8, 2021 - 2026 ASSEMBLY
		pcn_2026
MAX6071AAUT30/V+	PRODUCTION
MAX6071AAUT30/V+T	PRODUCTION
MAX6071BAUT25/V+	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
