MAX4474

PRODUCTION

Single/Dual/Quad, +1.8V/750nA, SC70, Rail-to-Rail Op Amps

Sub-µA (750nA) Op Amp Extends Battery Life

Data Sheet (Rev. 4)

Part Models: 3
1ku List Price: Starting From $1.46

Viewing:

Part Details

Ultra-Low 750nA Supply Current Per Amplifier
Ultra-Low +1.8V Supply Voltage Operation
Ground-Sensing Input Common-Mode Range
Outputs Swing Rail-to-Rail
Outputs Source and Sink 11mA of Load Current
No Phase Reversal for Overdriven Inputs
High 120dB Open-Loop Voltage Gain
Low 500µV Input Offset Voltage
9kHz Gain-Bandwidth Product (MAX4470/MAX4471/MAX4472)
40kHz Gain-Bandwidth Product (MAX4464/MAX4474)
250pF (min) Capacitive Load Capability

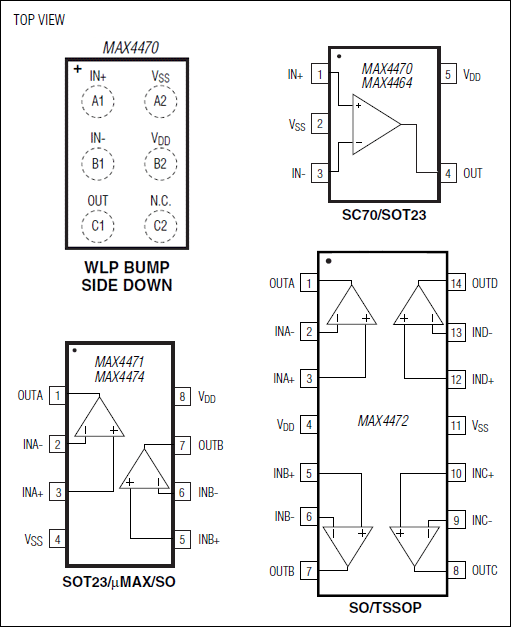

Available in Tiny, 6-Bump WLP, 5-Pin SC70, and 8-Pin SOT23 Packages

Part Models: 3
1ku List Price: Starting From $1.46

Documentation

Data Sheet 1

MAX4464-MAX4474: Single/Dual/Quad, +1.8V/750nA, SC70, Rail-to-Rail Op Amps Data Sheet (Rev.4) 08/09/2011

Technical Articles 1

Analog ICs for Low Voltage Systems 03/23/2006

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX4474EKA+	8-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX4474EKA+T	8-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX4474ESA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 30, 2020 - 1702R2 ASSEMBLY
		pcn_1702r2
MAX4474ESA+	PRODUCTION	pcn_1702r2

This is the most up-to-date revision of the Data Sheet.
