MAX4444

PRODUCTION

Ultra-High-Speed, Low-Distortion, Differential-to-Single-Ended Line Receivers with Enable

Data Sheet (Rev. 0)

Part Models: 3
1ku List Price: Starting From $3.83

Viewing:

Part Details

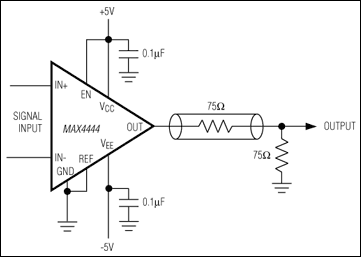

5000V/µs Slew Rate (MAX4444)
+2V/V Internally Fixed Gain (MAX4444)
External Gain Selection (MAX4445, A_VCL ≥ +2V/V)
550MHz -3dB Bandwidth
-60dB SFDR at 5MHz
Low Differential Gain/Phase: 0.07%/0.05°
Low Noise: 25nV/ at f_IN = 100kHz
Low-Power Disable Mode Reduces Quiescent Current to 3.5mA

Part Models: 3
1ku List Price: Starting From $3.83

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX4444ESE+	16-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX4444ESE+T	16-SOIC_N-150_MIL	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX4444ESE/GG8	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

SPICE Model 2

Evaluation Kits

Evaluation Kit for the MAX4444 and MAX4445

Buy Now View Details

Features and Benefits

500MHz Full-Power Bandwidth
5000V/µs Slew Rate
Proven PC Board Layout
Fully Assembled and Tested Surface-Mount Board

Product Details

The MAX4444 evaluation kit (EV kit) simplifies evaluation of the MAX4444 ultra-fast differential line receiver. The EV kit includes the MAX4444, which has a fixed gain of +2V/V. This EV kit can also be used to evaluate the adjustable-gain MAX4445, which is stable with a minimum gain of +2V/V. To evaluate the MAX4445, order a free sample of the MAX4445ESE along with the MAX4444 EV kit.

Applications

Data Acquisition
Differential to Single-Ended Conversion
High-Speed Differential Line Receiver
High-Speed Instrumentation Amplifier
Medical Instrumentation
Twisted-Pair to Coaxial Converter
